DC-DC STEP DOWN LM2596 6V - 40V TO 5V 3A DUAL USB OUTPUT CHARGER MODULE

Detail DC-DC STEP DOWN LM2596 6V - 40V TO 5V 3A DUAL USB OUTPUT CHARGER MODULE

 PSU-0135
========


Deskripsi:
=================================

Power supply adjustable step down DUAL USB yang memiliki efisiensi hingga 92%.
Cocok untuk project agan. Tegangan input sebesar 6-40V bisa menjadi 5V dengan
arus maksimal 3A. Biasa dipake sebagai charger HP, charger PSP, POWERBANK dll :D


mari di ORDER!!!!


Fitur & Spesifikasi:
=================================
- Efisiensi : Up to 92% (makin besar tegangan output, efisiensinya makin besar
juga)
- Frekuensi switching: 150KHz
- Rectifier: Non-Synchronous Rectification
- Module Properties: Non-isolated step-down module (buck)
- Short circuit protection: current limiting, since the recovery
- Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or
less)
- Full load temperature rise: 40
- Load regulation: 0.5%
- Voltage regulation: 2.5%
- Tegangan Input : 6-40V
- Tegangan Output: 5V
- Arus Output : Rated current is 2A,maximum 3A(Additional heatsink is required)

Paket :
=================================
- 1x DC-DC STEP DOWN LM2596 6V - 40V TO 5V 3A DUAL USB OUTPUT CHARGER MODULE

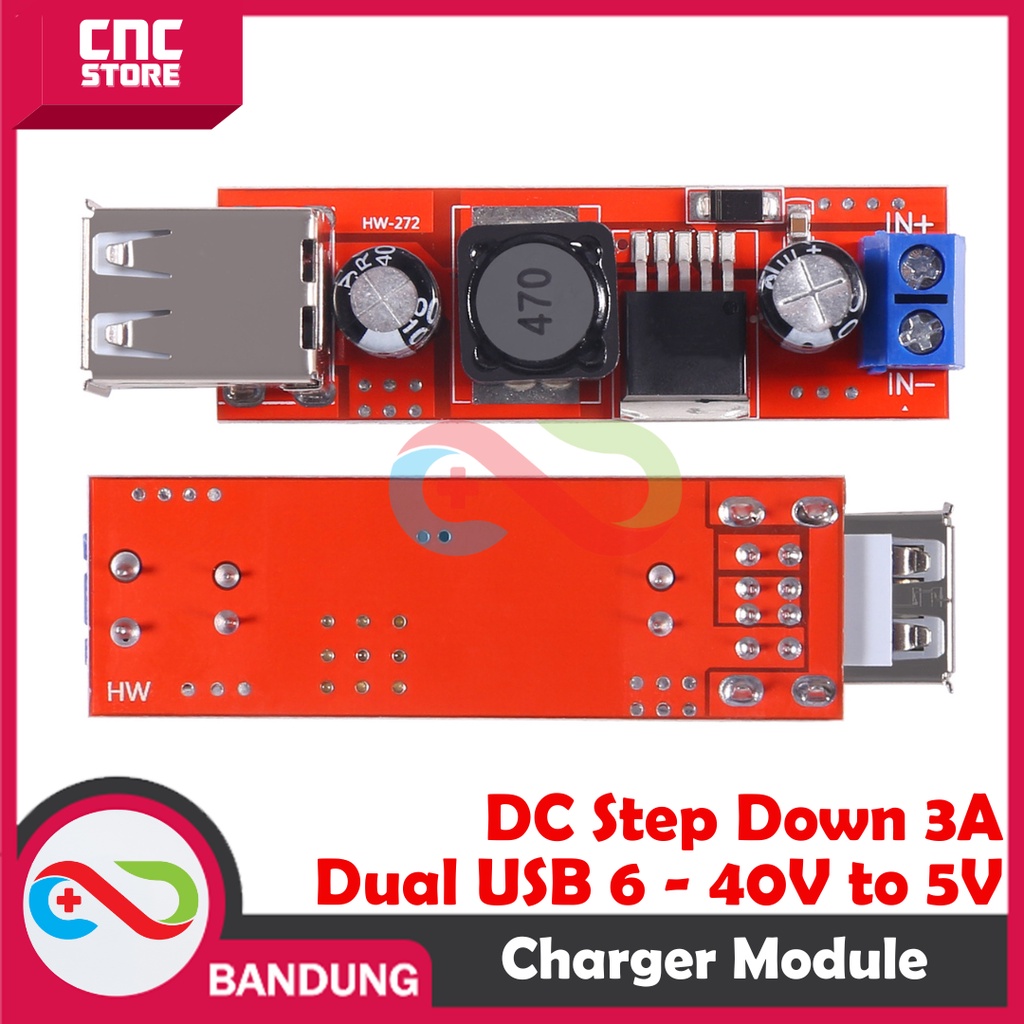

Gambar produk
