DC DC Step Down 12A 100W Buck Converter Modul Penurun Tegangan PR15

Detail DC DC Step Down 12A 100W Buck Converter Modul Penurun Tegangan PR15

DC DC Step Down 12A 100W Buck Converter Modul Penurun Tegangan
12A 100W DC-DC STEP-DOWN NON-ISOLATED MODULE (Penurun Tegangan) - PR15

** Info Specs :
- INPUT : 4.5-30V
- Output : 0.8-30V (Default : 5V)
- Output Current : 0-12A 100W (up to 200W with extra heat dissipation).
- Operating temperature: -40 to + 85
- Operating frequency: 300KHz
- Conversion efficiency: up to 95% (efficiency of input and output voltage, current, pressure related).
- Short circuit protection: YES (limit current 14A)
- Try not to short circuit
- Overtemperature protection: (automatically shut off the output after overtemperature).
- Input Reverse Polarity Protection: None (if necessary please enter the string into the diode).
- Installation: four 3mm screws
- Connection: Terminals, solderless, V-IN is the input, V-OUT output, with the housing module wire output.
- Module dimensions: length 60mm width 51mm height 22mm

** Actual Data:
Input 12V Output 5V / 10A, efficiency 81%
Input 12V Output 5V / 6A, efficiency 86%
Input 24V output 12V / 8A, efficiency 91%
Input 24V output 19V / 6A, efficiency 94%

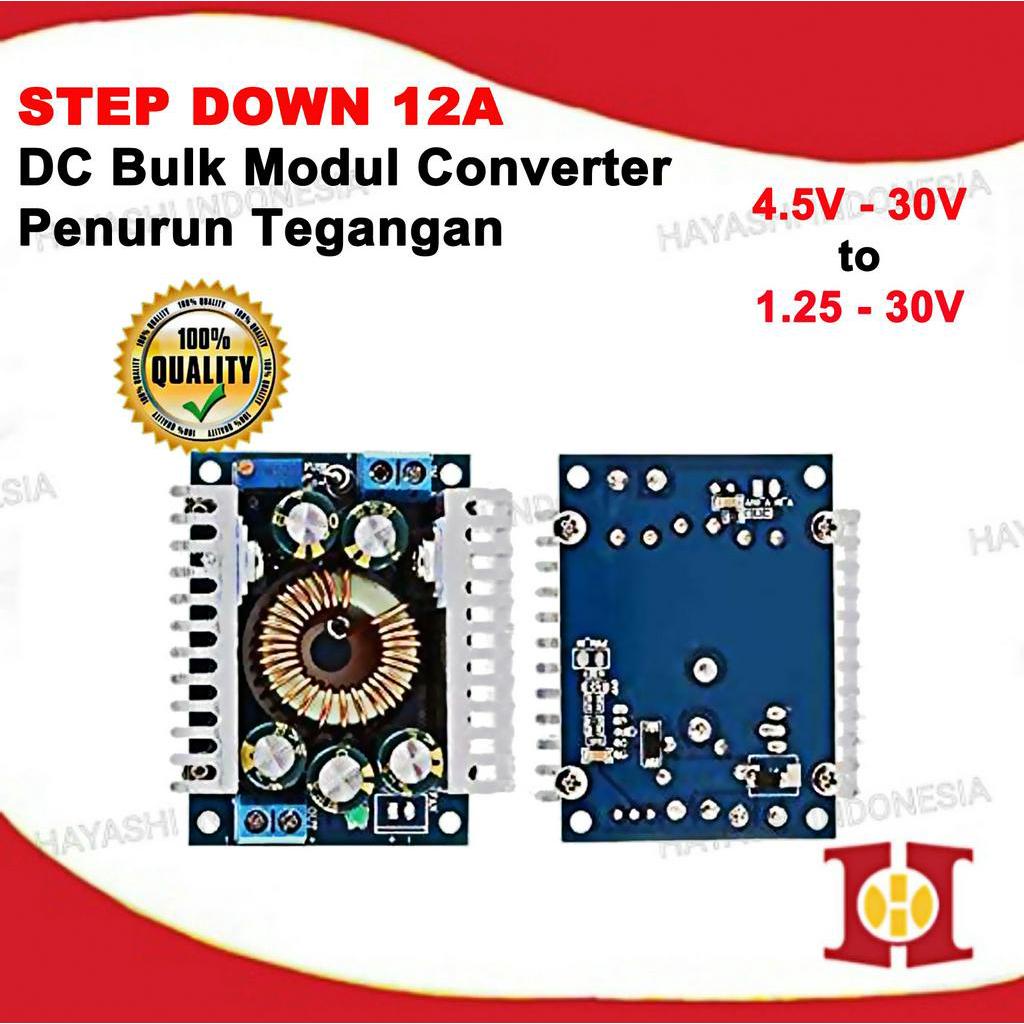

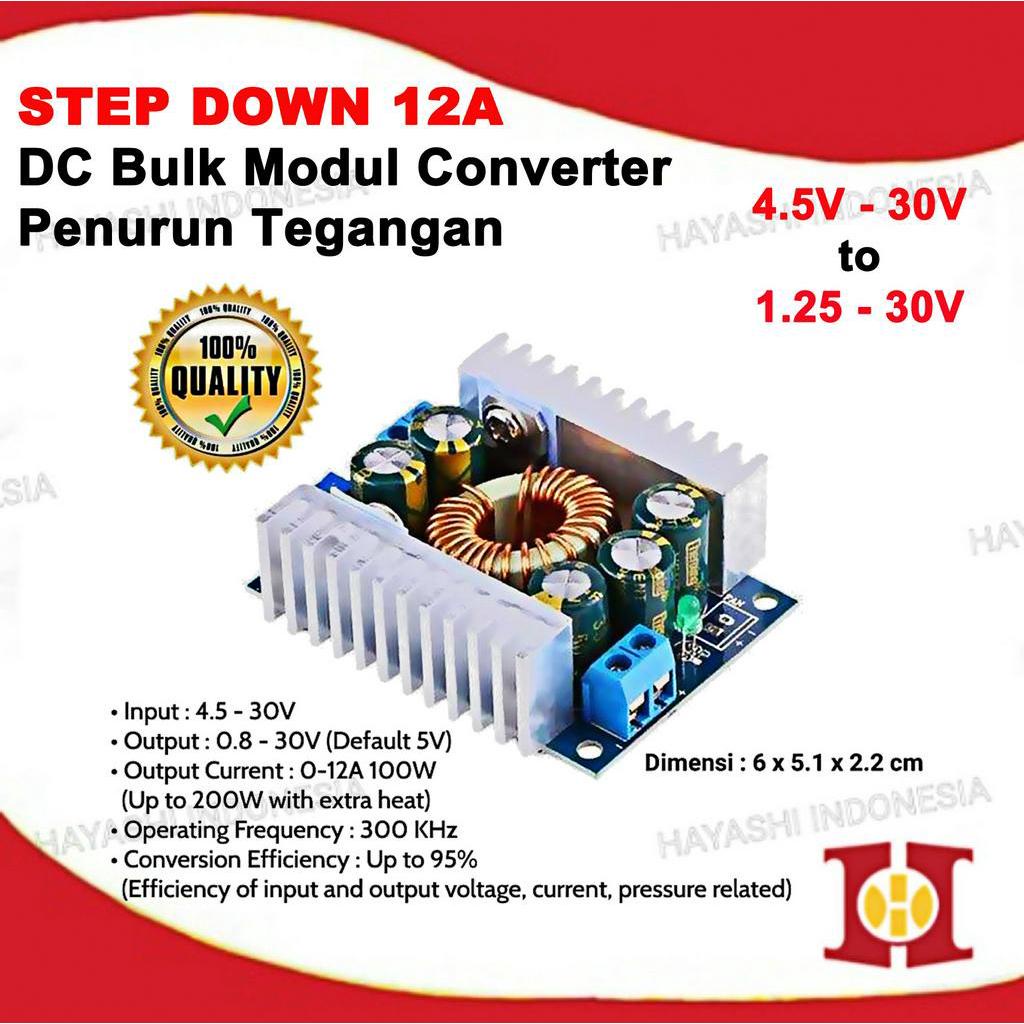

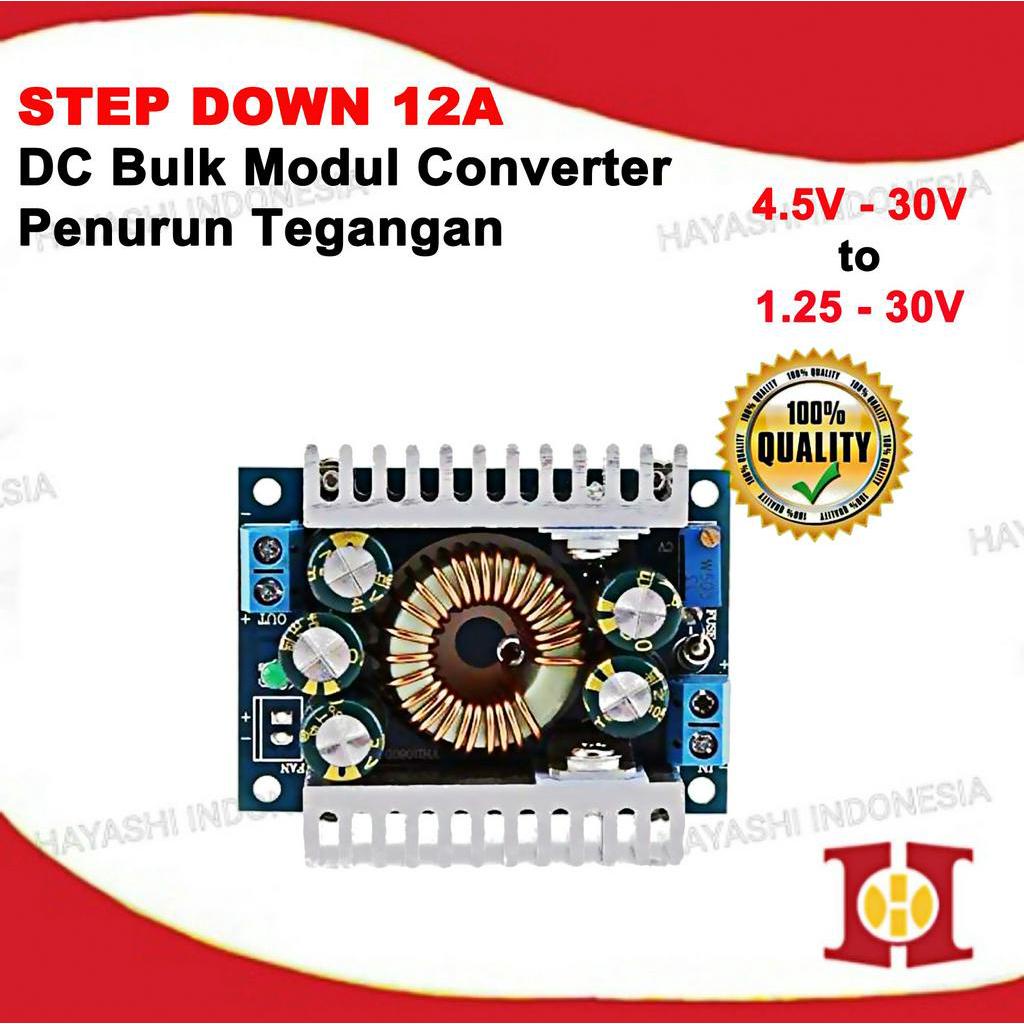

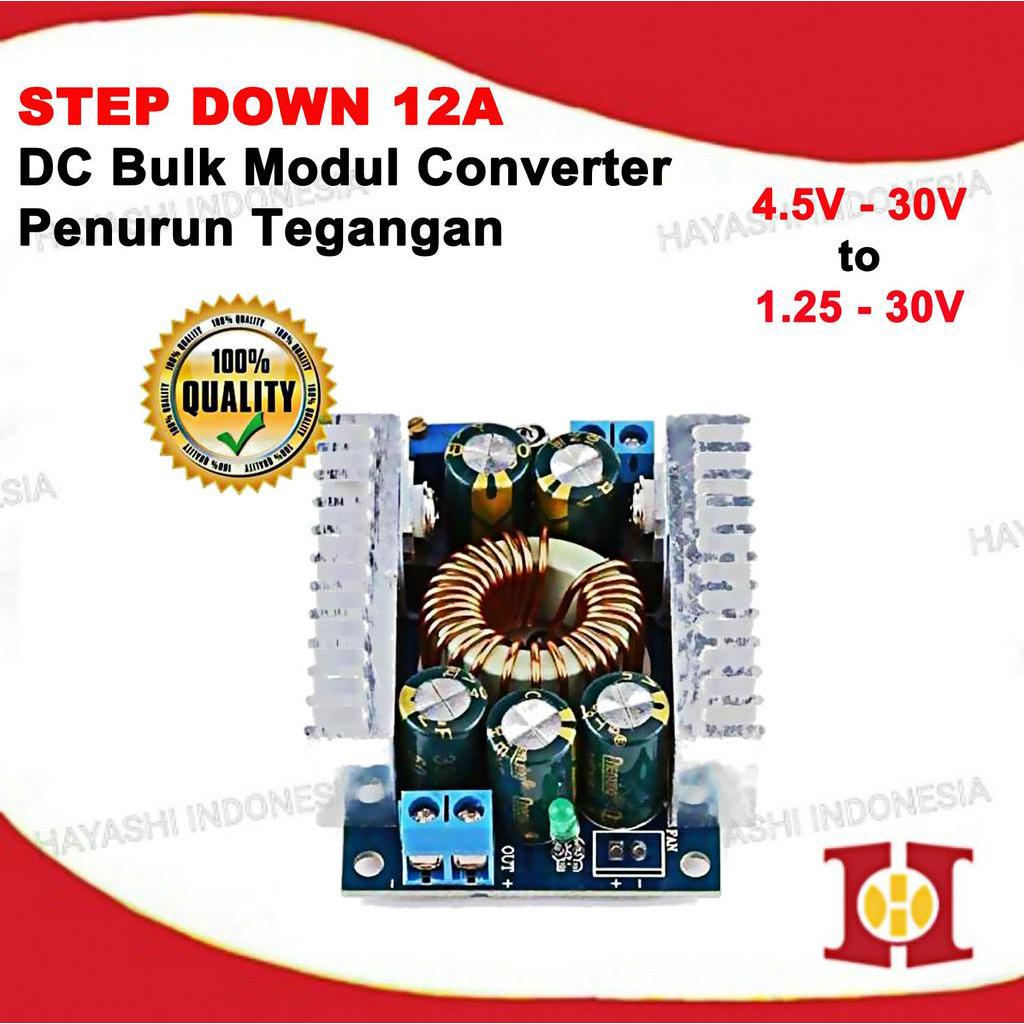

Gambar produk
