DC-DC high voltage boost ZVS capacitor 45-390V 780V adjustable 5A (780)

Detail DC-DC high voltage boost ZVS capacitor 45-390V 780V adjustable 5A (780)

DC-DC high voltage boost ZVS capacitor 45-390V 780V adjustable 5A(780)

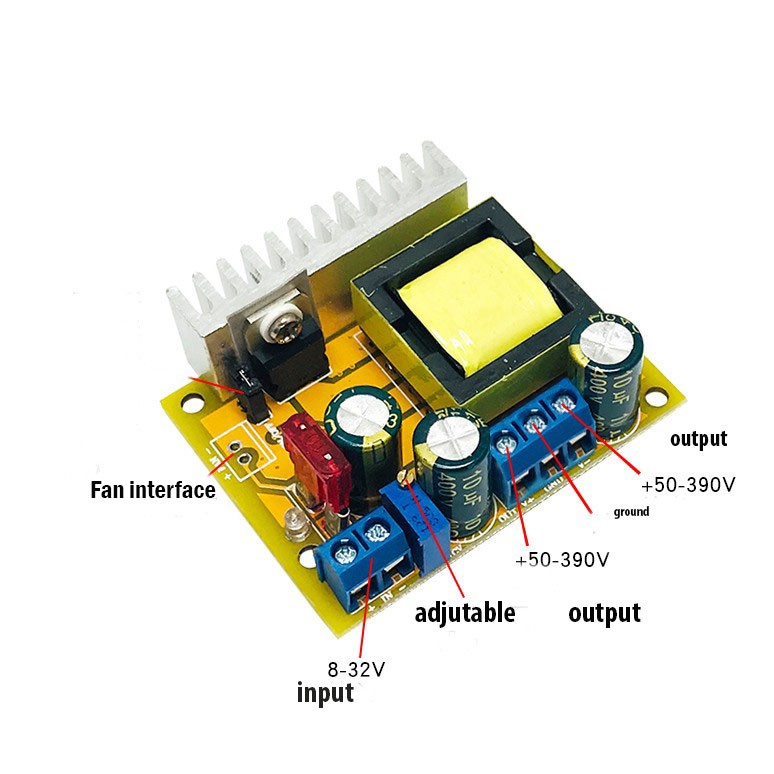

Module parameters:

Module name: high voltage boost module

Module nature: non-isolated boost module

Input voltage: Two input voltage ranges are optional, (selected by the jumper on the back of the PCB, the shipping default is 10-32V input)

　 1. 8-16V input (for three-string lithium battery and 12V battery applications)

2. 10-32V input (for wide input voltage range applications)

Input current: 5A (MAX)

Static operating current: 15mA (when 12V rises to 50V, the higher the output voltage, the static current will increase)

Output voltage: 1, 45-390V continuously adjustable.

2. ±45 ±390V continuously adjustable.

This module has a voltage stabilization function, the output voltage is not stable after adjustment, and does not change with the change of the input voltage

Output current: 0.2A MAX (related to the input and output voltage difference, the higher the output voltage, the smaller the output current)

Output power: 40W (peak 70W)

Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)

Working frequency: 75KHz

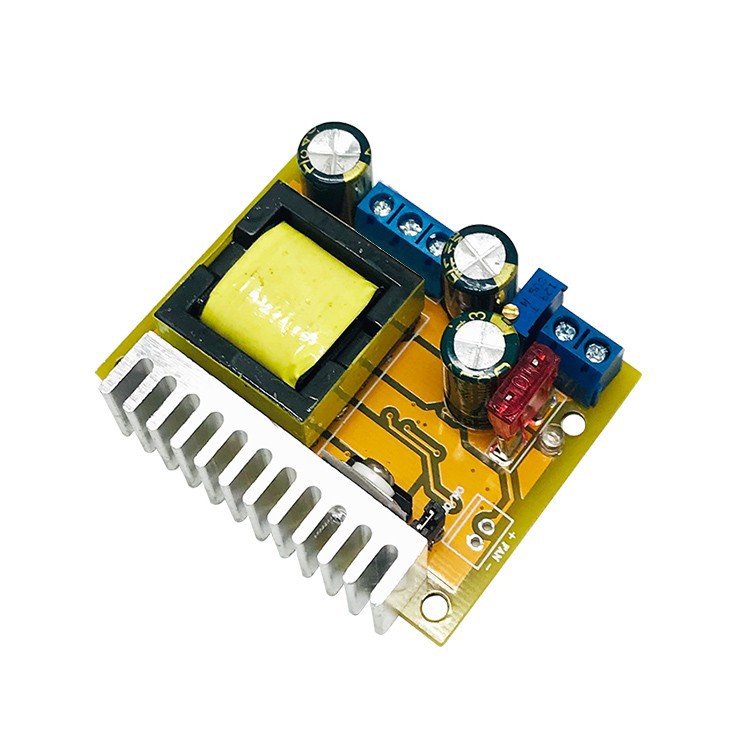

Gambar produk
