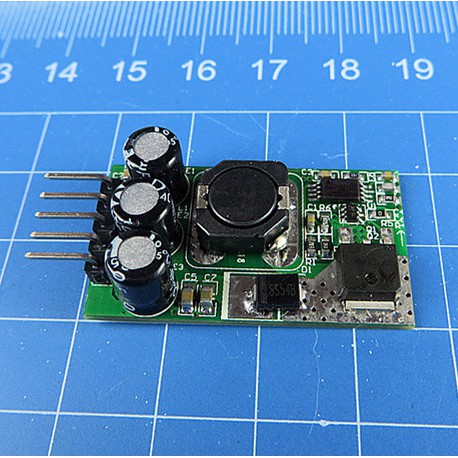

DC-DC Boost Module Ultra-small Booster 2A (539)

Detail DC-DC Boost Module Ultra-small Booster 2A (539)

It adopts pin-type modular design, small size (35mm X 20mm X 10.5mm), which is convenient to be built into electronic products to realize voltage boost function. At 7.4V to 12V (12V to 19V), the output current can reach 2A, and it can work stably and reliably. The fixed output mode is adopted, and the preset output is 9V, 12V, 15V, 19V at the factory. If other output voltage ranges are needed, please inform the customer service of the parameters before shooting and re-customize as needed. Most of our plans can provide corresponding circuit diagrams and other information. Due to the need for confidentiality of the plan, a small number of boards cannot provide information. Please consult customer service before shooting, thank you!

Please note: Before powering on, please make sure that the input voltage is not higher than the output voltage, which may cause damage! ! !

Input voltage range: 2.7V (load current hour) ~ 15V
Input current range: input current up to 3.5A (peak current up to 4A)
Output voltage range: 5V~20V (using fixed output mode)
No-load current: ≤7mA
Output current range: up to 2A (more than 2A when the boost ratio is small)
Conversion efficiency: ≤89% (depending on the input and output pressure difference)
Operating temperature range: -10~85 ℃
Dimensions: length 35mm X width 20mm X height 10.5mm
