DC-DC boost constant current power module (8017)

Detail DC-DC boost constant current power module (8017)

DC-DC boost constant current power module (8017)

Terdapat 2 varian : 250W, 500W dan 600W

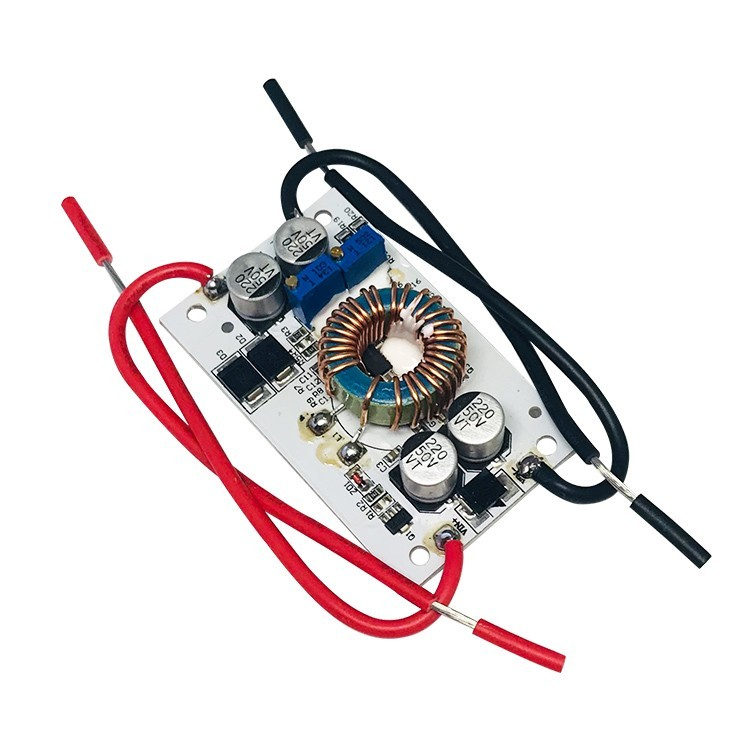

1. Keterangan power modul 250W (1531)
Module nature: non-isolated boost module (BOOST)
Input voltage: DC8.5V-48V
Input current: 10A (MAX) over 8A, please strengthen heat dissipation
Static working current: 10mA (when 12V rises to 20V, the higher the output voltage, the static current will increase)
Output voltage: 10-50V continuously adjustable, 12-80V fixed output (for batch customers)
Output current: 10A MAX. If more than 6A, please strengthen heat dissipation
Constant current range: 0.2-8A
Output power: = input voltage*10A, such as: input 12V*5A=60W, input 24V*5A=120W, input 36V*5A=180W, input 48V*5A=240W,
If you need more power, you can use two modules in parallel.

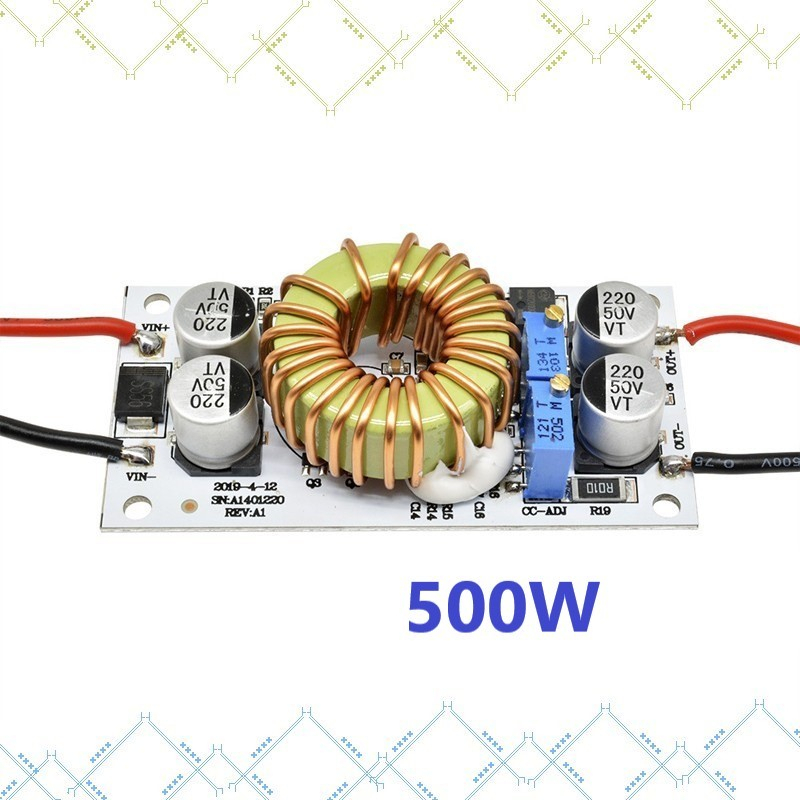

2. Keterangan power module 500W (8006)
Tegangan Input : DC 8.5-48V
Arus Masukan : 15A (MAX)lebih dari 8A untuk memperkuat
Arus kerja statis : 10mA
Tegangan keluar : 10-50V terus menerus disesuaikan
Arus keluaran : 10A MAX
Rentang arus konstan : 0.2-10A
Frekuensi kerja : 150KHz
Suhu kerja : -40~+85 derajat

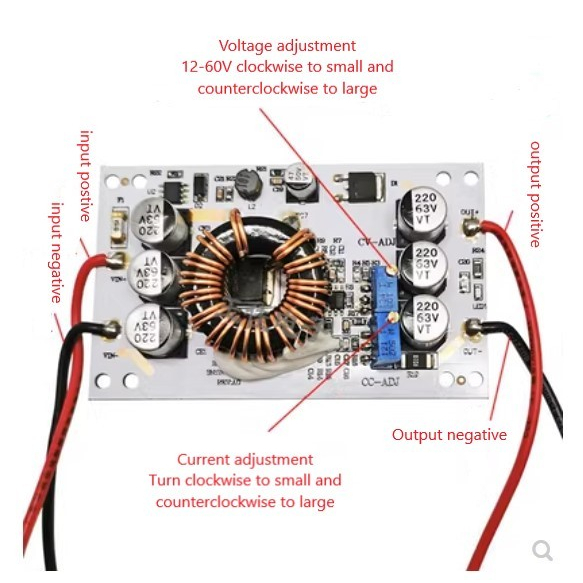

3. Keterangan power module 600W
Input voltage: DC10V-60V
Input current: 10 (MAX)
Static working current: 10mA
Output voltage: 12-60V continuously adjustable (the factory voltage output of this module is about 50v, please confirm the output voltage before connecting the load.)
Constant current range: 0.2-10A
Output power: = input voltage * 10A, such as: input 12V * 10A = 120W, input 24V * 10A = 240W,

Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)
Working frequency: 150KHz
Conversion efficiency: 92%-96% (efficiency is related to input and output voltage, current, and differential pressure)
Input reverse connection protection: none (be careful not to reverse the positive and negative)
Module size: length 85mm width 52mm height 21mm

Gambar produk
