DC DC 3A Stepdown LM2596 Module Adjustable Mini Power Supply DC to DC

Detail DC DC 3A Stepdown LM2596 Module Adjustable Mini Power Supply DC to DC

DC to DC Stepdown 3A, LM2596 mini module 0.36inch (Red)

** Spesifikasi :
- Input voltage : 3.5V - 35V
- Output voltage : 1.25V - 30V (Adjustable)
- Dropout Voltage : input voltage must be higher than output voltage
- Output Current : 0-3A, 3A Maximum
- Conversion Effeciency : 95% maximum (the higher output voltage, the higher effeciency)

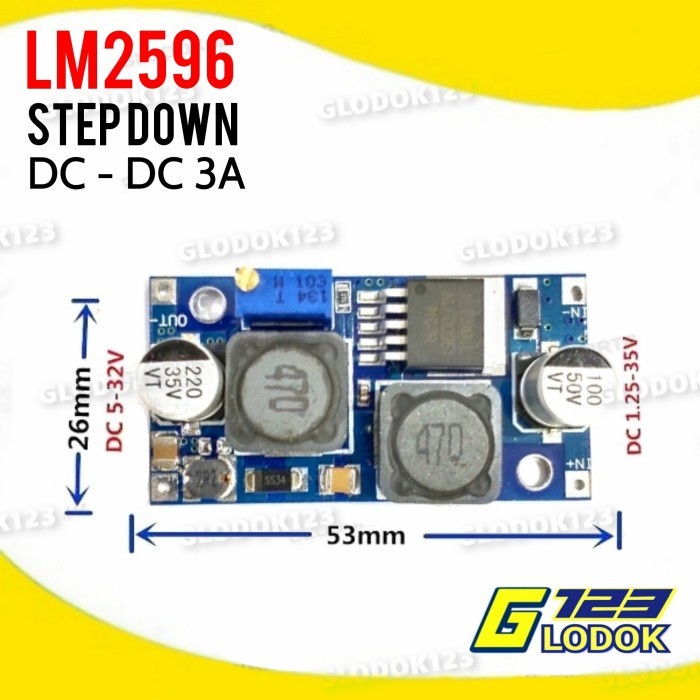

- Size : 41 (L) x 20 (W) x 14 (H) mm (including potentiometers)
- Operating Temperature : -40 to 85(C)
- Voltage Regulation : 2.5%
- Load Regulation : 0.5%
- Output Ripple : 30mV (max)
- Switching Frequency : 150KHz
- Rectification : Non-Synchronous rectification
module properties : non-isolated constant current and voltage module.

isi paket :
1x Stepdown module DC to DC LM2596 3A

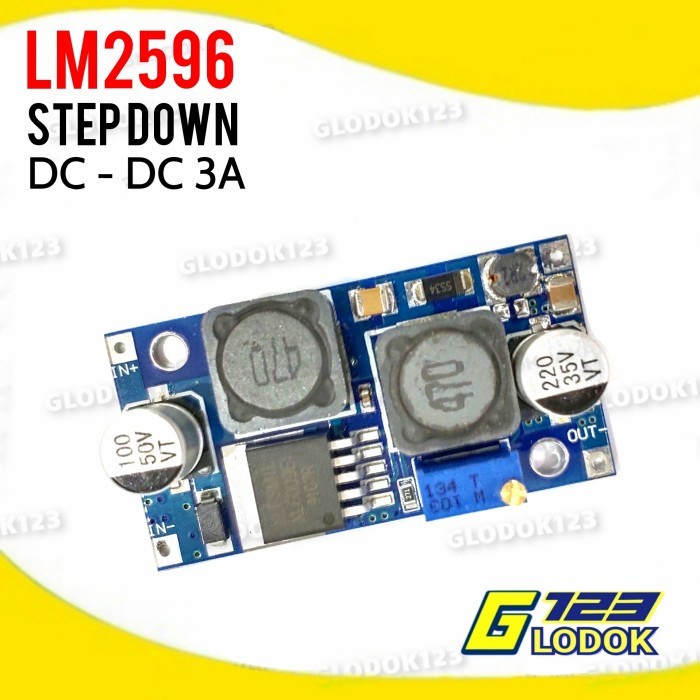

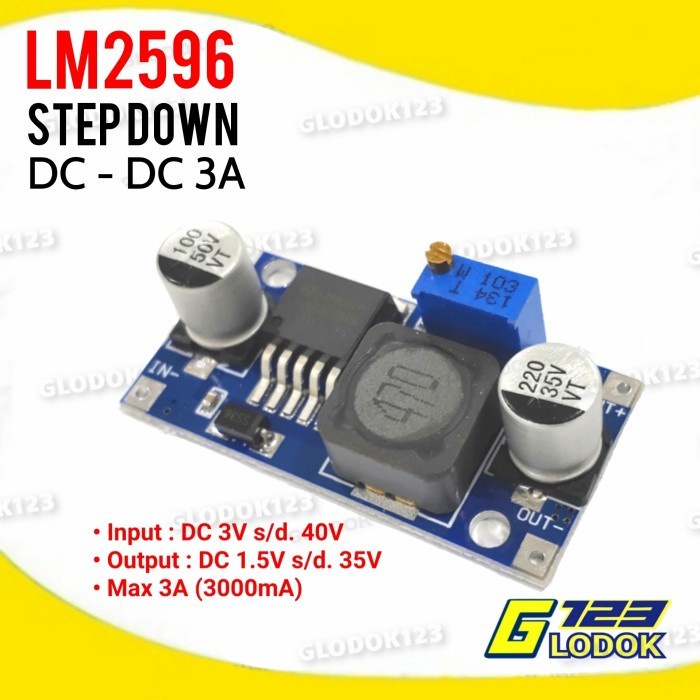

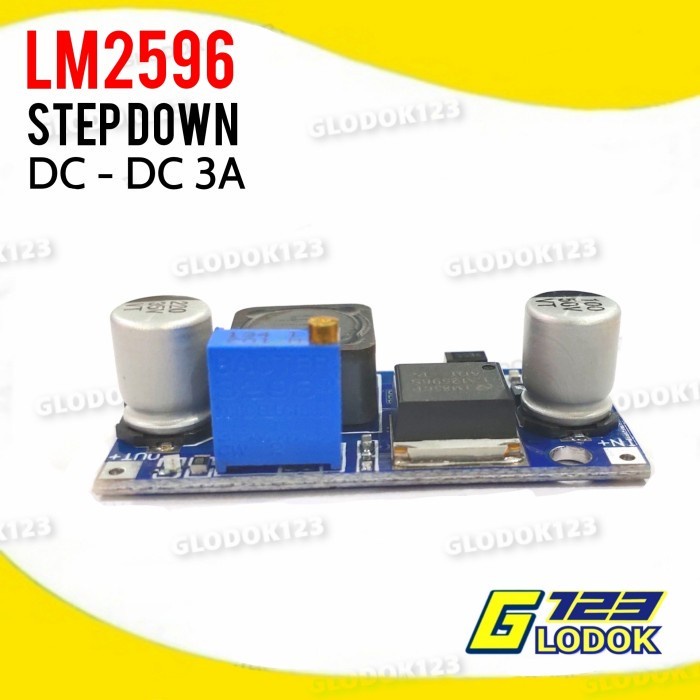

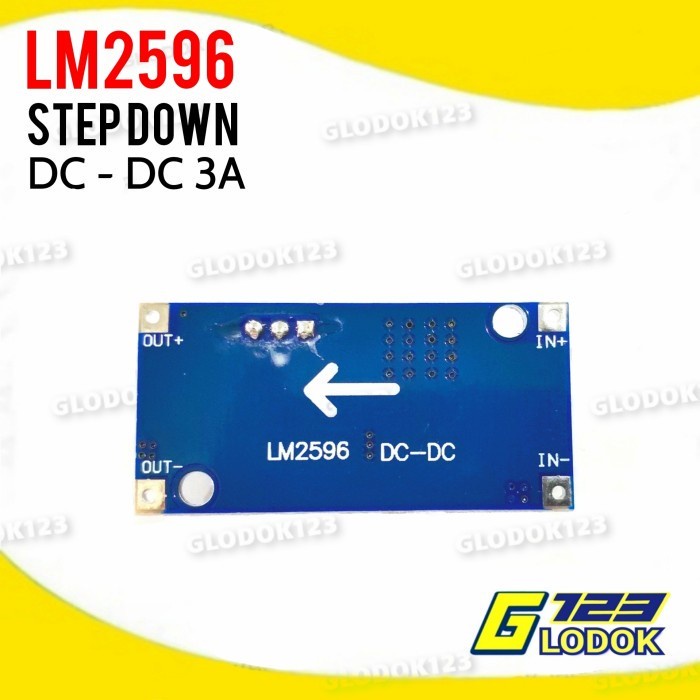

Gambar produk
