DC Buck Boost Converter CC CV 0.5-30V 4A Power Supply Modul Adjustable ZK-4KX

Detail DC Buck Boost Converter CC CV 0.5-30V 4A Power Supply Modul Adjustable ZK-4KX

ZK-4KX DC DC Buck Boost Converter CC CV 0.5-30V 4A 5V 6V 12V 24V Power Module Adjustable Regulated Laboratory Power Supply

Product parameters
Input voltage: 5.0-30v
Output voltage: 0.5-30v
Output current: can work stably at 3A for a long time, and can reach 4A under enhanced heat dissipation
Output power: natural heat dissipation 35W, strengthen heat dissipation 50W
Voltage display resolution: 0.01V
Current display resolution: 0.001A
Conversion efficiency: about 88%

Soft start: yes (with high power and load module may fail when starting)

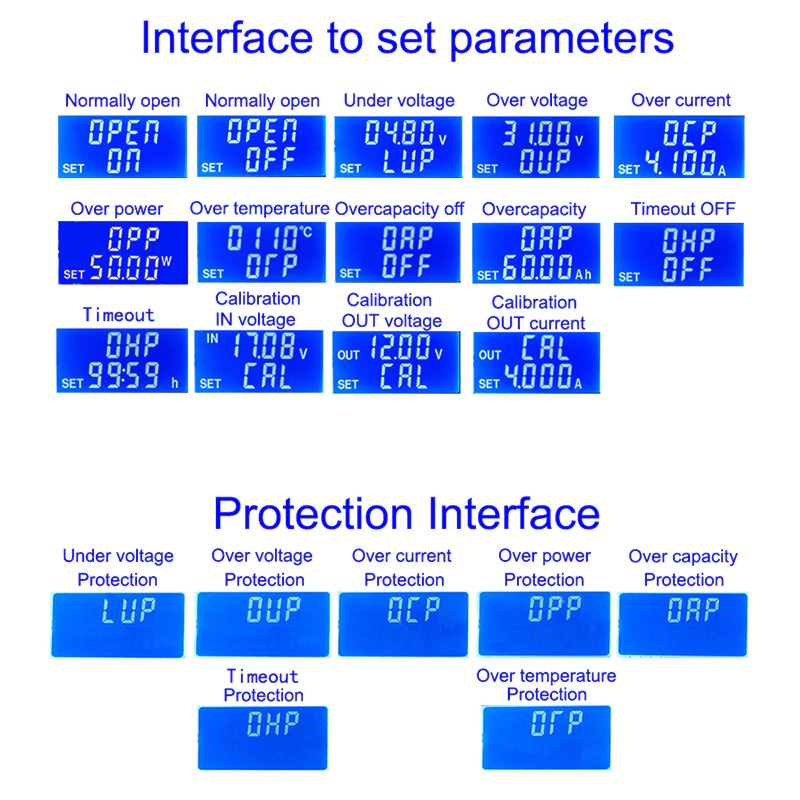

Protection mechanism:
Input anti-reverse connection;
Output anti-reverse irrigation;
Input undervoltage protection (4.8-30v adjustable, default 4.8v)
Output overvoltage protection (0.5-31v adjustable, default 31V)
Output overcurrent protection 0-4.1a (adjustable, default 4.1a)
Overpower protection (0-50w adjustable, default 50W)
Overtemperature protection (80-110℃ adjustable, default 110℃)
Timeout protection (0-100h adjustable, off by default)
Super capacity protection (0-60ah adjustable, off by default)
Operating frequency: 180KHZ

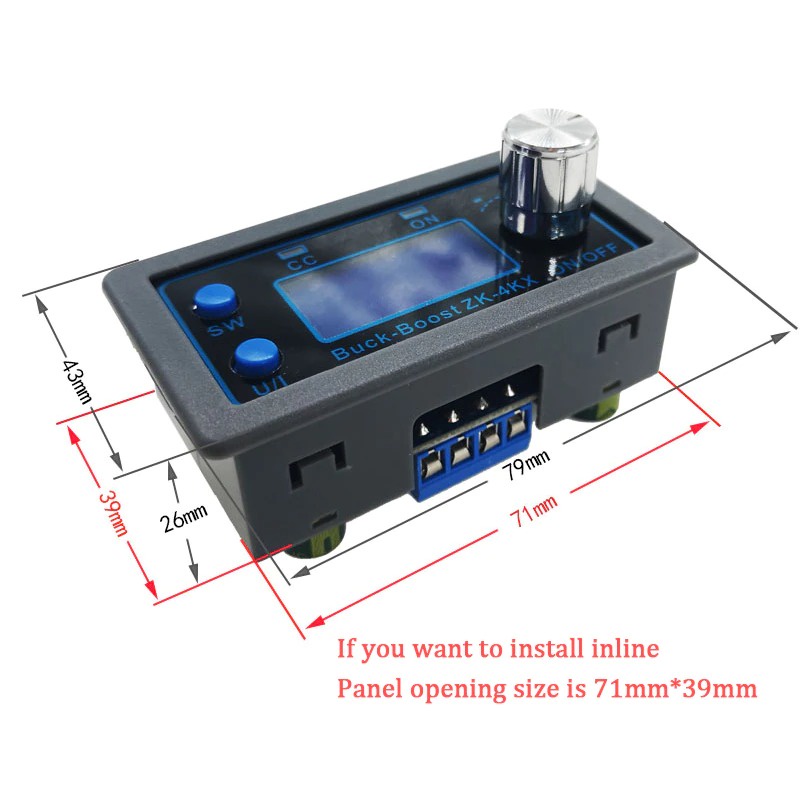

Dimensions: 79mm*43mm*26mm
Weight: 92g (including package)
