DC AXIAL FAN HINGSPED 48V - 15000rpm ukuran 60mm

Detail DC AXIAL FAN HINGSPED 48V - 15000rpm ukuran 60mm

Video perkenalan produk DC AXIAL FAN HINGSPED 48V - 15000rpm ukuran 60mm. Sumber: Shopee.

DC AXIAL FAN HINGSPED
Model 618 J/2 HHP
Brand ebmpapst Germany
- cara kerja nya .kabel putih sama hijau di seri jadi satu kabel merah sendiri kabel hitam gak kepakai
- sebalum di kirim kami pastikan kondisi normal
tidak bisa di pakai ke 12/24v harus pakai adaptor 48vdc

– Material: Housing: GRP1) (PBT)
Impeller: GRP1) (PA)
– Direction of air flow: Exhaust over struts
– Direction of rotation: Clockwise,
looking towards rotor
– Connection: Via single wires AWG 24,

– Possible special versions:
(See chapter DC fans - specials)
- Speed signal
- Go / NoGo alarm
- Alarm with speed limit
- External temperature sensor
- PWM control input
- Analog control input
- Moisture protection

Air Flow 82 m3/h
Air Flow 48.3 cfm
Nominal Voltage 48Vdc
Range Voltage 38 ~ 58 Vdc
Current 310mA
Sound Pressure level 62 dB (A)
Sound Power level 7.6 Bel (A)
Power Consumption 15 watt
Nominal Speed 15.000
Termination 4 wire ( + red , - Blue , tacho White , and PWM black )
Dimension 60 x 60 x 32 mm
Dual ball bearing
3 blade fan
- redy setock bisa klik order

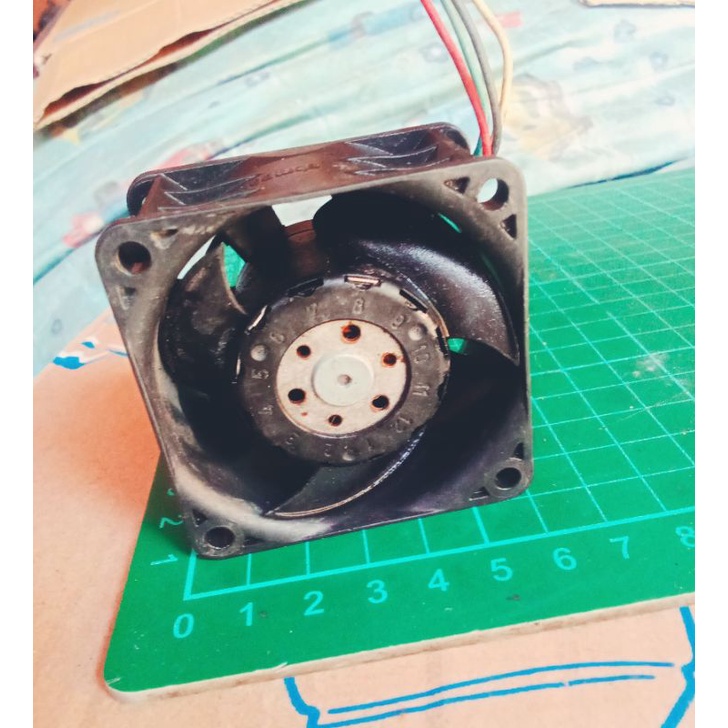

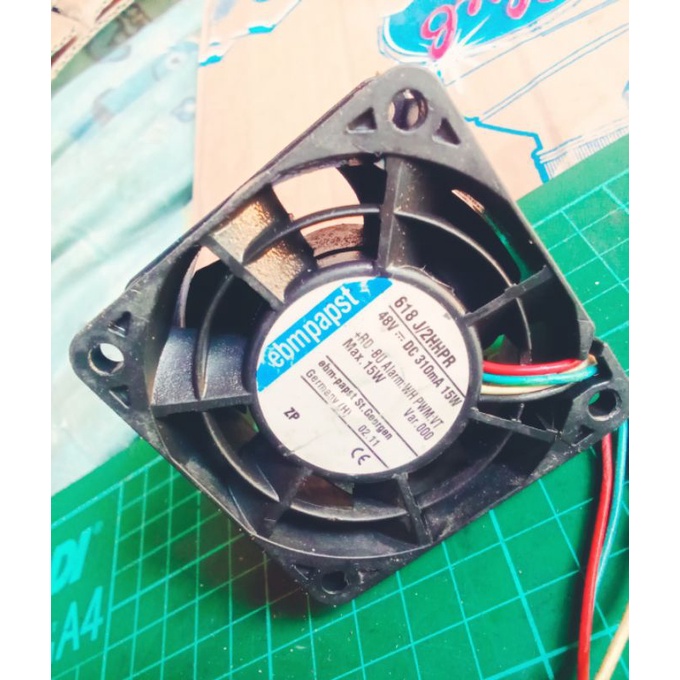

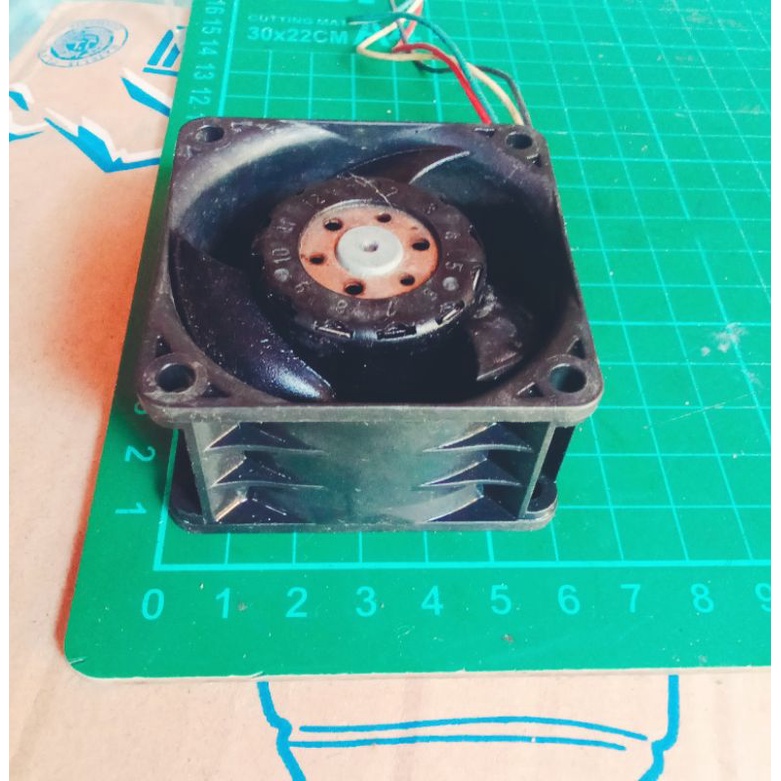

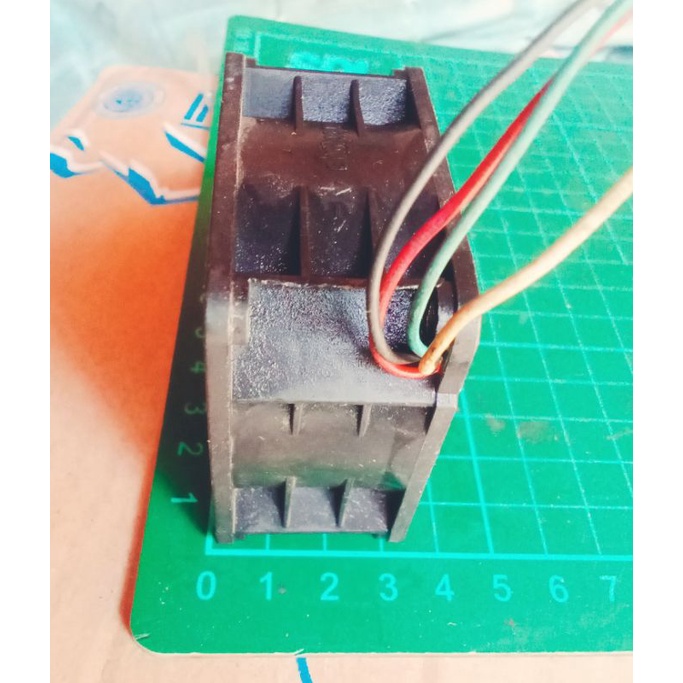

Gambar produk
