DC 400W 15A Step up Boost Converter Constant module 5-50V to 10-60V

Elektronik > Elektronik Lainnya > DC 400W 15A Step up Boost Converter Constant module 5-50V to 10-60V
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail DC 400W 15A Step up Boost Converter Constant module 5-50V to 10-60V

Hi #RekanEasyWare ...
EasyWare Part#: EP000706

SPESIFIKASI :
- Module name : 400W boost constant current module
- Module properties: non-isolated step-up module (BOOST)
- Input voltage: DC 8.5V-50V
- Input current: 15A (MAX) exceeds 8A please enhance heat dissipation
- Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
- Output voltage: 10-60V continuously adjustable
- Constant] range: 0.2-12A
- Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
- Operating frequency: 150KHz
- Conversion efficiency: up to 96%
- Overcurrent protection: yes
- Input reverse polarity protection: no
- Installation: 4 2.55mm screw holes
- Connection method: Connection Output

DAPAT DIGUNAKAN :
- DIY a power supply, 12V can input and output can 12-50V adjustable.
- The power supply for your electronic device, according to your system can set the output voltage value.
- As the car power supply for your laptop, PDA or a variety of digital products supply.
- DIY a mobile notebook power supply: 12V coupled with high-capacity lithium battery pack, so you can go where light where books.
- Solar panel regulator.
- To the battery, rechargeable lithium batteries.
- Driving high-power LED lights.

KELENGKAPAN :
- 1pcs 400W 15A DC to DC Step Up module

Gambar produk

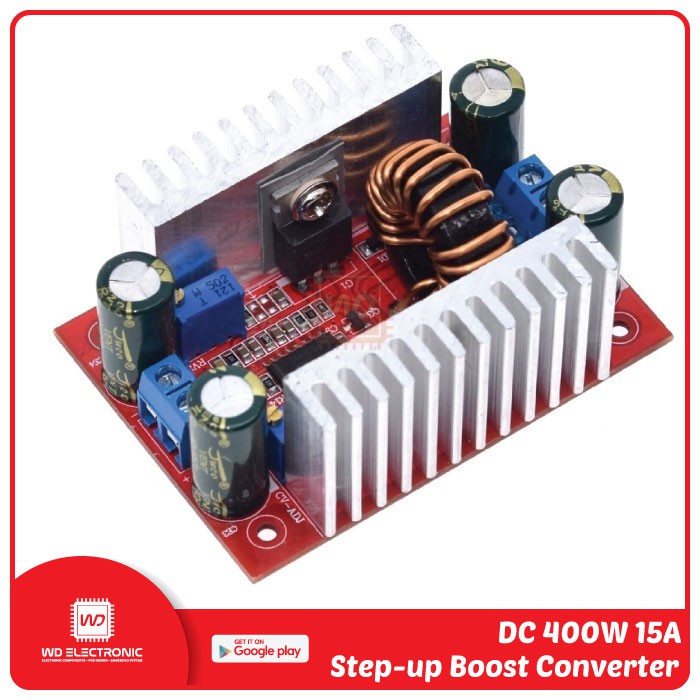

DC 400W 15A Step up Boost Converter Constant module 5-50V to 10-60V

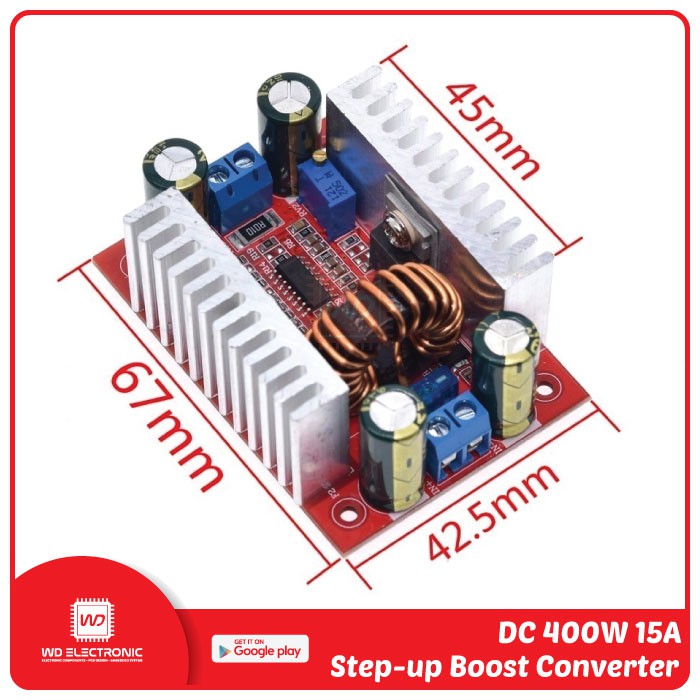

DC 400W 15A Step up Boost Converter Constant module 5-50V to 10-60V
DC 400W 15A Step up Boost Converter Constant module 5-50V to 10-60V
DC 400W 15A Step up Boost Converter Constant module 5-50V to 10-60V
