DC 20A 300W Step down Buck Converter 5-40V To 1.2-35V module modul

Detail DC 20A 300W Step down Buck Converter 5-40V To 1.2-35V module modul

Barang real Sesuai gambar heatsink Tebal Lilitan tembaga merah

Deskripsi DC-DC Step Down Buck Converter CC-CV 300W 20A
Effisiensi tinggi 96%, Terukur 20A, Perubahan 24V to 12V.

Heatsink ukuran lebih besar

Specifications:
*Tegangan Input 6V to 40V DC (Disarankan 10V to 40V )

*Tegangan Output 1.2V to 36V DC
Arus Keluaran: 20A (max.), 15A (Disarankan)

*Efficiency: 95% (24V to 12V, 20A)
*Output Ripple: '50mV
*Wiring Method: Terminal

*Short Circuit Protection: Self-recovery (cannot short circuit for long time)

Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06"

Keterangan:
VO+: Output positive
VO-: Output negative
+IN: Input positive
-IN: Input negative
CV: Output voltage adjustment
CC: Output current adjustment
EN: Enable, low voltage level shut off output; suspension, high voltage level is effective

When input and output is common grounded, no-load CV output constant voltage,CC output constant current

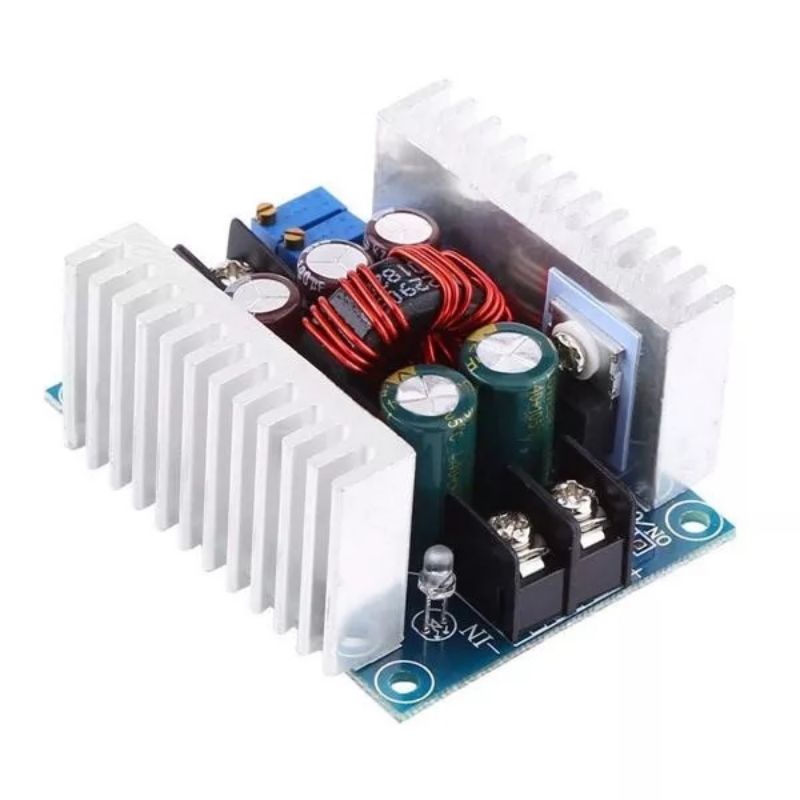

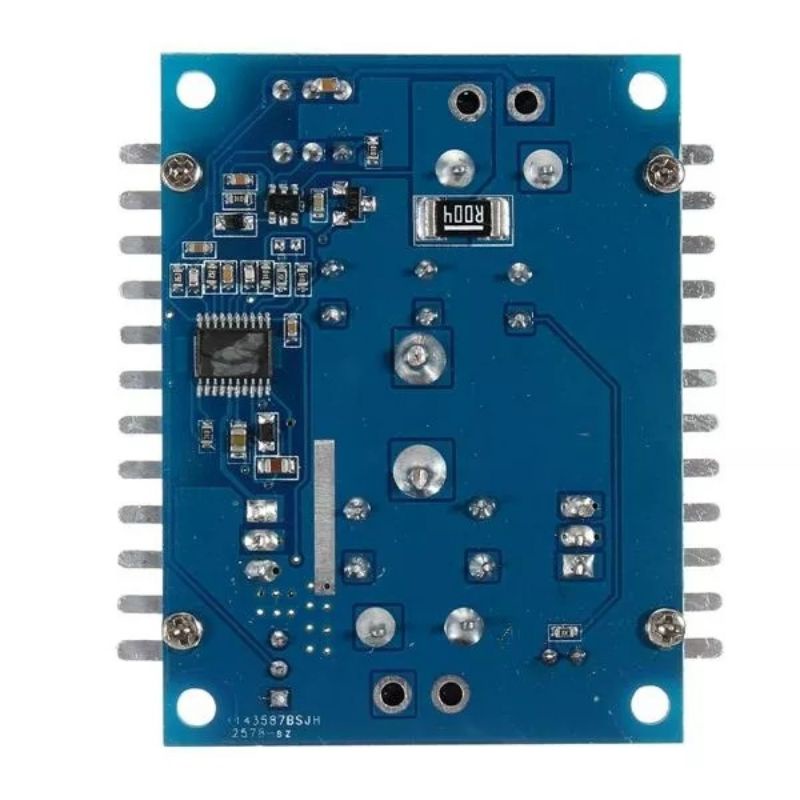

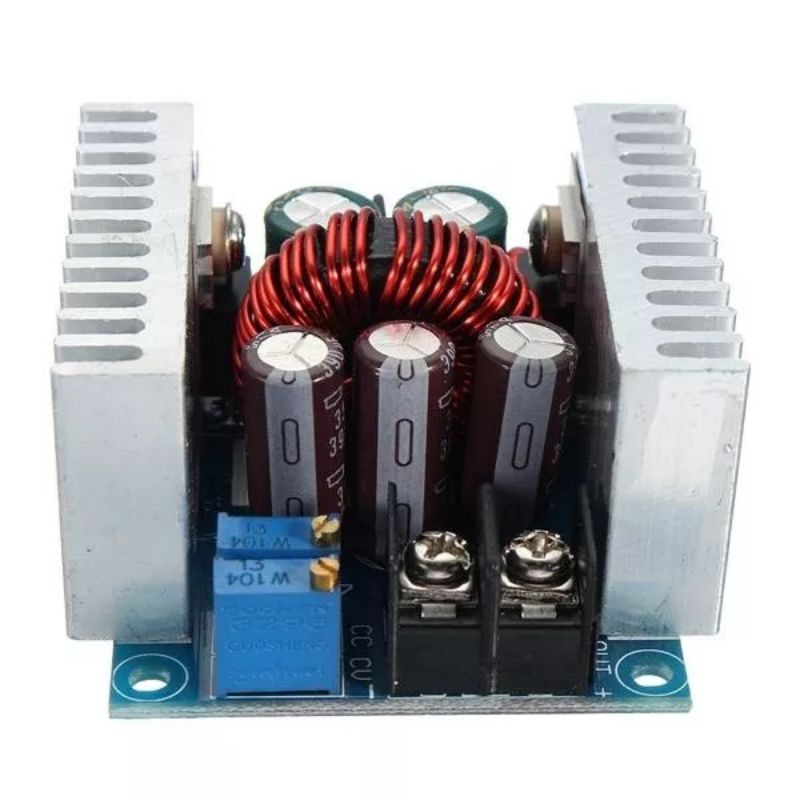

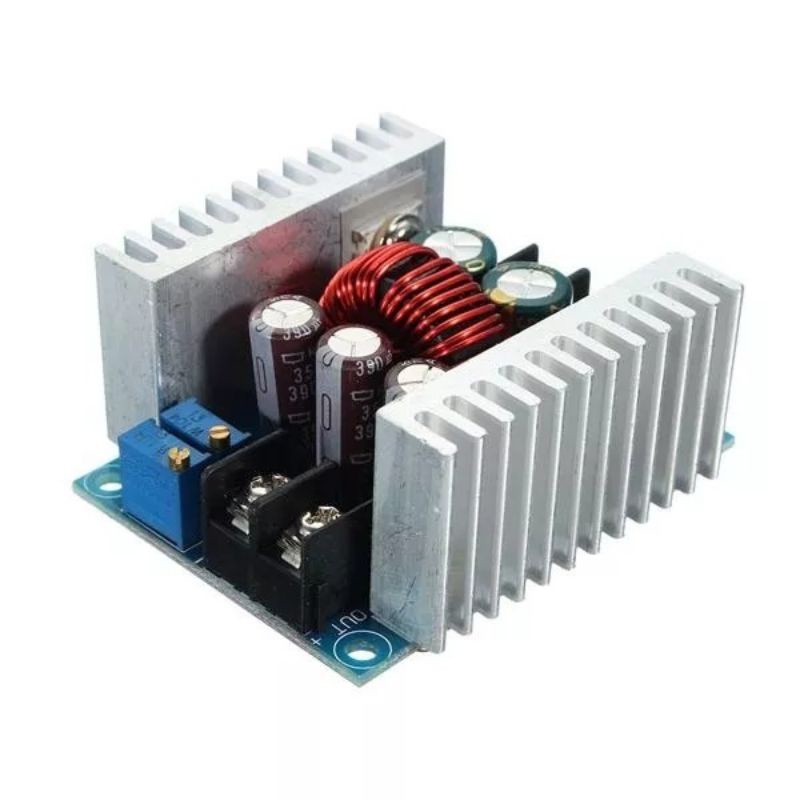

Gambar produk
