DC 0-100V Mini Voltmeter Digital Volt Meter Display Merah 3 Kabel

Detail DC 0-100V Mini Voltmeter Digital Volt Meter Display Merah 3 Kabel

DC 0-100V Mini Voltmeter Digital Volt Meter Display Merah 3 Kabel

Spesifikasi:
Operating voltage: 3.3~30V (with reverse polarity protection)
Test voltage: 0~99.9V
Operating Current: 20mA
Display: 0.28 inch LED, RED
Screw Hole Size: 2mm
Measurement rate: 500mS / times
Minimum operating voltage: +3.3 V
Maximum working voltage: +30 V
Operating Temperature: -10~+65 degree
Operating Humidity: 10~80% (non-condensing)
Working pressure: 80~106kPa
sun exposure: no direct exposure
Dimension:2.8 x 2 x 1.5cm(L x W x H)
Cable length:Approx.13cm
Net weight:7g
Package weight:17g

Cara Pasang:
Merah (positif) + Hitam (negatid): Power Supply 3.3-30V
Putih/Kuning (positif) + Hitam (negatif): Pengukuran tegangan 0-99.9V

Catatan:
- Karena kabel hitam hanya 1, jadi bisa disambung / dibuat cabang (common negative)

- Kabel Merah dan Putih bisa di gabung, pengukuran max menjadi 30V.

- Harap perhatikan dalam pemasangan jangan sampai terbalik.

Paket:
1 buah Voltmeter 0-100V display merah

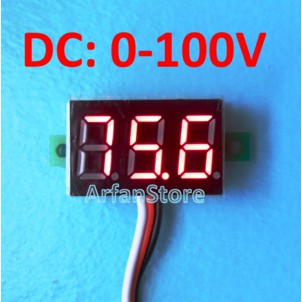

Gambar produk
