DB25 F to RJ45 MODULAR ADAPTER

Detail DB25 F to RJ45 MODULAR ADAPTER

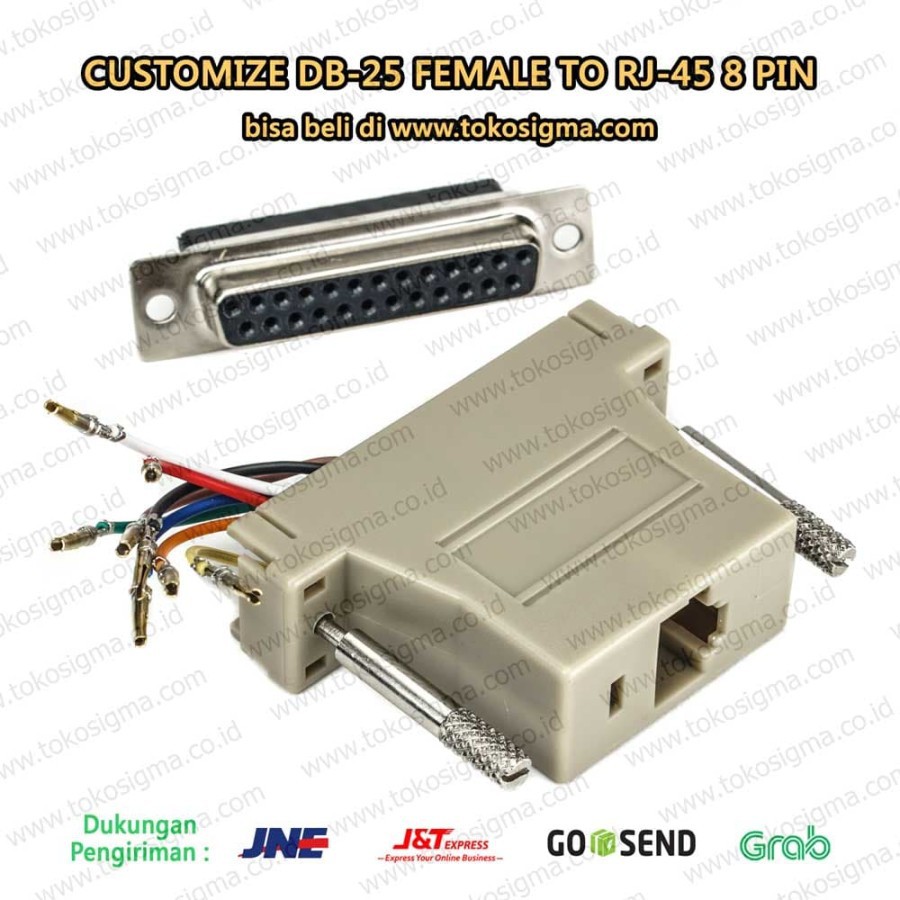

JUAL : Customize DB25 Female to RJ45 MODULAR ADAPTER

Tersedia : DB25 M to RJ45 MODULAR ADAPTER
https://shopee.co.id/product/54720463/5576343214/

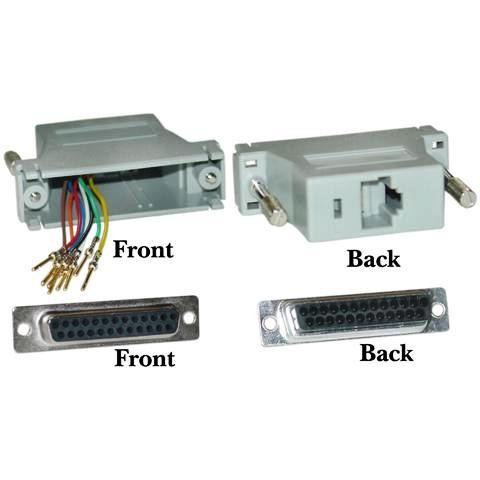

DB25 to RJ45 Gray Modular Adapter, DB25 Female to port RJ45

This modular adapter has a DB25 female connector that plugs into DB25 RS232 serial port and converts it to an RJ45 connection.

This gray modular adapter converts from a DB25 female to an RJ45 socket.
By its very nature the pin outs are user configurable to match any needs you may have.
The leads are "flying leads" to provide you with more leeway when inserting the pins.
A modular adapter is typically used to traverse long distances over a 8 conductor RJ45 line / network cable.

This adapter allows you to connect an Ethernet Cable, such as cat5e or cat6, to a serial cable.
Ethernet cable is a common substitute for serial cable because of its cost effectiveness and quality.
These kits are shipped unassembled and require assembly based on their application to be functional. These can be assembled on your end by a competent technician.

Features:

Converts: Converts back and forth between DB25 Female Plug and RJ45 Female Port
Connection: DB25 Female Plug
Connection: RJ45 Female Port
Gold plated pin out
28AWG wire
Molded ivory / gray color housing
Thumb screw

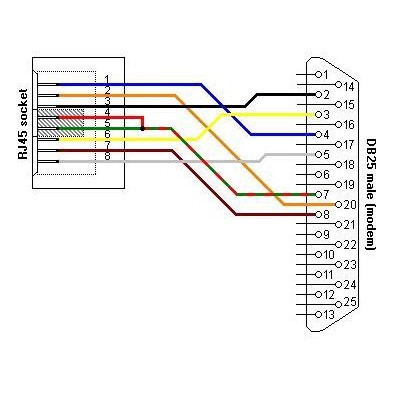

RJ45 Pinout:
Pin1 -- Blue
Pin2 -- Orange
Pin3 -- Black
Pin4 -- Red
Pin5 -- Green
Pin6 -- Blue
Pin7 -- Brown
Pin8 -- White

Isi paket :

1 x Housing with pin out female wired RJ45 port
1 x DB25 female adapter

Berat sebelum di bungkus menjadi paket : 45 gram

Gambar produk
