Datavideo SE-1200MU 6 Input HD Digital Video Switcher + Datavideo RMC-260 Remote Control for SE-1200

Detail Datavideo SE-1200MU 6 Input HD Digital Video Switcher + Datavideo RMC-260 Remote Control for SE-1200

RODUCT HIGHLIGHTS

- 6-Input High Definition Switcher
- Computer Control
- 1080i / 720p Compatible
- 4x HD-SDI & 2x HDMI Inputs
- 2x HD-SDI & 2x HDMI Assignable Outputs
- 1RU in Height
- 2x DSK Luma Key & Linear Key
- Internal Frame Synchronizer
- Tally Output

At only 1RU in height, the Datavideo SE-1200MU 6 Input HD Digital Video Switcher is a small, portable, computer controlled switcher. Designed to be controlled using the front panel buttons, RS-422, or via a computer. An optional monitor is required to view your output. The unit supports 1080i and 720p video via 4 HD-SDI inputs and 2 HDMI inputs, with the HDMI inputs supporting computer signals.

The SE-1200MU has 2 HD-SDI outputs and 2 assignable HDMI multi-view outputs. In terms of audio, there are 2 XLR mono inputs (1 stereo pair) and the switcher supports audio embedding of analog audio. The switcher supports Luma and linear keying with 2 downstream keyers, and has built-in effects including fade to black, straight cut, and 32 wipes with border. The internal frame synchronizer allows you to use consumer cameras with HDMI output and computers as input sources while making straight cuts without having the image jump, or requiring a fade to black. As you would expect with a switcher, this unit supports Tally indication on the multi-view output.

- 6-Input high definition switcher
- 1RU rackmountable processing unit
- 4x HD-SDI and 2x HDMI inputs
- Re-configurable inputs
- 2x HD-SDI outputs
- 2x Assignable HDMI outputs for dual multi-view screens
- 32 Wipe effects with border options
- Multi-view output
- Cross point assignment
- PC remote control
- Tally output
- 12 VDC operation voltage

PRODUCT HIGHLIGHT

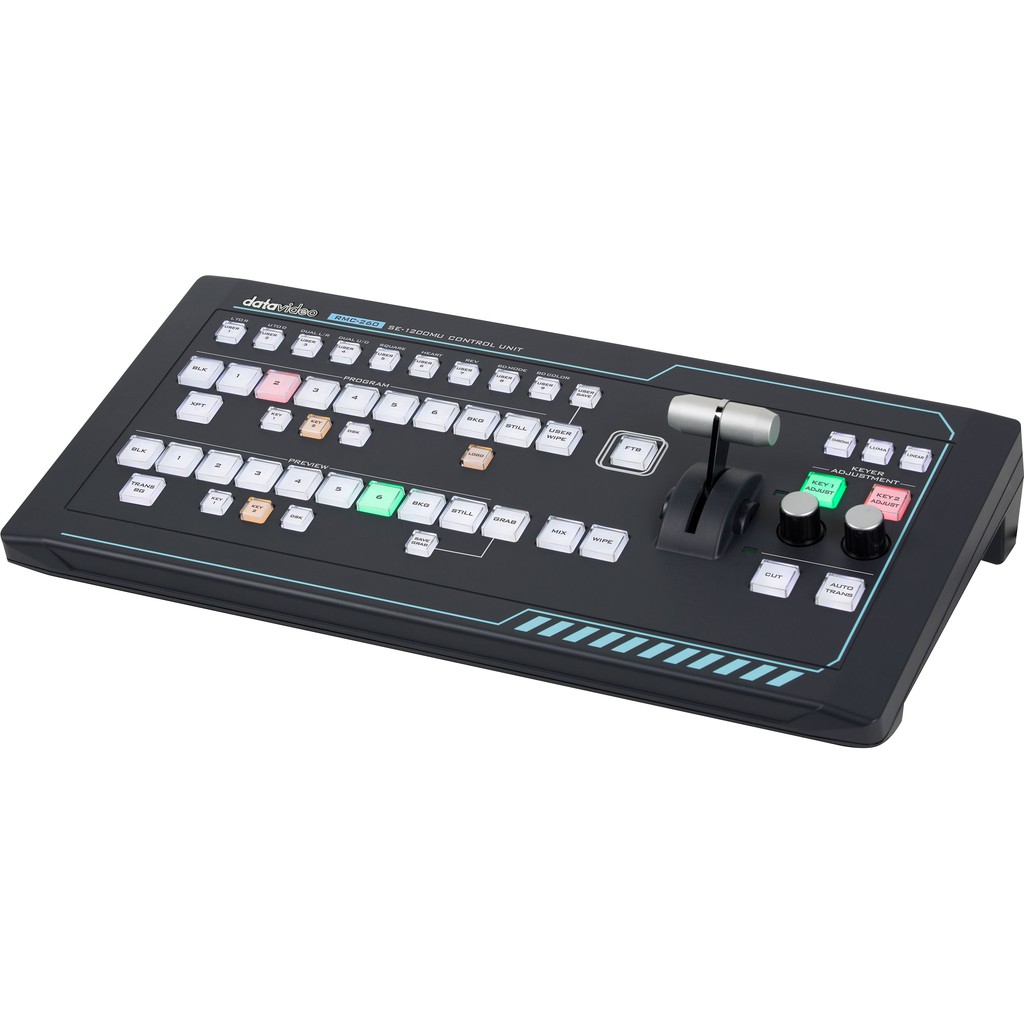

The RMC-260 Remote Control from Datavideo is used for controlling the SE-1200MU Digital Video Switcher (switcher not included) via an RS-232 interface. With hard keys for the main switcher functions and on-screen menu controls for quick and easy adjustment of parameters in the field, the RMC-260 is designed for effortless switching. The RMC-260 can be used with or without the PC Control Software, although the software must be used for upgrades and for import/export of user memory settings, stills, and clips.

- Clear key definitions
- Support for keyers enable and quick function assignment
- Allows you to save user behaviour using the user memory keys for quick access
- Two keyers with two corresponding knobs for assignment of keyer 1/2 sources
- XPT (cross-point assignment)
- Take button to switch between PVW and PGM views
- FTB button fades the PGM view to a black screen
- Still Grab function for capturing instantaneous video image
- RS-232 interface for communication between RMC-260 and SE-1200MU
- Bright LED lighting
