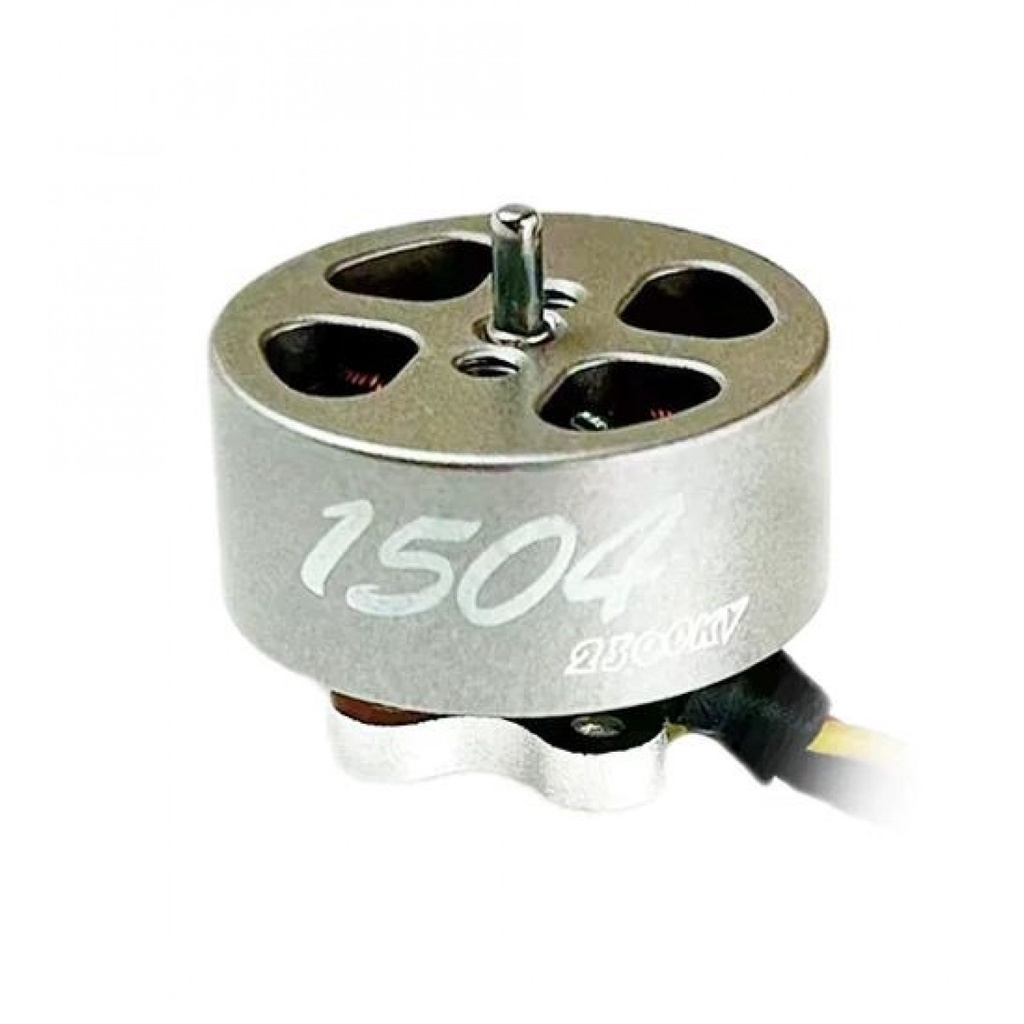

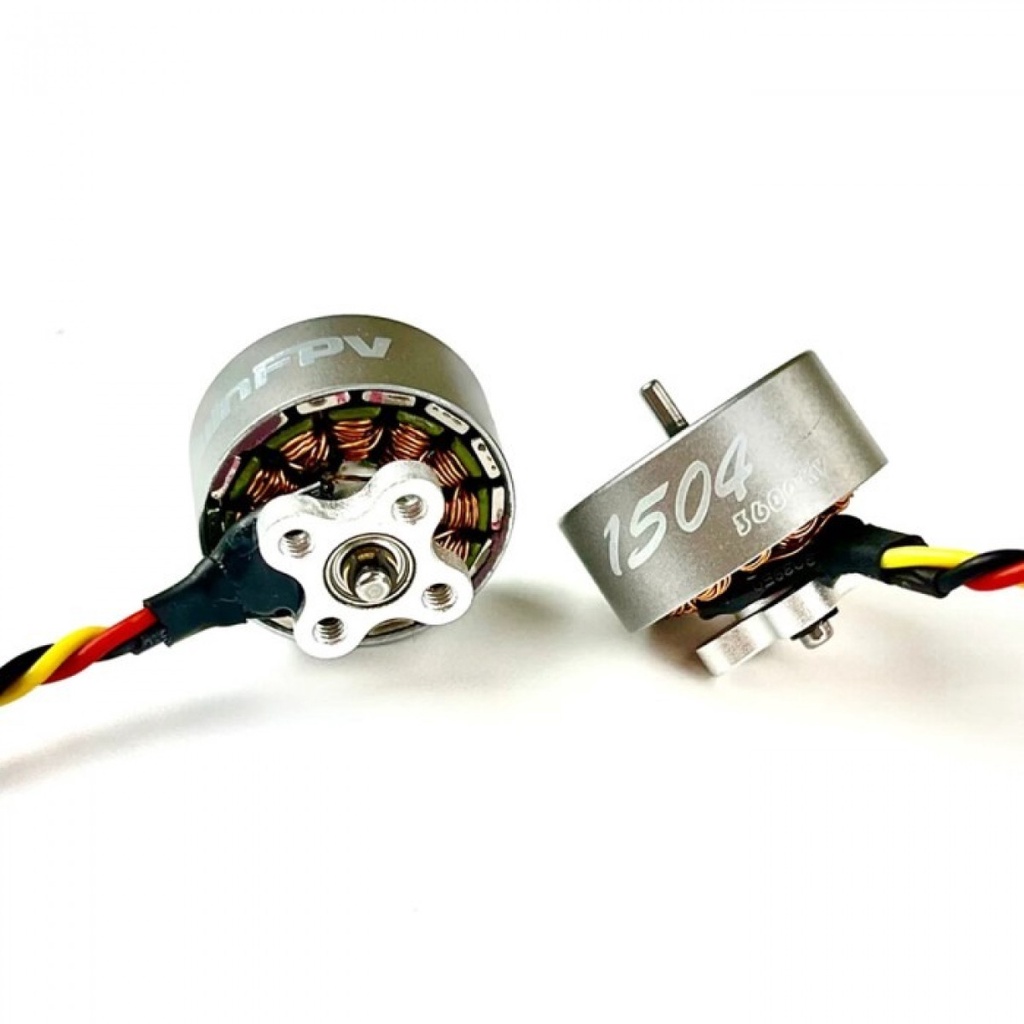

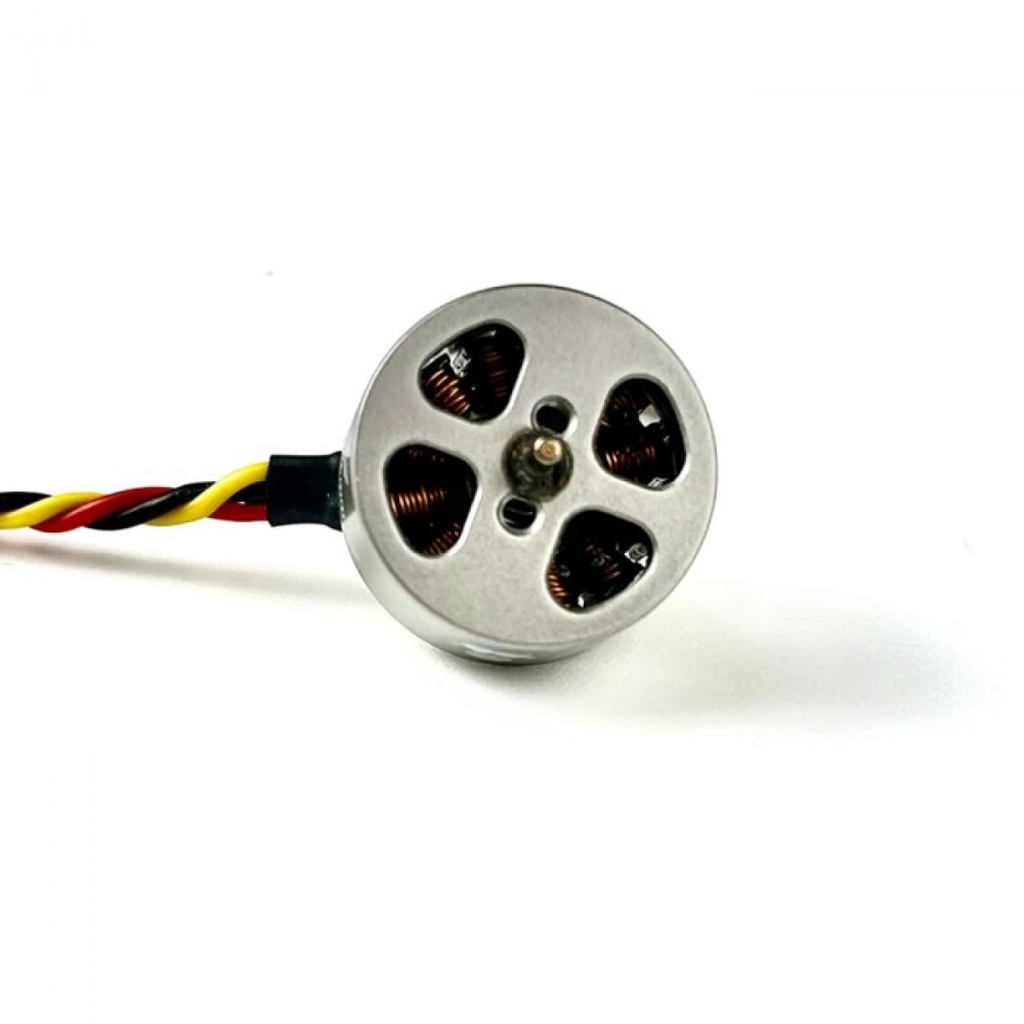

DarwinFPV CineApe 25 1504 2300KV 1.5mm 4-6s Brushless Motor Drone FPV

Detail DarwinFPV CineApe 25 1504 2300KV 1.5mm 4-6s Brushless Motor Drone FPV

Features:
The most cost-effective brushless motor. Like the 1504 motor of a well-known brand, it has mature production technology, sufficient raw materials and a complete supply chain, which essentially determine the characteristics of low price and high quality.
Lightweight design, weighing only 10g, greatly improves the battery life of the drone.
Compatible with 2.5-inch FPV drone and 3-4-inch toothpick FPV drone, which can be used for racing.
The 1.5mm shaft fits perfectly with most 2.5-4 inch FPV propellers on the market.

Specifications:
Model: 1504-2300KV
Number of slot poles: 12N14P
Stator size: 15 x 4mm
Out shaft diameter: 1.5mm
Motor dimensions: 18.1 x 12.7mm
Mounting hole: 9 x 9mm (M2)
Weight: 10g
Lead wire specifications: 26#AWG
Rated voltage: 4-6S
Maximum power: 192W
Maximum current: 8A
Recommended configuration: 6S-2.5 inch whoop FPV drone
6S-3 inch toothpick quadcopters
4S-4 inch toothpick quadcopters
