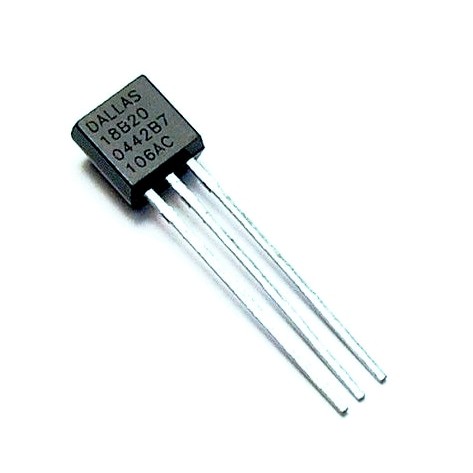

Detail DALLAS DS18B20 TO-92, Temperature Sensor Compatible with Arduino

100% brand new and high quality.
Unique 1-Wire Interface Requires Only One Port Pin for Communication
Each Device Has A Unique 64-Bit Serial Code Stored In An On-Board Rom
Requires No External Components
Thermometer Resolution is User Selectable from 9 to 12 Bits
Software Compatible with the DS1822
Applications: Thermostatic Controls, Industrial Systems, Consumer Products, Thermometers, or Any Thermally Sensitive System

Specifications:

Model:DS18B20

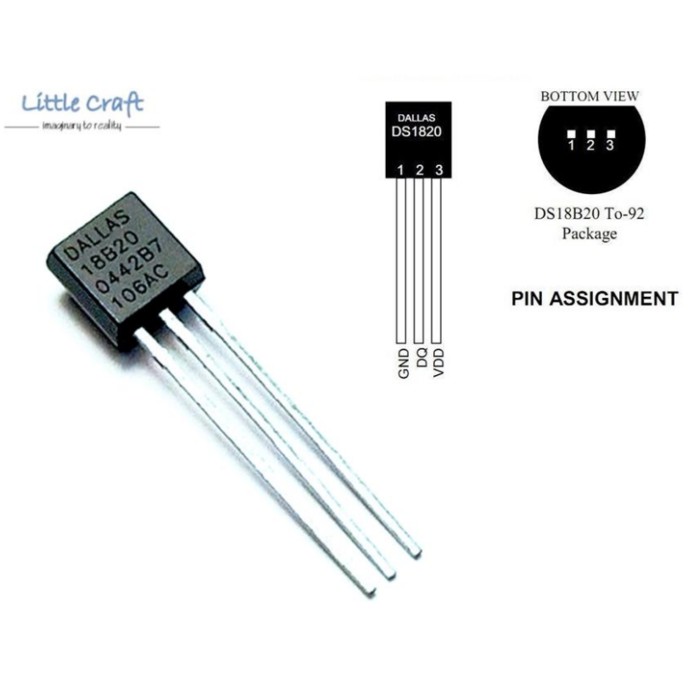

Package: TO-92
Number of Pins :3
Voltage Supply: 3V~5.5V
Sensing Temperature: -55°C ~ +125°C
Accuracy :±0.5 °C
