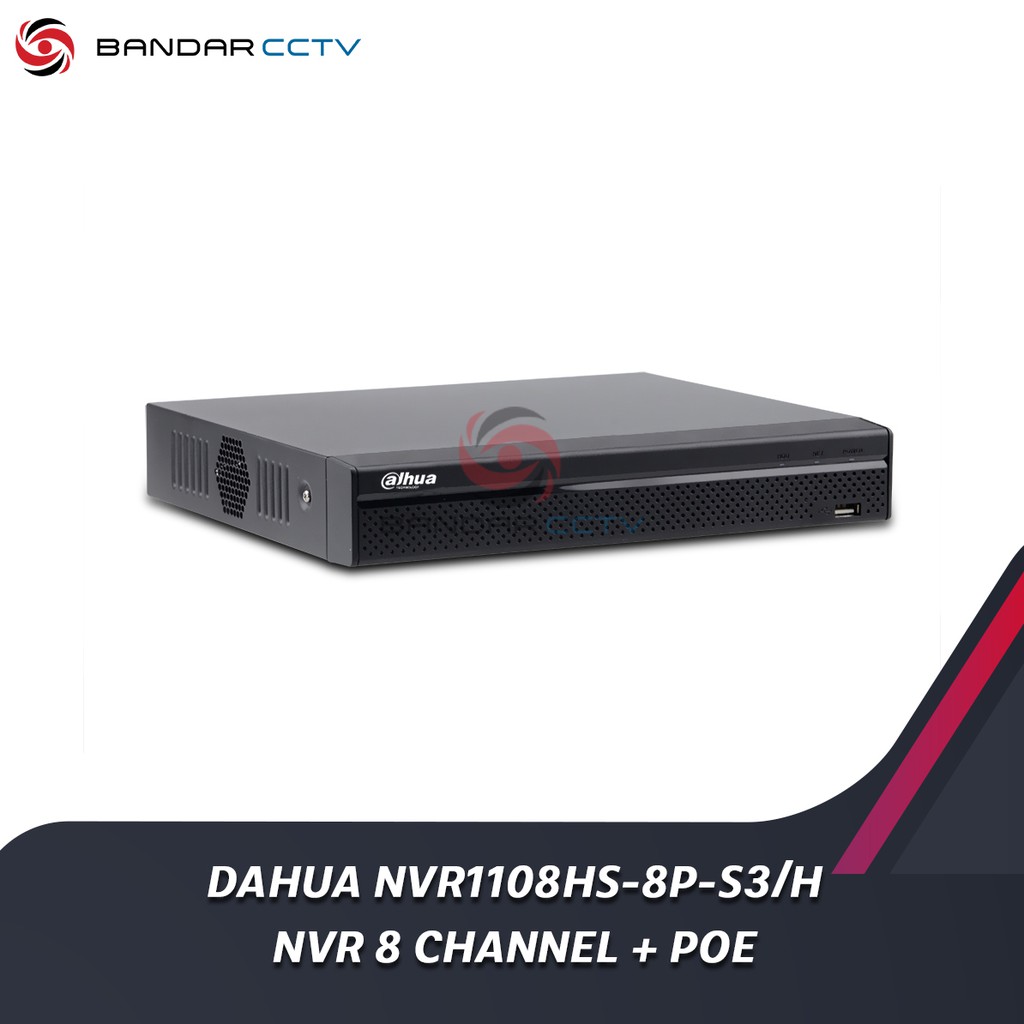

Dahua NVR1108HS 8P S3H NVR 8 Channel Plus POE

Detail Dahua NVR1108HS 8P S3H NVR 8 Channel Plus POE

Standard: TCP/IP
Supported resolutions: max. 6 Mpx - 3072 x 2048 px
Video outputs: 1 pcs HDMI
1 pcs VGA
Audio support: 8 Channels - Audio from cameras
Audio inputs:
Audio outputs:
Image compression method: H.265+ / H.265 / H.264+ / H.264
Supported hard drives: 1 x 6 TB SATA
Recording modes: Manual, Sensor, Motion detection, Schedule
Network protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, IP Search, P2P
External storage devices backup: Backup to USB drive (pendrive)
Searching and playback the records: Records searching: by time and events type. Records playback: forward, backward, fast, slow
Advanced searching (to the one second accuracy)
All channels synchronous playback, Smart Search function
Bitrate: max. 40 Mbps
Network functions: Full support via network, Remote records copying, Web Server built-in
max. 128 on-line users
Mobile phones support: Port no.: 37777 or access by a cloud (P2P)
Android: Free application gDMSS Plus, Android: Free application IMOU
iOS (iPhone): Free application iDMSS Plus, iOS (iPhone): Free application IMOU

See how to configure the P2P function in Dahua recorders and how to enable the mobile application
Default IP address: 192.168.1.108
Default admin user / password: admin / -
The administrator password should be set at the first start
Web browser access ports: 80, 37777
PC client access ports: 37777
Mobile client access ports: 37777
RTSP URL: rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream
Alarm inputs / outputs:
USB: 2 pcs USB 2.0
PTZ control: IP Speed Dome Cameras
Motion Detection: 22 x 18 motion zones, 6 sensitivity levels
Mouse support:
IR remote controller in the set:
Power supply: 48 V DC / 2.5 A
Switch PoE: 8-port PoE Switch built-in, 25.5 W / Channel, PoE (802.3af/at)
max. 72 W (total)
