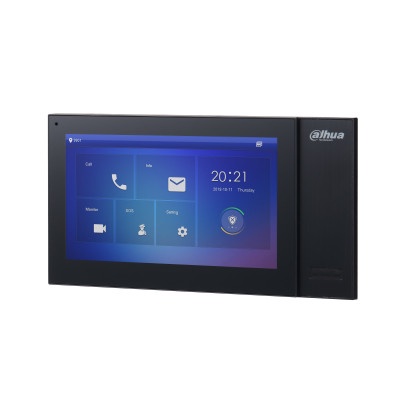

Dahua KTP02 Video Door Phone Intercom IP Indoor Monitor VTH2421FB-P

Detail Dahua KTP02 Video Door Phone Intercom IP Indoor Monitor VTH2421FB-P

IP Indoor Monitor
IPC surveillance
Alarm integration
High performance
Embeded 8GB SD card
Support standard PoE
Quick configuration
without computers

Model DHI-VTH2421FB-P
Main Processor High performace embedded processor
Operating System Embedded LINUX OS
Screen Type Capacitive screen
Display 7-inch TFT screen
Resolution 1024 600
Video Compression H.264
Audio Compression G.711A/G.711U/PCM
Audio Input 1 channel all-direction microphone
Audio Output Built-in 1.5W loudspeaker
Audio Mode Support dual-way bidirectional talk
Audio Enhancement Support echo cancellation/DNR
Audio Bit Rate 16 kbps
Communication Mode Full digital
Information Release Support to receive and view notifications issued by
center
Leave Videos or Text Messages Yes
DND Mode Support to set DND period
Sub-station Quantity 9
Alarm Input 6 channel (switch quantity)
Alarm Output 1 channel
Network 1 RJ-45
SOS Alarm Yes
Casing PC+ABS
Appearance Color Appearance Color
Power Supply Power Supply
Installation Wall mount
Accessories Default bracket
Default alarm cable
Dimensions 119.6 mm 221.5 mm 21.5 mm
(4.71" 8.72" 0.85")
Operating Temperature -10C to +55C (+14F to +131F)
Operating Humidity 10%RH-95%RH
Power Consumption Standby4W, work6W
Gross Weight 0.35 Kg (0.77 lb)
Power Supply Mode PoE or DC 12V
Storage Support Micro SD, maximum memory capacity 32 G,
standard memory capacity 8 G
