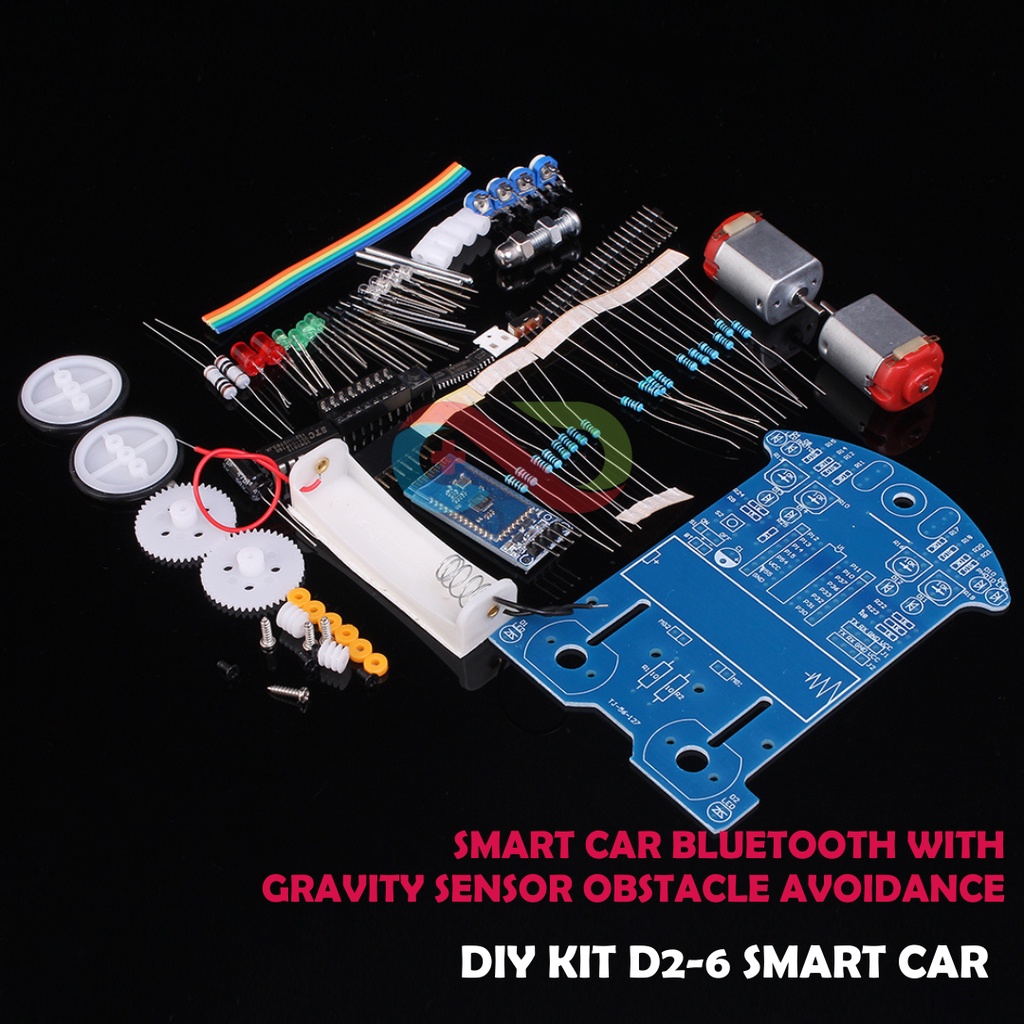

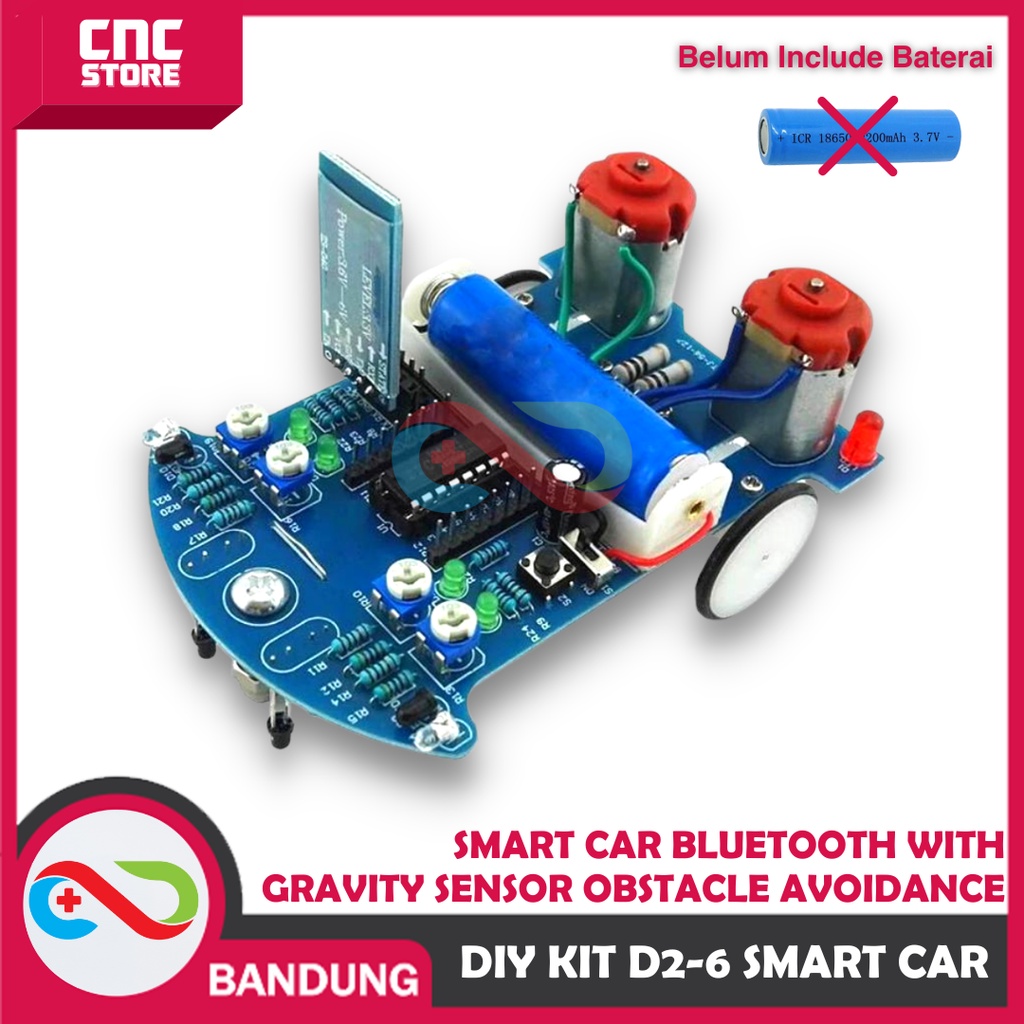

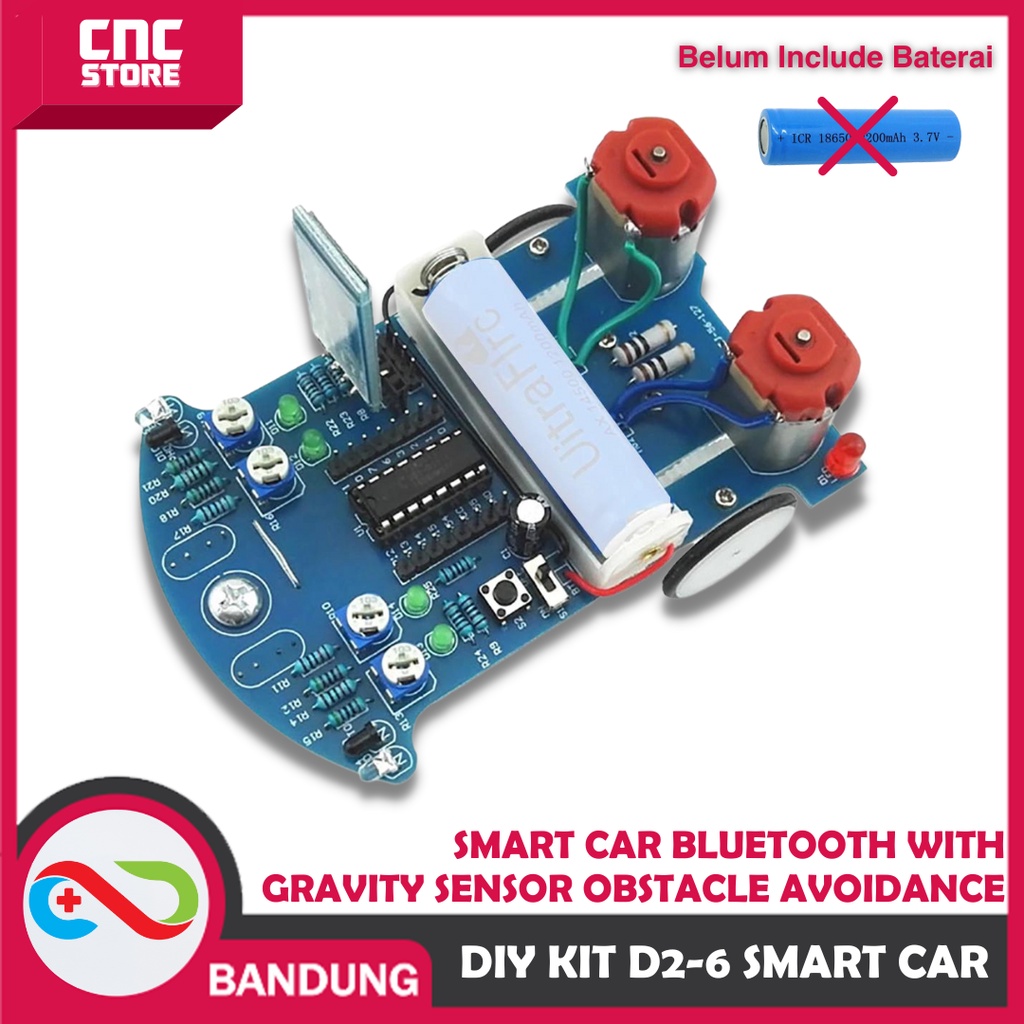

D2-6 DIY KIT SMART CAR BLUETOOTH WITH GRAVITY SENSOR OBSTACLE AVOIDANCE

Detail D2-6 DIY KIT SMART CAR BLUETOOTH WITH GRAVITY SENSOR OBSTACLE AVOIDANCE

KIT-0038
=========


Deskripsi:
====================
Sudah hadir lagi nih KIT yang cocok buat bikin line follower dan bisa juga
berbasis bluetooth dengan 2 program dengan meng switch bisa bergunta ganti
program.

Kit ini di rakit DIY dengan menyolder saja sesuai dengan panduan nya.


Kuy di order sebelum kehabisan karena stoknya sedikit

Spesifikasi:
====================

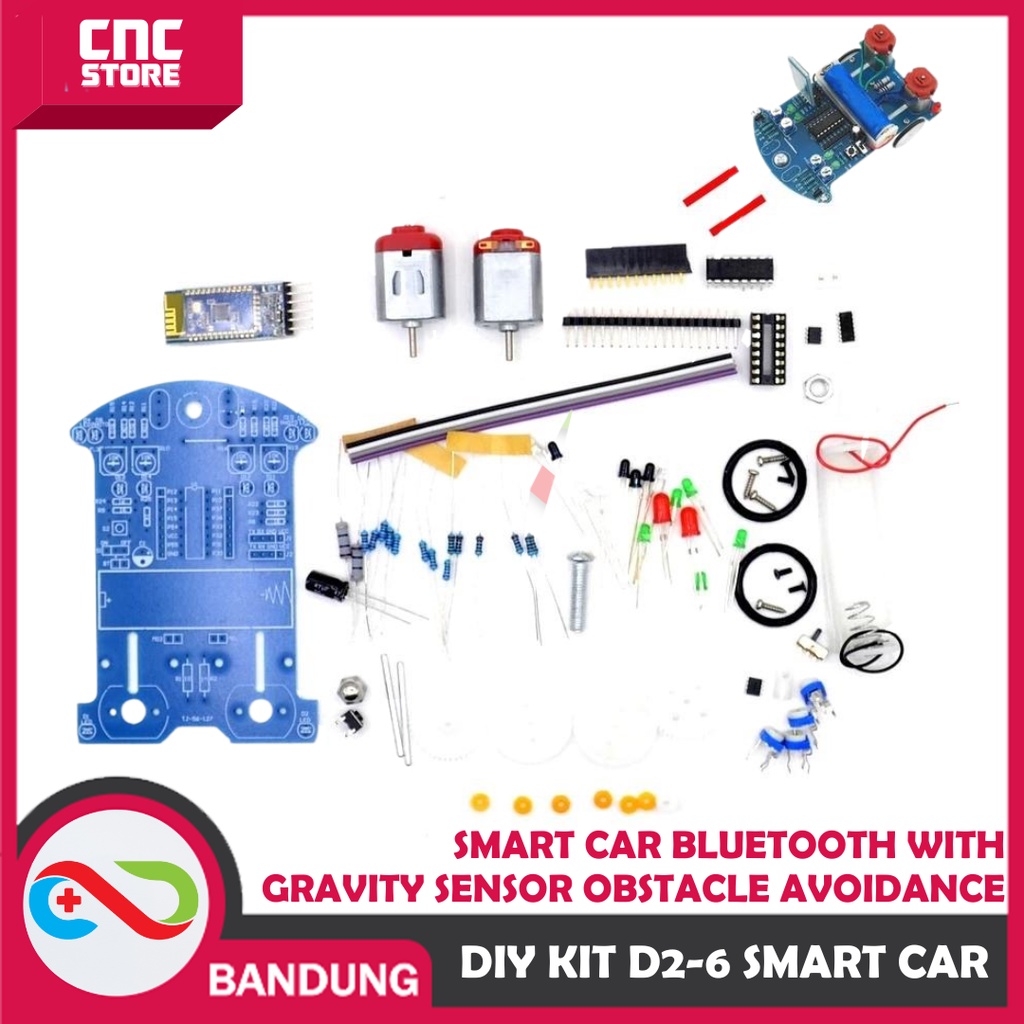

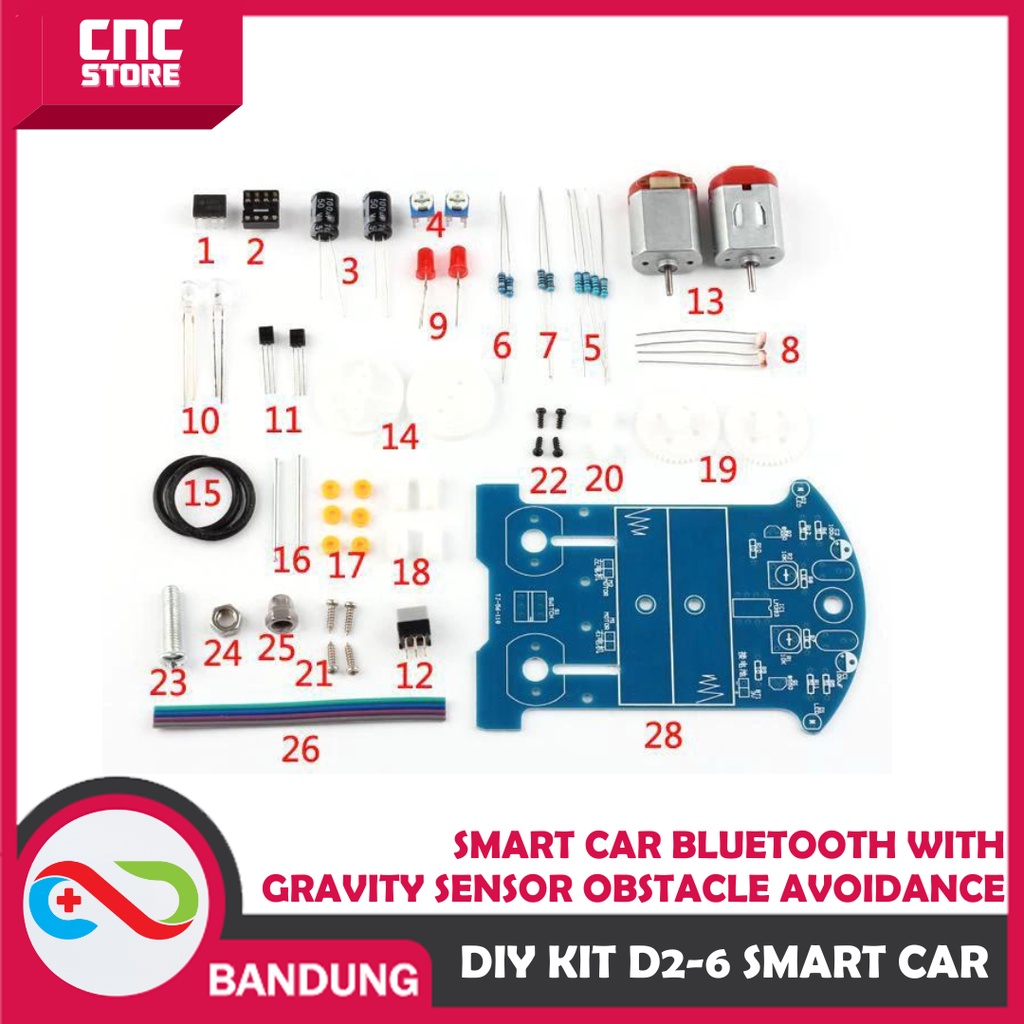

Paket yang didapat:

1>.1pcs LM393 DIP-8

2>.1pcs IC Socket DIP-8

3>.2pcs 100uF Electrolytic Capacitor

4>.2pcs 10K Potentiometer

5>.4pcs 51ohm Metal Film Resistance

6>.2pcs 1K Metal Film Resistance

7>.2pcs 10ohm Metal Film Resistance

8>.2pcs Photoresistor

9>.2pcs 5mm Red LED

10>.2pcs 5mm White LED

11>.2pcs TO-92 S8550

12>.1pcs 6*6 Self-Locking switch

13>.2pcs DC Motor

14>.2pcs Wheel

15>.2pcs Tires

16>.2pcs Axle

17>.6pcs Gasket(Non-essential)

18>.4pcs Three-way sleeve

19>.2pcs Gear

20>.2pcs Worm

21>.4pcs Screw

22>.4pcs Motor Screw(Black)

23>.1pcs Mecanum wheels Screw

24>.1pcs Mecanum wheels Nut

25>.1pcs Mecanum wheels Screw Cap

26>.4pcs 6mm Cable

27>.1pcs AA*2 Battery Case(Not shown in the picture)

28>.1pcs PCB

Spesifikasi :

1>. Model: D2-6

2>. Name: D2-6 Intelligent Tracking Car DIY Kit

3>. PCB Size:104*72*1.6mm

4>.Installation dimension:104*72*55mm

5>. Work Voltage:3V



UNTUK HARGA GROSIR CHAT US ^^

Gambar produk
