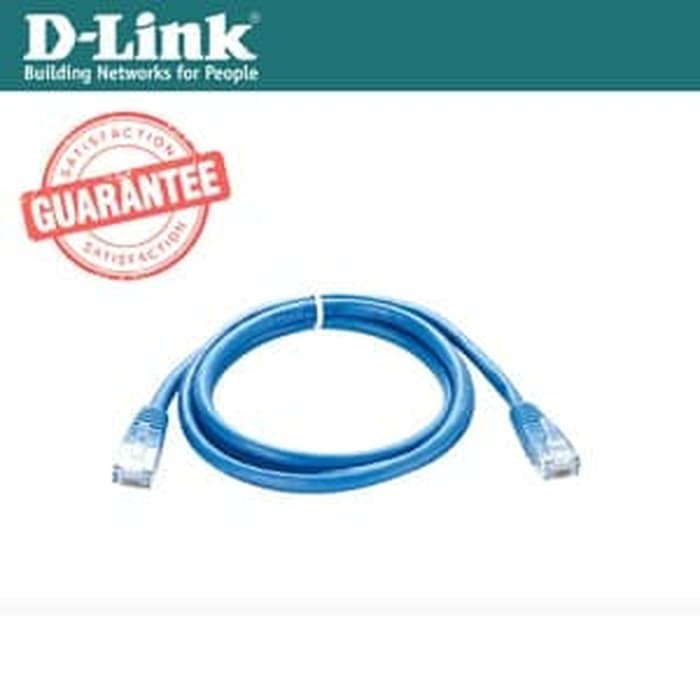

D-Link Patch Cord NCB-5EUBLUR1-1 ORI Cat5e

Detail D-Link Patch Cord NCB-5EUBLUR1-1 ORI Cat5e

Kabel LAN CAT5E Panjang 1 Meter Original D-Link untuk mempermudah aktifitas networking maintenance Anda

D-Link Patch Cord NCB-5EUBLUR1-1

Cat5E UTP 24 AWG Patch Cord,1M, Round, Blue
Type: UTP
Flat/Round: Round
AWG: 24
Category: Cat5E
Color: Blue
Length: 1m

Cable:
Category 5e UTP Patch cable
Conductor: 24 AWG(7/0.2 0.007mm), Multi-cores ( 7 cores at the least),
Conductor Metal: Bare Copper
Insulation Material: HD-PE
OD: 0.98 0.05mm
Average Thickness: 0.19 mm
Jacket hardness: 45P (90A 2A, Shore)
Material: PVC UL94V-0
OD: 5.30mm 0.2
Average Thickness: 0.50 mm
Color: BLUE 285C

Technical details:
Mutual Capacitance: 5.6nF/100m nominal
Characteristic Impedance: 10015%,1-400MHz
Nominal Velocity of Propagation: 69% Operating Temperature: -20-60(-4-140)
Storage Temperature: -20-80(-4-176)

Certifications:
UL 444 (for Copper conductor)
UL 758/ Style 2835 (for Copper, CCA, CCAM & CCS conductors)
UL 1581 (Test standard)
TIA/EIA-568B.2 (Test standard).
FCC Part 68.500 or IEC 60603-7-4 (for Modular connector)
D-Link Product Hazardous Substance Management.

Application:
10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3)
100VG-AnyLAN (IEEE802.12)
550 MHz Broadband Video
Voice, T1, ISDN
155/ 622 Mbps ATM
Power over Ethernet (POE)

Gambar produk
