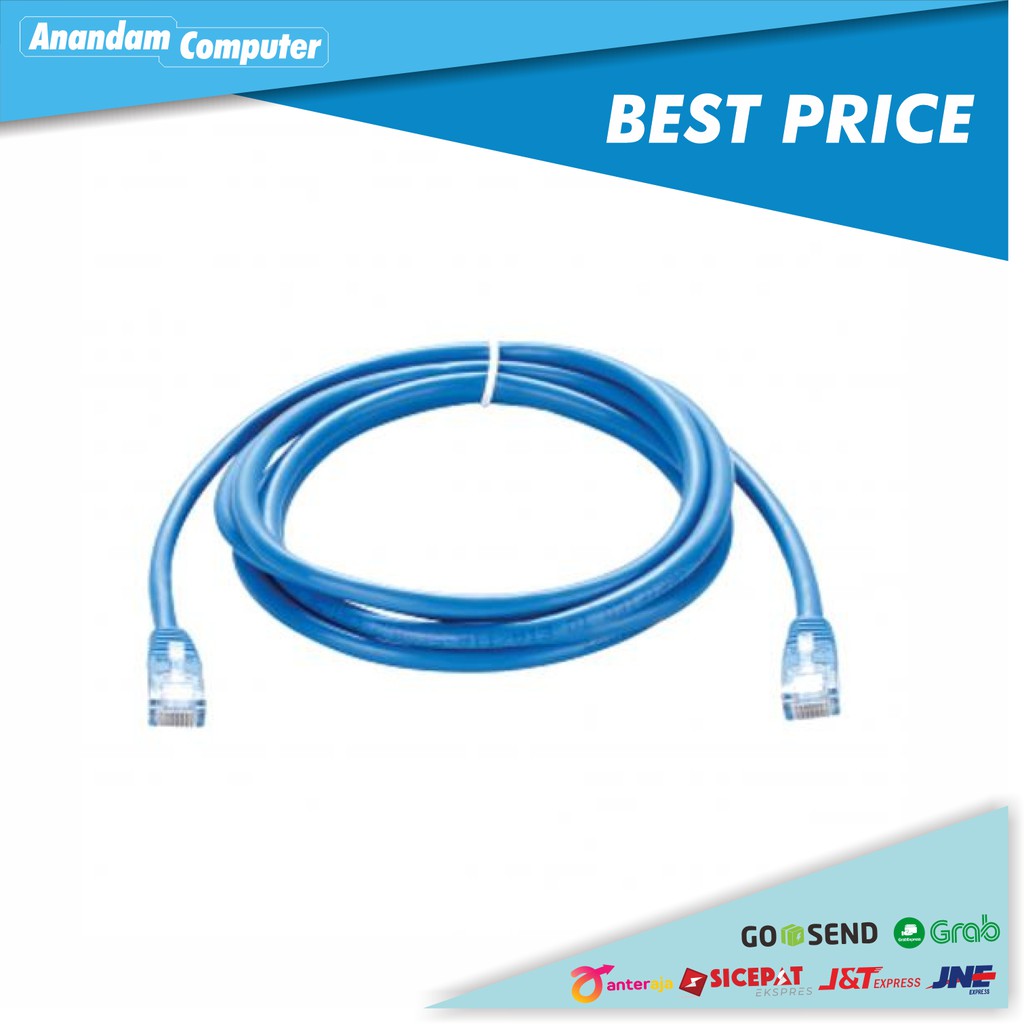

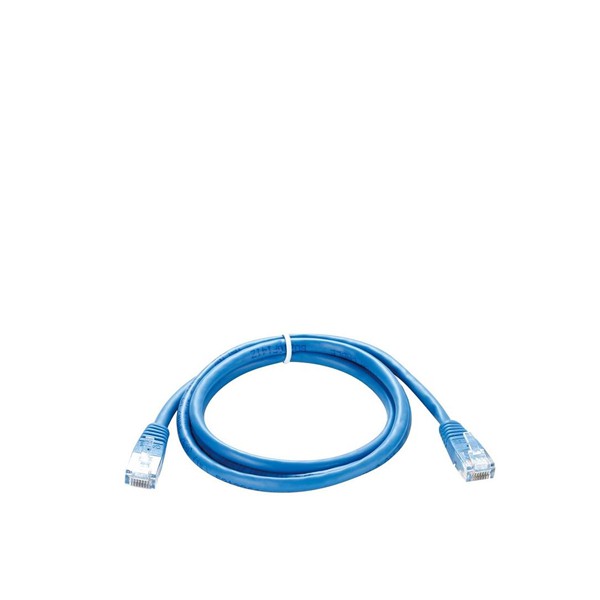

D-Link NCB-C5EUBLUR1-1 - Patch Cord UTP Cat5E 24AWG 1 meter

Detail D-Link NCB-C5EUBLUR1-1 - Patch Cord UTP Cat5E 24AWG 1 meter

*Notes
Untuk keamanan produk silahkan tambahkan buble ya
https://shopee.co.id/product/28339531/6732702209/
*Untuk keamanan produk yang cukup besar disarankan menggunakan packing kayu, untuk produk monitor, pc aio, pc build up, dan laptop wajib menggunakan packing kayu
*Packing kayu JNE gratis, tinggal dirubah berat volumetrik saja, silahkan pm ya untuk request rubah berat volumetrik
*Ekspedisi lain silahkan menambah packing kayu di
https://shopee.co.id/product/28339531/6174009421/

Specifications:
• 4 Pairs Unshielded Twisted Pair (UTP) Cable
• Conductor Metal: Bare Copper
• Color Code: Blue/Gray
• Conductor: 24 AWG
• Insulation Material: HD-PE
• Jacket Material: PVC UL94V-0
• Heat-resistant: 60OC minimum (Temperature limited)
• Flame property: The purpose of the vertical flame test is to screen out flammable wires That follow to VW-1 (UL); FT-1 (CSA), either

Modular Connector/ Plug:
• RJ-45 8P for Transparence color,
• Gold plated: 30U”
• Contact blade: Phosphor Bronze
• Temperature range: -10 ~ 80oC
• Dielectric withstanding voltage: 500V AC
• Insulation resistance: 35M Ohm (max.)
• Durability: 750 matching cycles
• Cable-to-plug tensile strength: 20lbs (89N) (min.)
• UL applications: 250V AC, 2A (max.)
• Polycarbonate (PC) UL94-V-0

Application:
• 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3)
• 100VG-AnyLAN (IEEE802.12)
• 550 MHz Broadband Video
• Voice, T1, ISDN
• 155/ 622 Mbps ATM
• Power over Ethernet (POE)

Approval:
• UL 444 (for Copper conductor)
• UL 758/ Style 2835
• UL 1581 (Test standard)
• Verified compliant with TIA/EIA-568C.2 standards by ETL, CUL listed, RoHs

Gambar produk
