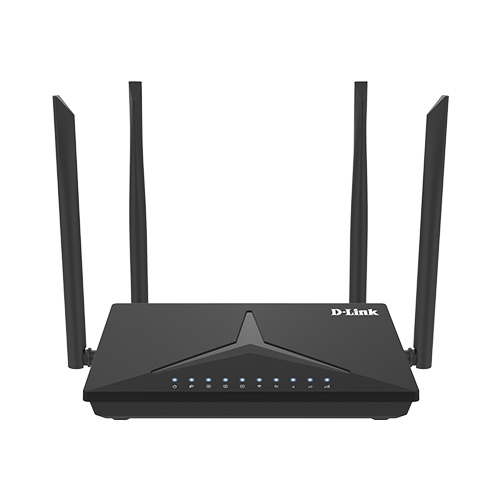

D-LINK DWR-M920 4G LTE Wireless N300 Router

Detail D-LINK DWR-M920 4G LTE Wireless N300 Router

DWR-M920
N300 4G LTE Router
• 2.4GHz up to 300Mbps
• LTE Downlink: Up to 150Mbps
• LTE Uplink: Up to 50Mbps
• 3 x 10/100Mbps LAN, 1 x 10/100Mbps WAN
• 2 x 3G/4G Antennas
• 2 x WI-FI Antennas
• Supports WAN Failover (3G/4G & Wired broadband connection)
• In-built VPN Client for secure connection

SPECIFICATION :
Frequency Support • 4G LTE Band:
FDD : 1/3/5/7/8/20 (2100/1800/850/2600/900/800Mhz)
TDD : 38/40/41 (2600/2300/2500 Mhz)
• WCDMA: (2100,900/850 Mhz)
• GSM: 900/1800 Mhz

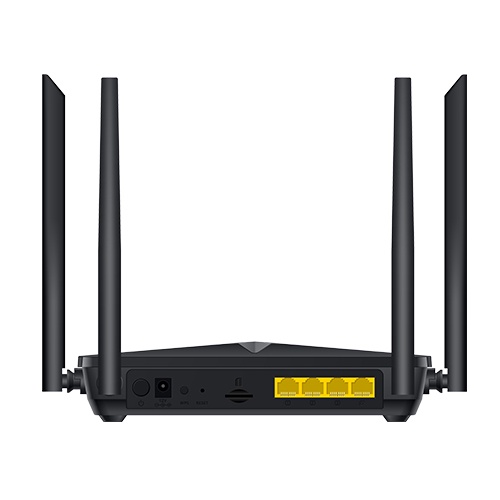

Device Interfaces • 1x 10/100 Fast Ethernet WAN port
• 3x 10/100 Fast Ethernet LAN ports
• 1x Reset button
• 1 x WPS button
• 1 x Power jack
• 2 x 3dBi external LTE antennas
• 2 x 3dBi external 2.4G antennas
• 1x WPS button
• 1 x Power switch
• 1x LTE Interface
Data Rates • 2.4GHz up to 300Mbps
Standards • 802.11b/g/n
Wi-Fi Data Rates • HT20: up to 144 Mbps
• HT40: up to 300 Mbps
Wireless Encryption • Wi-Fi Protected Setup (WPS)
• WPA/WPA2/128-bit wireless encryption
• 64/128-bit WEP (Wired Equivalent Privacy)
• Wireless ACL MAC address filtering
Firewall • Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
Advanced Features • WAN fail over
• Port forwarding
• IPsec VPN pass through
• QoS Flow Control
• TR-069 remote management
• DMZ
• IGMP proxy and MLD for IPTV
• DHCP server, DHCP client
Dimensions • 192x 118x 31 mm (W x D x H)
Weight • 322g
Power • Input: 100 ~ 240 V
• Output: 12 V / 1A
Temperature • Operating: 0°C to 40°C
• Storage: -40°C to 70 °C
Humidity • Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing
Certifications • CE
• RoHS
• UL
