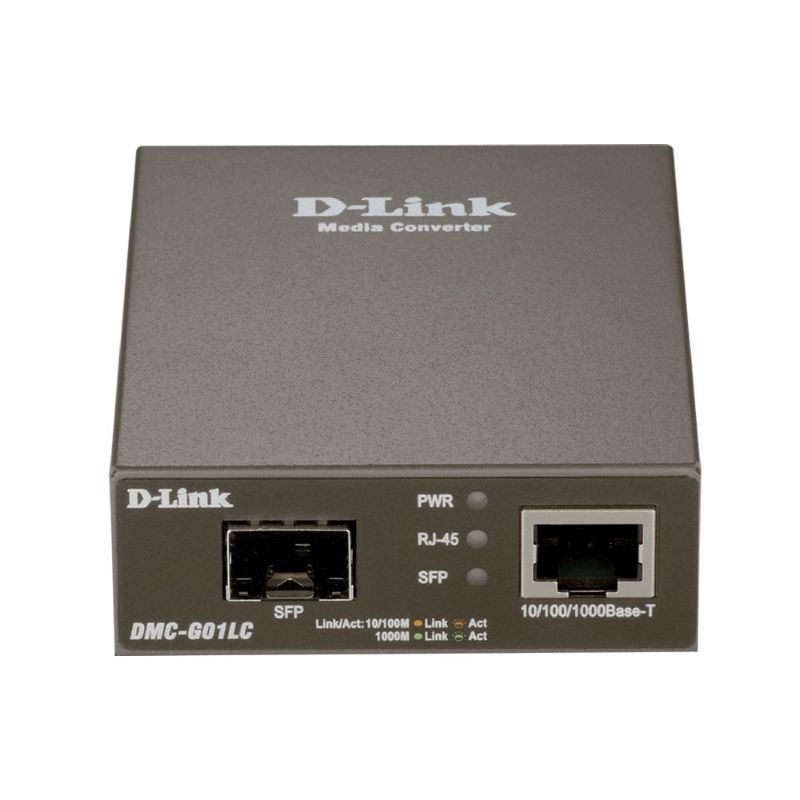

D-Link DMC-G01LC Converter SFP to Gigabit Ethernet Media Converter

Detail D-Link DMC-G01LC Converter SFP to Gigabit Ethernet Media Converter

Technical Specifications
General
Maximum Forwarding Rate 10 Mbps: 14, 880 pps
100 Mbps: 148,800 pps
1000 Mbps: 1,488,000 pps
Forwarding mode
Cut-Through

Packet Buffer Memory : 256 Kbits

Switching Capacity : 2 Gbps

Physical and Environmental
External Power Adapter : Switching 5V/1A Level V Power Adapter, ErP compliant

Power Consumption (Max.) at 240 V
DC 2.34 W
AC 3.46 W

Power Consumption (Standby) at 240 V
DC 1.49 W
AC 2.06 W

Heat Dissipation
11.81 BTU/h (Max.)
7.75 BTU/h (Standby)

Dimensions (L x W x H)
3.74 x 2.76 x 0.98in. / 95 x 70 x 25mm

MTBF (hours)
506,711

Operation Temperature
32 to 122 F / 0 to 50 C

Storage Temperature
14 to 158 F / -10 to 70 C

Operating Humidity
10 to 90%

Storage Humidity
5 to 90%

Emissions (EMI) and Safety Certifications
EMI
EMI: CE class A, FCC class A, VCCI class A, BSMI class A

Safety
LVD, UL/cUL

Features
LAN 1 x 10/100/1000 Mbps port
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
Auto-Negotiation for each port
Full-Duplex operation at 1000 Mbps
Half/Full-Duplex operation at 10/100 Mbps
Back pressure at Half-Duplex operation
Auto MDI/MDIX
Wire speed reception and transmission
Supports Jumbo frames up to 9216 bytes at 1000 Mbps
LLR (Link Loss Return)
LLCF (Link Loss Carry Forward)
