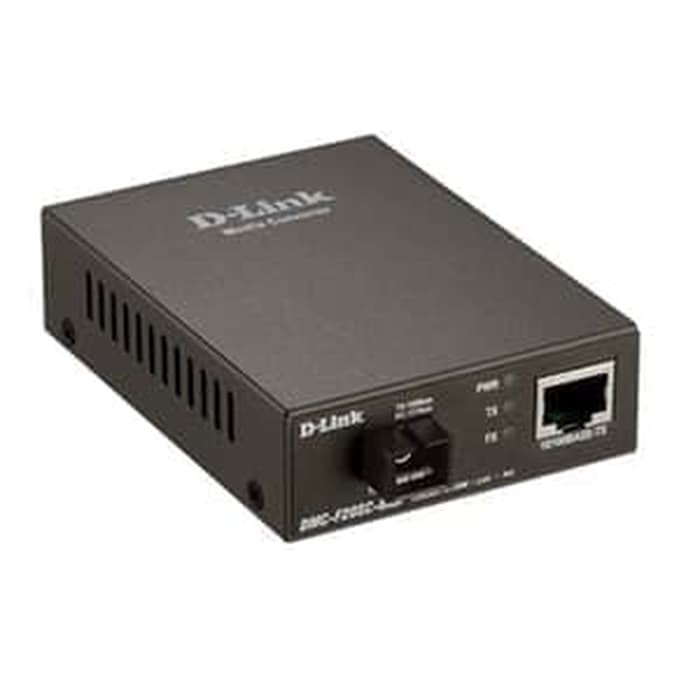

D-LINK DMC-F20SC-BXD ETHERNET TO FIBER SC SINGLEMODE MEDIA CONVERTER

Detail D-LINK DMC-F20SC-BXD ETHERNET TO FIBER SC SINGLEMODE MEDIA CONVERTER

10/100BASE-TX to 100BASE-FX SC Single-mode Media Converter (TX 1550 nm, RX 1310 nm, 20 km)

Max. Forwarding Rate
10 M: 14, 880 pps
100 M: 148,800 pps

Forwarding mode
Cut-Through

Packet Buffer Memory
128 Kbits

Switching Capacity
2 Gbps

LAN
1 x 10/100 Mbps port
IEEE 802.3u
IEEE 802.3x
Auto-Negotiation for each port
Half/Full-Duplex operation at 10/100 Mbps
Back pressure at Half-Duplex operation
Auto MDI/MDIX
Wire speed reception and transmission

Physical Parameters
External Power Adapter
Switching 5V/1A Level V Power Adapter, ErP compliant

Power Consumption (Max.) at 240 V
DC 1.42 W
AC 2.17 W

Power Consumption (Standby) at 240 V
DC 0.96 W
AC 1.55 W

Dimensions 95 x 70 x 25 mm

D-Links Standalone Media Converters turn an Ethernet connection into fiber, allowing for ultra-fast long distance connections. Installation of a Standalone Media Converter is simple, and allows you to tap into fiber speeds with ease. Instead of requiring an investment in an entire chassis, the standalone series is able to provide the same high-quality conversion on a unit-by-unit basis. The standalone nature of these means that you can use save space and cut costs while still extending your network over long distances up to 60 km on a fiber-optic line. In addition to all models supporting 10/100 Mbps Half/Full-duplex, the DMC-G01LC also allows for 1000 Mbps Full-Duplexing, letting you truly maximize your networks potential.

Extend Your Network
Fiber-optic speeds are critical to success, but twisted-pair cabling can only go so far. Using D-Links converters you can change a twisted-pair Fast Ethernet connection into a single-mode or multi-mode fiber connection that can go much farther. Converters for distances of anywhere from 2 km to 60 km allow you to optimize your selection.

Plug & Play
