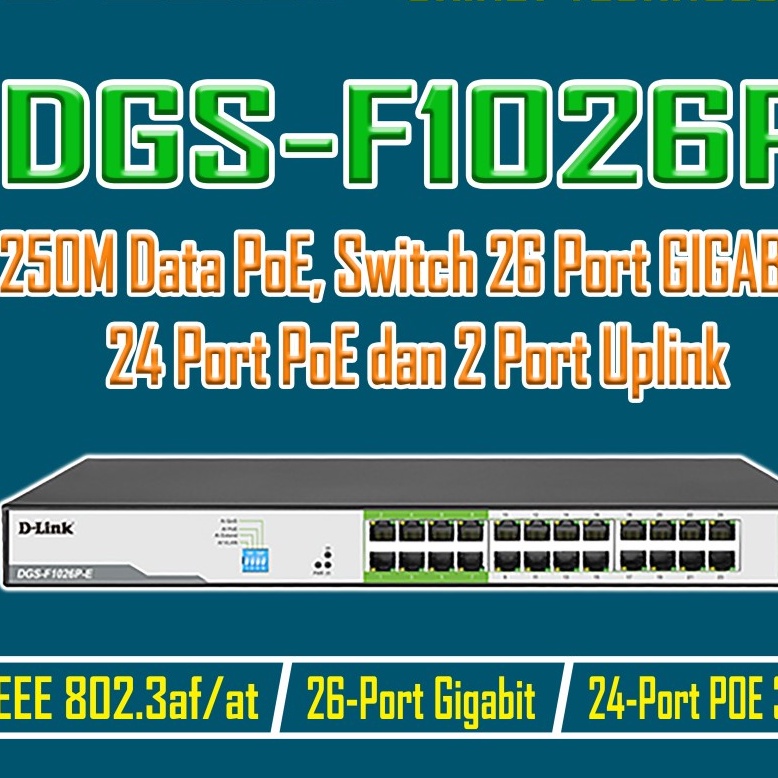

D-LINK DGS-F1026P-E 250M Data PoE, Switch 26 Port 10/100/1000 Mbps

Detail D-LINK DGS-F1026P-E 250M Data PoE, Switch 26 Port 10/100/1000 Mbps

D-LINK DGS-F1026P-E 250M Data PoE, Switch 26 Port 10/100/1000 Mbps

Size • Desktop (with Mounting Kit)
Interfaces • 24 10/100/1000 BASE-T ports
• 2 SFP
Standards • IEEE 802.3ad,LACP；
• IEEE 802.3u,Fast Ethernet standard；
• IEEE 802.3ab,Gigabit Ethernet standards
• IEEE 802.3ab,Gigabit Ethernet standards • IEEE 802.3x,Full-duplex Ethernet data link layers；
• IEEE 802.3af/at ,Ethernet power supply POE standard；
• IEEE 802.3az ,EEE,Energy efficient Ethernet standard；
• IEEE 802.3z ,Gigabit Ethernet fiber-optic standard；
Media Interface Exchange • Auto MDI/MDI-X adjustment on all ports
Lighting Protection • 6KV
Switching Fabric • 52 Gbps
Transmission Method • Adopt Store-and-forward
Data Transfer Rates • Gigabit Ethernet
• 1000 Mbps
• Fast Ethernet
• 100 Mbps
Packet Filtering / Forwarding Rates • 10M port maximum 14800pps
• 100M port maximum 148800pps
• 1000M port maximum 1488000pps
PoE Standards • IEEE 802.3af
• IEEE 802.3at
PoE-Capable Ports • Port 1 - 24 (Port 1 - 8 PoE can support up to 250m @ 10Mbps with Extend enabled)
Power Budget • 250 W (30 W max. per PoE port)
LED Power • Yes
LED Link/Activity • Yes
Weight • 3kg
Dimensions • 440 x 180 x 44 mm
Power • External power adapter: 250W
Temperature • Operating: 0 to 40 ˚C (32 to 104 ˚F)
Humidity • Operating: 0% to 95% RH non-condensing
• Storage: 0% to 95% RH non-condensing
Safety • LVD
EMI/EMC • CE
• FCC
