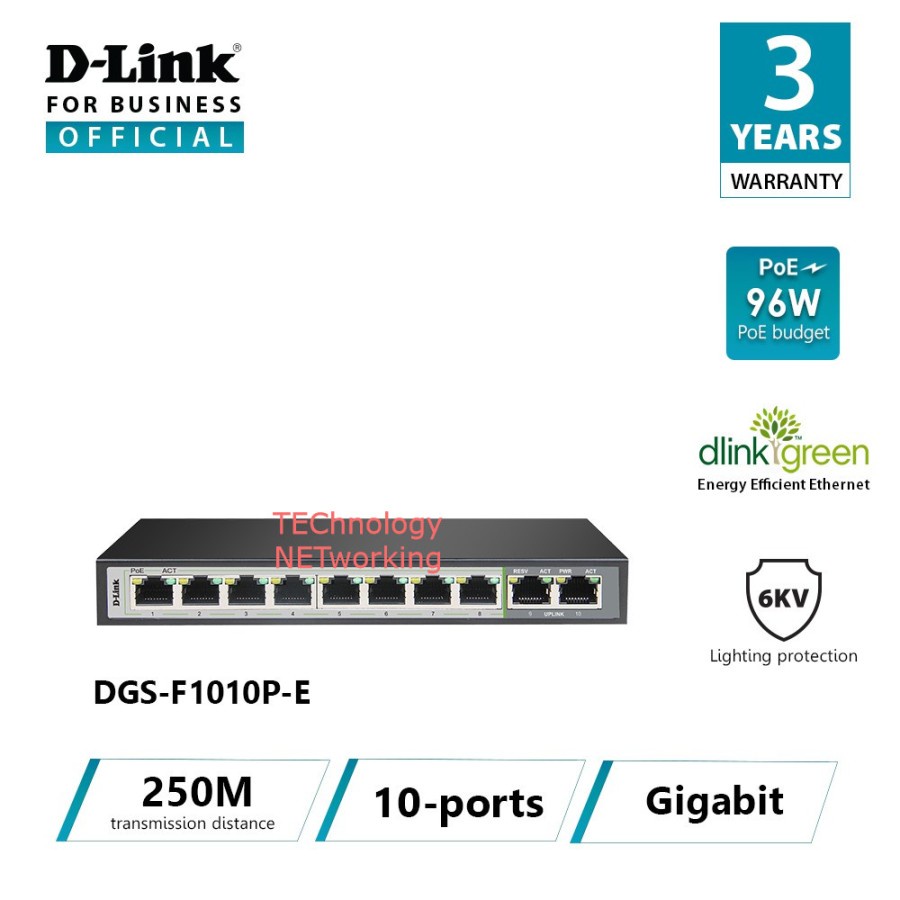

D-LINK DGS-F1010P-E : D-Link 8 Port Gigabit PoE & 2 Up Link Switch

Detail D-LINK DGS-F1010P-E : D-Link 8 Port Gigabit PoE & 2 Up Link Switch

• 8 port PoE 10/100/1000 Mbps
• 2 port uplink 10/100/1000 Mbps
• 96 Watt PoE Budget
• Mendukung Standar PoE IEEE 802.3af dan 802.3at
• Mendukung jarak transmisi data dan PoE hingga 250 Meter
• Mendukung proteksi lonjakan listrik sampai dengan 6KV
• Mendukung isolasi port klien dan QoS
• Kemudahaan instalasi Plug & Play


Specifications
Size : Desktop
Interfaces :
• 8 10/100/1000 BASE-T ports
• 2 10/100/1000 BASE-T Uplink ports
Standards :
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x ow control
Media Interface Exchange : Auto MDI/MDI-X adjustment on all ports
Lighting Protection : 6KV
Switching Fabric : 2 Gbps
Transmission Method : Adopt Store-and-forward
Data Transfer Rates :
• Gigabit Ethernet
• 1000 Mbps
• Fast Ethernet
• 100 Mbps
Packet Filtering / Forwarding Rates :
• 10M port maximum 14800pps
• 100M port maximum 148800pps
• 1000M port maximum 1488000pps
PoE Standards :
• IEEE 802.3af
• IEEE 802.3at
PoE-Capable Ports : Ports 1 to 8
Power Budget : 96 W (30 W max. per PoE port)
LED Power : Yes
LED Link/Activity : Yes
Power : External power adapter: 96W
Temperature : Operating: 0 to 40 ˚C (32 to 104 ˚F)
Humidity :
• Operating: 0% to 95% RH non-condensing
• Storage: 0% to 95% RH non-condensing
Safety : LVD
EMI/EMC :
• CE
• FCC
