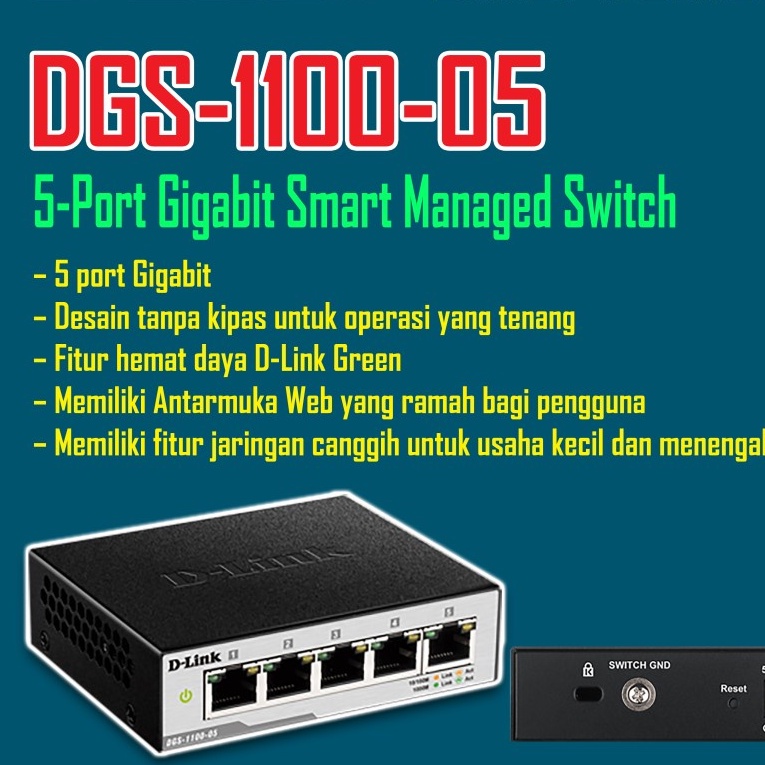

D-Link DGS-1100-05 V2 5Port Gigabit Switch

Detail D-Link DGS-1100-05 V2 5Port Gigabit Switch

DGS-1100-05V2

Switching features
Switching Capacity : 10Gbps
Maximum Forwarding Rate : 7.44Mpps
MAC Address Table Size : 8K Entries
Packet Buffer : 1Mbit
Manageable : Yes
Power Supply : External Power Adapter(Output: 5.0VDC / 0.6A)
Input Voltage : 100 to 240 V AC; 50 to 60 Hz External Power Adapter
Ports : 5 10/100/1000 Gigabit ports
Flash Memory : 2MB
Port Functions : IEEE 802.3 compliant; IEEE 802.3u compliant; Supports half/full-duplex operation (half at 10/100Mbps, full at 1000Mbps); Auto-negotiation; Auto MDI/MDIX; IEEE 802.3x Flow Control supports Full-Duplex mode; IEEE 802.3az compliant
LEDs : Power (per device); Link/Activity/Speed (per port)
VLAN : Port-based VLAN; 802.1Q Tagged VLAN; Surveillance VLAN; Voice VLAN; Management VLAN; VLAN Group : Supports 32 static VLAN groups, Max. 4094 VIDs
L2 Features : MAC Address Table: 8K; Flow Control : 802.3x Flow Control, HOL Blocking Prevention; Jumbo Frames up to 9216 Bytes; IGMP Snooping : IGMP v1/v2 Snooping, Supports 32 Groups;
Link Aggregation : 1 group, 2-4 ports per group; Loopback Detection; Cable Diagnostics;
Port Mirroring : One-to-One;
Statistics : Tx Ok, Tx Error, Rx Ok, Rx Error
Quality of Service (QoS) : 802.1p Quality of Service; 4 queues per port; Queue Handling : Strict, Weighted Round Robin (WRR); Bandwidth Control : Port-based (Ingress/Egress, min. granularity 8Kb/s)
Security : Static MAC Address : Up to 32 entries; Broadcast/Multicast/Unknown Unicast Storm Control
Management : Web-based GUI (Supports IPv4); SmartConsole Utility
