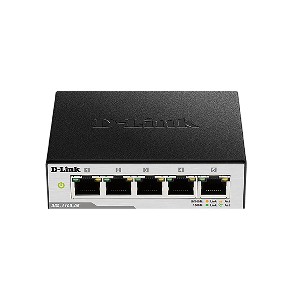

D-Link DGS-1100-05 EasySmart 5-Port Gigabit Switch

Detail D-Link DGS-1100-05 EasySmart 5-Port Gigabit Switch

D-LINK DGS-1100-05
Smart Managed 5-Port Gigabit Switch

Features:
~ Gigabit Speeds 5 x 10/100/1000 ports
~ Built to Last Metal desktop housing
~ Easy to Manage Web GUI interface
~ Essential L2 Switching Features VLAN, QoS, IGMP Snooping and more
~ Security Functions Static Mac, Storm Control and more

Device Interfaces:
~ 5 x 10/100/1000 Mbps Ports

Port Standard & Functions:
~ IEEE 802.3, 802.3u, 802.3ab compliant
~ IEEE 802.3x Flow Control
~ IEEE 802.3az EEE compliant
~ Half/Full-duplex operation at 10/100Mbps
~ Full-duplex operation at 1000Mbps
~ Auto-Negotiation for each port
~ Auto MDI/MDIX

~ Switching Capacity 10Gbps
~ Max. Forwarding Rate 7.44 Mpps
~ MAC Address Table Size 8K Entries
~ Packet Buffer 1Mbits
~ Forwarding Mode Store and Forward
~ External Power Supply 5V 1A
~ Max. Power Consumption 3.35 W
~ Standy Power Consumption 1.0 W
~ Ventilation Fanless
~ Heat Dissipation 11.4 BTU/hr
~ Dimensions : 141 x 85 x 28mm

Temperature:
~ Operating: 0 to 40C
~ Storage: -40 to 70C

Humidity:
~ Operating: 0% to 95% non-condensing
~ Storage: 5% to 95% non-condensing
