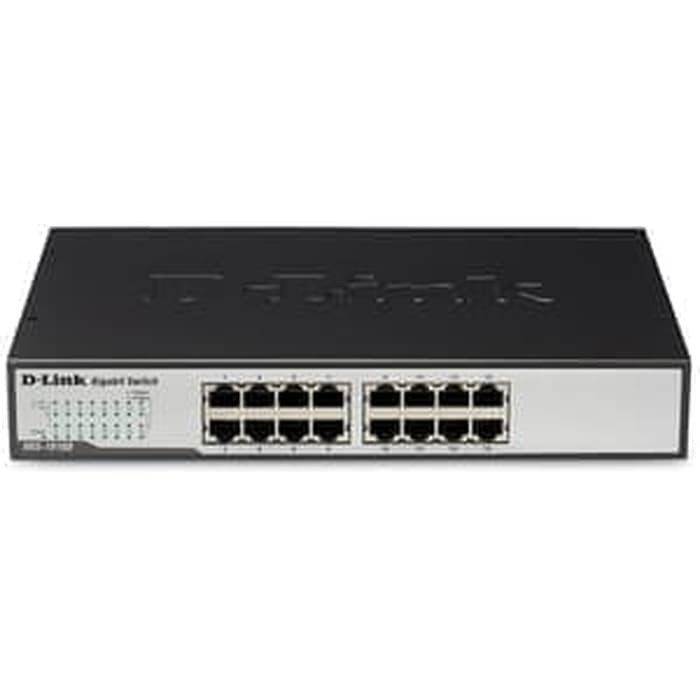

DLINK DGS-1016D 16-Port Gigabit Unmanaged Desktop Switch DGS-1016C M

Detail DLINK DGS-1016D 16-Port Gigabit Unmanaged Desktop Switch DGS-1016C M

Key Features
D-Link Green Technology
Power saving by cable length detection and link status
Inexpensive Gigabit solution for SOHO/SMB
Silent, fanless design
Auto MDI/MDI-X crossover for all ports
Store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast
Ethernet speeds
IEEE 802.3x Flow Control
Supports 9,600Bytes Jumbo Frames
Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
Supports Cable Diagnostics Function
Supports D-Links unique EEE+ mode
RoHS compliant
Plug-and-play installation

Number of Ports
16 Gigabit ports

Switching Fabric
32 Gbps switching fabric

Standards
IEEE 802.3 10BASE-T Ethernet (twistedpair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS (4 queues, strict mode)
IEEE802.3az EEE

Protocol
CSMA/CD

Data Transfer Rates
Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Gigabit Ethernet:
2000 Mbps (full duplex)

Network Cables
10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX, 1000BASE-T:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange
Auto MDI/MDI-X adjustment for all ports

LED Indicators
Per port: Link/Activity/Speed
Per device: Power

Transmission Method
Store-and-forward

Dimensions
280 x 180 x 44 mm (11.02 x 7.09 x 1.73 inches)
