D-LINK DGS 1008A 8 Port DLINK DGS1008A Gigabit Switch

Detail D-LINK DGS 1008A 8 Port DLINK DGS1008A Gigabit Switch

SWITCH 8 PORTS GIGABIT DLINK DGS1008A

Device Interfaces : • 8 x 10/100/1000 Gigabit LAN ports

Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair

copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
• • ANSI/IEEE 802.3 NWay auto-negotiation
• • IEEE 802.3x Flow Control
• • IEEE 802.3az Energy-Efficient Ethernet (EEE)
Advanced Features

• Green Ethernet
• 16 Gbps switching fabric
• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• IEEE 802.3x Flow Control
• Supports 9,216 bytes Jumbo Frames
• Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
Data Transfer Rates
• Ethernet:
• 10 Mbps (half duplex)
• • 20 Mbps (full duplex)

Fast Ethernet:
• 100 Mbps (half duplex)
• 200 Mbps (full duplex)
• Gigabit Ethernet:
• 2000 Mbps (full duplex)
Transmission Method : • Store-and-forward
MAC Address Table : • 4 K
MAC Address Learning : • Automatic Update
RAM Buffer : • 192 KB per device

LED Indicators
• Per port: Link/Activity/Speed
• • Per device: Power

Media Interface Exchange : • Auto MDI/MDIX adjustment for all ports
Dimensions : • 130 x 79 x 22 mm (5.12 x 3.11 x 0.87 inches)
Weight : • 130 grams (4.59 ounces)
Power : • 5 V/1 A Power Adapter

Power Consumption :
• Power On (Standby): AC input: 0.4 watts
• Maximum : AC input: 2.55 watts

Temperature :
• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -10 to 70 °C (14 to 158 °F)

Humidity :
• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing
MTBF : • 1,046,811 hours

Certifications :
• CE class B
• FCC class B
• ICES-003 Class B
• Anatel
• VCCI class B
• RCM
• CB/LVD

Garansi Resmi 1 Tahun

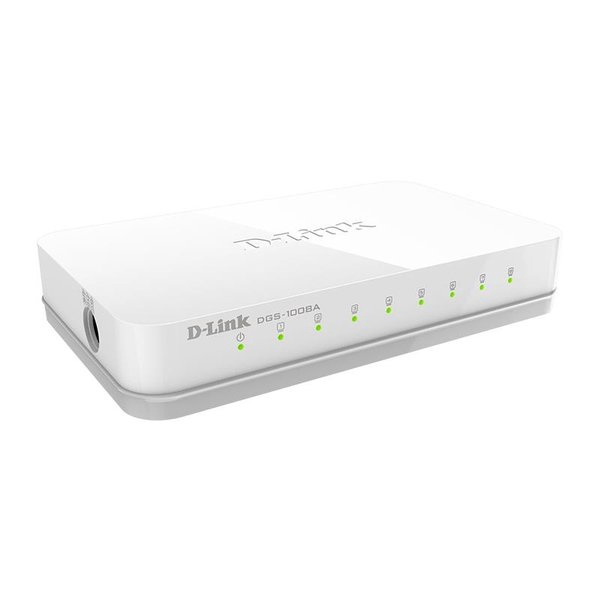

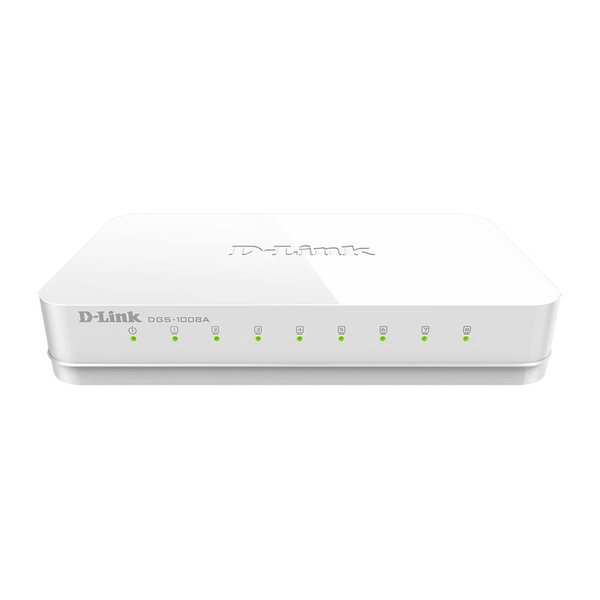

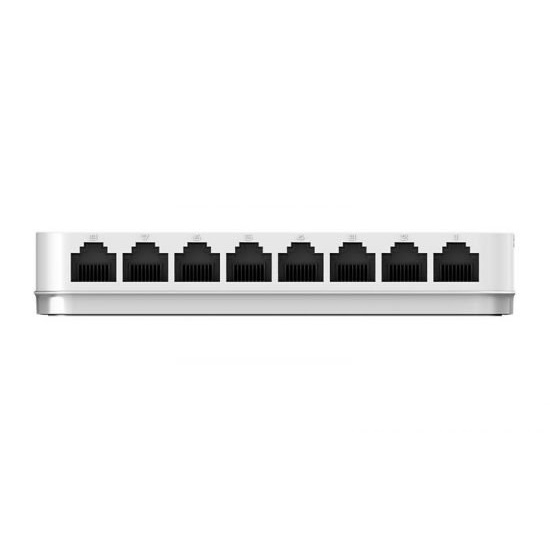

Gambar produk
