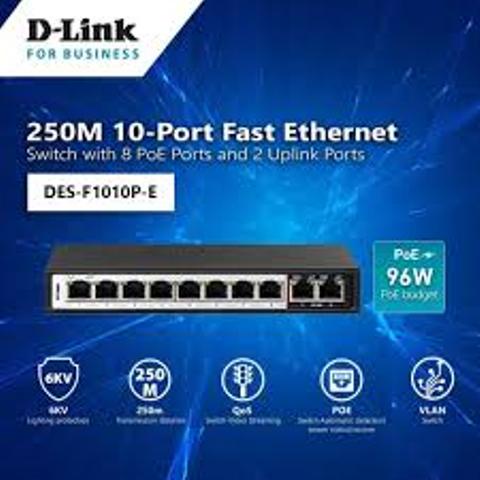

D-Link DES F1010P-E,Switch Hub 10 Port 10/100Mbps with 8 Port PoE and 2 Port Uplink

Detail D-Link DES F1010P-E,Switch Hub 10 Port 10/100Mbps with 8 Port PoE and 2 Port Uplink

D-Link DES F1010P-E,Switch Hub 10 Port 10/100Mbps with 8 Port PoE and 2 Port Uplink

• 8 port PoE 10/100 Mbps
• 2 port uplink 10/100Mbps
• 96 Watt PoE Budget
• Mendukung Standar PoE IEEE 802.3af dan 802.3at
• Mendukung jarak transmisi data dan PoE hingga 250 Meter
• Mendukung proteksi lonjakan listrik sampai dengan 6KV
• Mendukung isolasi port klien dan QoS
• Kemudahaan instalasi Plug & Play

Didesain Untuk Kebutuhan Anda
Solusi PoE yang tangguh dan hemat biaya untuk menyediakan daya bagi perangkat PoE Anda seperti IP Camera, VoIP, AP, dll.

Specifications :
Size • Desktop
Interfaces
• 8 10/100 BASE-T ports
• 2 10/100 BASE-T Uplink ports
Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x ow control
Media Interface Exchange • Auto MDI/MDI-X adjustment on all ports
Lighting Protection • 6KV
Switching Fabric • 2 Gbps
Transmission Method • Adopt Store-and-forward
Data Transfer Rates • Fast Ethernet
• 100 Mbps
• Ethernet
• 10 Mbps
Packet Filtering / Forwarding Rates
• 10M port maximum 14800pps
• 100M port maximum 148800pps
PoE Standards
• IEEE 802.3af
• IEEE 802.3at
PoE-Capable Ports • Ports 1 to 8
Power Budget • 96 W (36 W max. per PoE port)
LED Power • Yes
LED Link/Activity • Yes
Dimensions • 184 x 75 x 27 mm
Power • External power adapter: 60W
Temperature • Operating: 0 to 40 ˚C (32 to 104 ˚F)
Humidity • Operating: 0% to 95% RH non-condensing
• Storage: 0% to 95% RH non-condensing
