D-Link DES-1016A 16-Port Fast Ethernet Switch

Detail D-Link DES-1016A 16-Port Fast Ethernet Switch

Technical Specifications
General
Standards
IEEE 802.3 10BASE-T Ethernet (twisted pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x flow control
LAN
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX compliance
IEEE 802.3x Flow Control support
Data Transfer Rates
Fast Ethernet
100 Mbps Half-Duplex
200 Mbps Full-Duplex
Ethernet
10 Mbps Half-Duplex
20 Mbps Full-Duplex
Functionality

Switching Capacity
4.8 Gbps
Number of Ports
24 10/100Mbps Fast Ethernet ports
Network Cables
10BASE-T:
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
LED Indicators
Per port:
Link/Activity
Per device:
Power
Transmission Method
Store-and-forward
MAC Address Table
8K entries per device
MAC Address Learning
Automatic update
Packet Filtering /Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Topology
Star
Protocol
CSMA/CD
Physical

Dimensions
11.0 x 5.0 x 1.7 inches (280 x 125.8 x 44 mm)
Weight
3.652lbs (1.66kg)
Power Consumption
Power On (Standby):
DC input: 1.33 Watts
AC input: 2.39 Watts
Maximum:
DC input: 5.50 Watts
AC input: 8.07 Watts
Heat Dissipation
Power On (Standby):
AC input: 8.16 BTU/h
Maximum:
AC input: 27.54 BTU/h
MTBF
810,880 hours
Temperature
Operating: 32 to 104 F (0 to 40 C)
Storage: 14 to 158 F (-10 to 70 C)
Humidity
Operating: 10% to 90% non-condensing
Storage: 5% to 90% non-condensing
Certifications
CE
FCC
ICES-003
C-Tick
cUL
CB

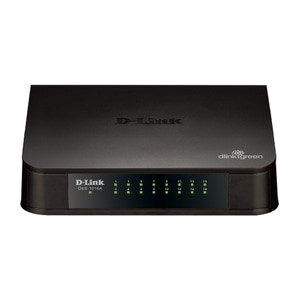

Gambar produk
