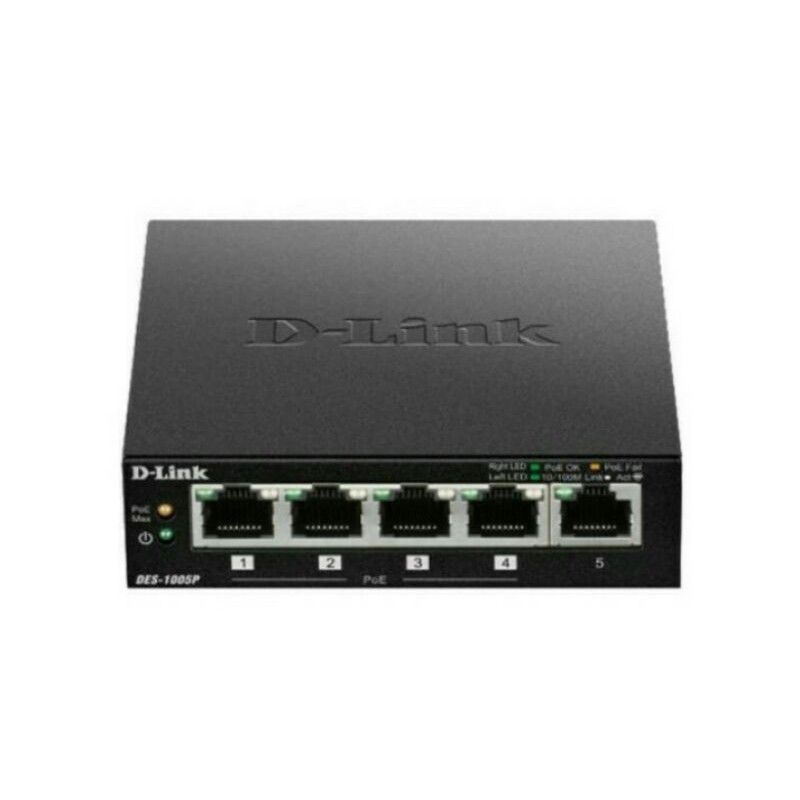

D-Link DES-1005P 5-Port PoE Switch Unmanaged Fast Ethernet

Detail D-Link DES-1005P 5-Port PoE Switch Unmanaged Fast Ethernet

100Base-TX Interface 1

100Base-TX PoE Interface 4

Auto MDI/MDIX Yes

Switching Capacity 1 Gbps

Max. Packet Forwarding Rate 0.74 Mpps

Store & Forwarding Forwading Yes

Dimension 100 x 98 x 28 mm

Weight 0.26 kg

Operation Temperature 0 ~ 40 °C

Storage Temperature - 10 ~ 70 °C

Storage Humidity 0% ~ 95% RH

Operation Humidity 0% ~ 95% RH

Operating Altitude 2000m

Maximum Power Consumption PoE on: 63.26W; PoE off: 3.61W

Standby Power Consumption 0.68W

Maximum Heat Dissipation 2.3203 BTU/hr

Acoustic 0 dB

MTBF 311,081 hours

Power Input DC: 53.5V 1.2A

Flash Memory Size 1KB

Packet Buffer Size 64KB

FAN Fanless

Comply with RoHS 6 Yes

Energy Efficiency Ethernet (EEE) Yes

Power Saving By Link Status Yes

Power Saving By Cable Length Yes

Maximum PoE Budget 60W

MAC Address Table Size 2K

802.3x Flow Control Yes

Number of Queue 4

Two Rate Three Color Marker (trTCM) Yes

Surge/Lightning Protection (AC Power Inet) 2Kv (Line to earth)

Surge/Lightning Protection (All Ethernet Ports) 1Kv

Air Discharge 8Kv

Contact Discharge 4Kv
