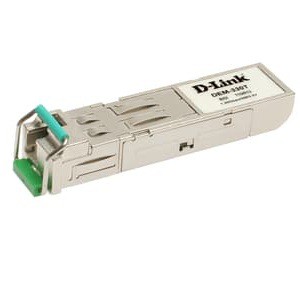

D-Link DEM-330T Gigabit SFP Transceivers

Detail D-Link DEM-330T Gigabit SFP Transceivers

Deskripsi Produk
The DEM-330T/330R and DEM-331T/331R Bidirectional Gigabit SFP Fiber Transceivers are external transceivers designed for insertion in SFP (Small Form-Factor Pluggable) slots of network devices for transmission and reception of data signals on the fber cables. These transceivers provide the Gigabit operation and physical compactness to deliver the speed, reliable long-distance data transfer, and deployment fexibility that todays fber networks require.

Ideal for Long Distance Application
The DEM-330T/330R and DEM-331T/331R transceivers can be used to connect together switches, servers and fber modules on a campus or metropolitan area network (MAN). Providing up to 10 km (DEM-330T/330R) or 40 km (DEM-331T/331R) of fber cable distance, these highly integrated transceivers offer low jitter performance for extended optical link support without any degradation in performance.

Reliable Transmission
The DEM-330T/330R and DEM-331T/331R transceivers combine transmitting and receiving signals onto one fber strand using two wavelengths. These transceivers are used in pair. At one end, one transceiver uses one wavelength to transmit and a second wavelength to receive. At the other end, the other transceiver fips that relationship.

Standard Compliance
The DEM-330T/330R and DEM-331T/331R transceivers use standard simplex LC connectors for fber cable connection. They conform to industry standards and are interoperable with D-Link Gigabit switches. Hot-swap capability allows network administrators to plug or unplug them from the SFP slots without having to
turn off the power of the connected device.

Gigabit SFP Transceivers (Single Mode)
IEEE 802.3z -1000BASE-BX-U
LC Connector
Single mode 9/125m : 10km
Wavelength 1550nm (TX) / 1310nm (RX)
