Cytron Maker Drive : Simplifying H-Bridge Motor Driver for Beginner

Detail Cytron Maker Drive : Simplifying H-Bridge Motor Driver for Beginner

Hi #RekanEasyWare ...
- SKU: CYT0002

Brushed motor is the most widely used motor because it is easy to use. Just supply the two terminals with DC power, the motor will start rotating! If you want to control its speed and direction using a controller, usually you will use an L298N Motor Driver. But if you want an easy and beginner-friendly motor driver, you are on the right page! Maker Drive is designed for simplicity and with the beginner in mind!

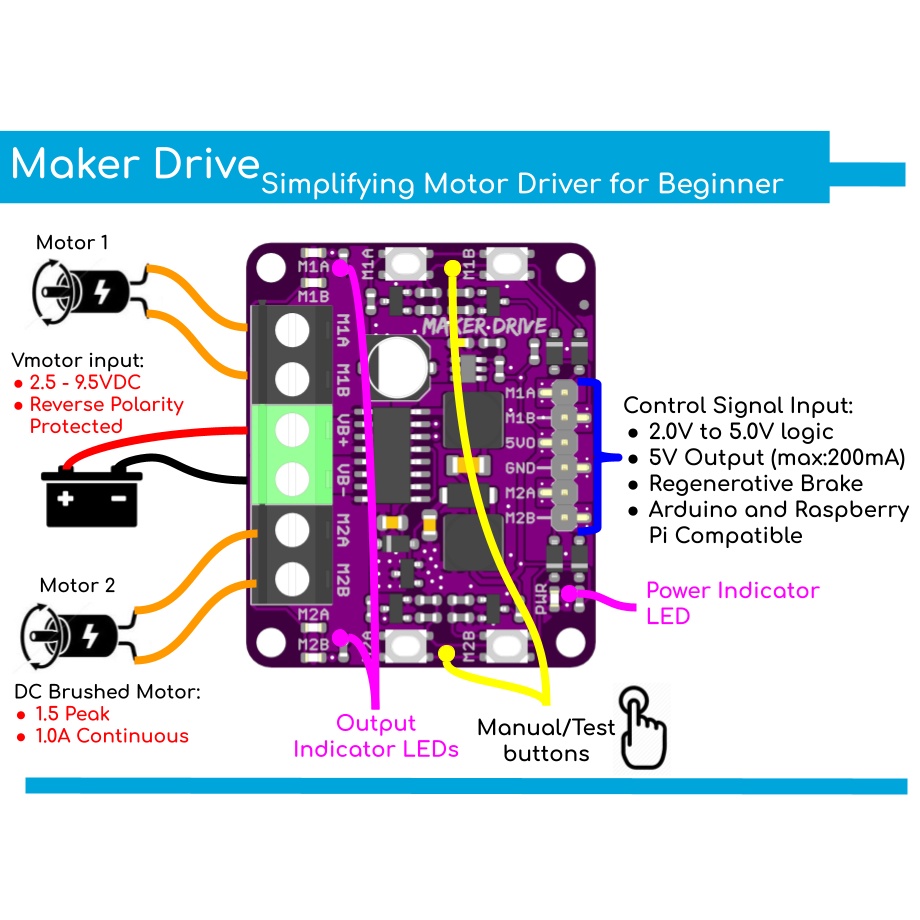

Features :
- Dual-channel, Bi-directional control motor driver
- Support motor voltage from 2.5V to 9.5VDC
- Maximum current up to 1.0A continuous and 1.5A peak (less than 5 seconds)
- 5V Output (200mA) to power the controller.

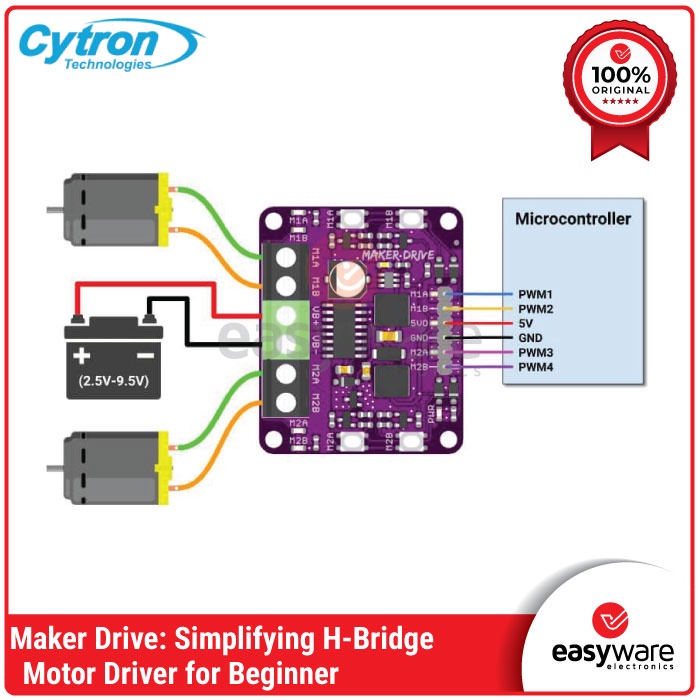

- Inputs compatible with 1.8V, 3.3V and 5V logic (Arduino, Raspberry Pi, etc).
- Solid-state components provide faster response time and eliminate the wear and tear of mechanical relay
- Regenerative Braking
- Speed control PWM frequency up to 20KHz (Actual output frequency is the same as input frequency)

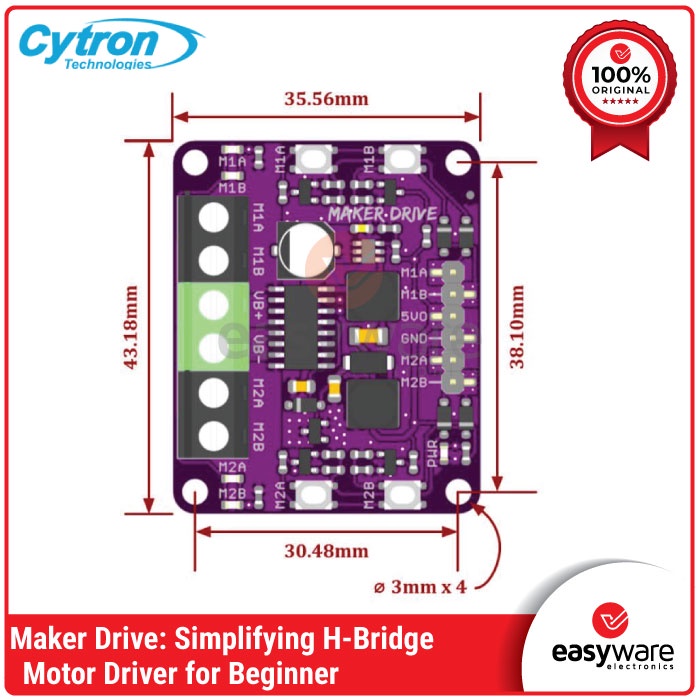

- Dimension: 43x35x14mm

Package :

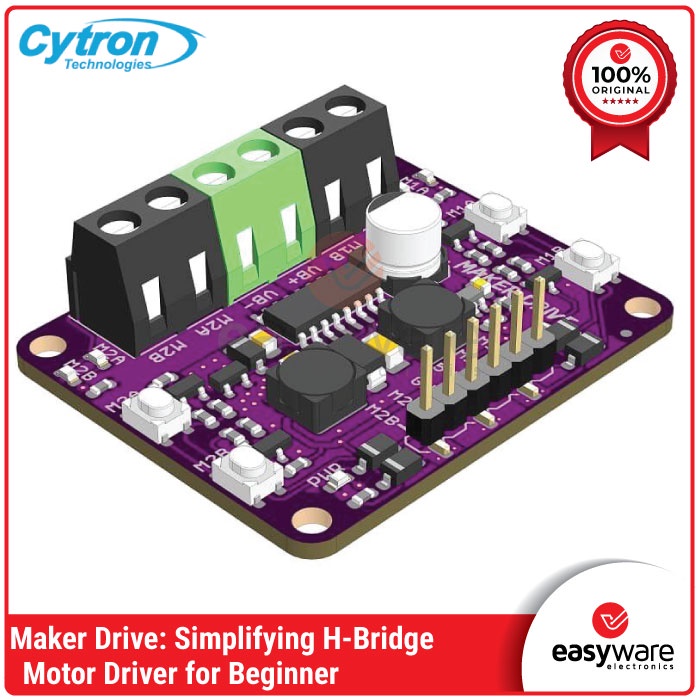

- 1x Maker Drive board
