Cuci Gudang Bluetooth Car Diagnostic OBD2 V1.5 - ELM327
Deskripsi singkat
Otomotif > Perkakas & Perlengkapan Kendaraan > Peralatan Uji, Diagnosa, & Servis > Cuci Gudang Bluetooth Car Diagnostic OBD2 V1.5 - ELM327
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Cuci Gudang Bluetooth Car Diagnostic OBD2 V1.5 - ELM327
ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols Works with all OBD-II compliant vehicles Wireless (Bluetooth) Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database). Clear trouble codes and turn off the MIL.Features
Top Features
Works with all OBD-II compliant vehicles.
Wireless (Bluetooth) 5~10meters.
Software included for Palm, PDA, Mobile, Windows PC, Smartphone.Support Android systerm.
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light).
Display current sensor data, including Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed, Short Term Fuel Trim. Long Term Fuel.Trim,Intake Manifold Pressure, Timing Advance,Intake Air, Temperature,Air Flow Rate, Absolute Throttle Position, Oxygen sensor voltages/associatedshort term fuel trims, Fuel System status, Fuel Pressure.
Support OBD-II protocols: ISO15765-4 (CAN), ISO14230-4 (KWP2000), ISO9141-2
Multi-Protocol Support:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
Package Contents :
1 x Bluetooth Car Diagnostic OBD2 CAN BUS Scanner - ELM327
1 x CD Rom
CATATAN :
* Harap pastikan semua data pembelian dan pengiriman sudah benar agar tidak terjadi pembatalan. Kami tidak menerima pengajuan pembatalan jika pesanan sudah diproses.
* Untuk mempermudah proses retur jika terjadi kendala, pastikan mendokumentasikan saat membuka paket dengan mengambil video unboxing.

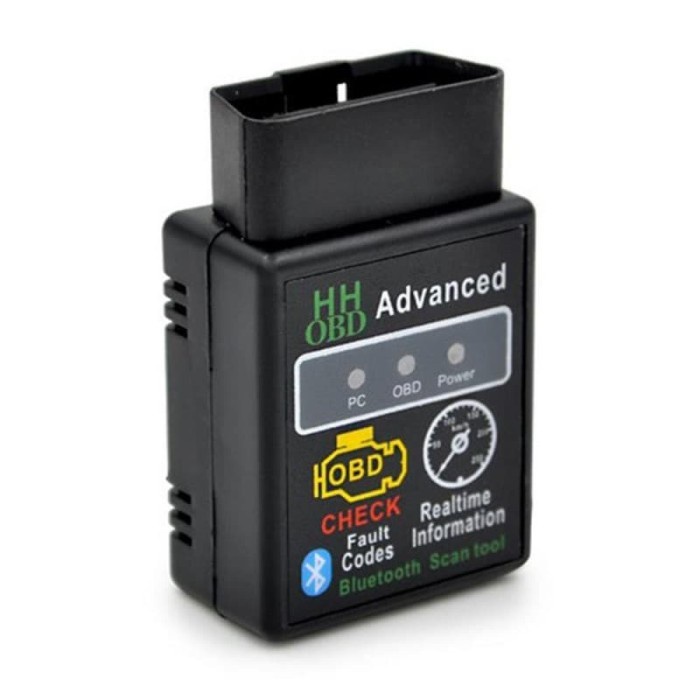

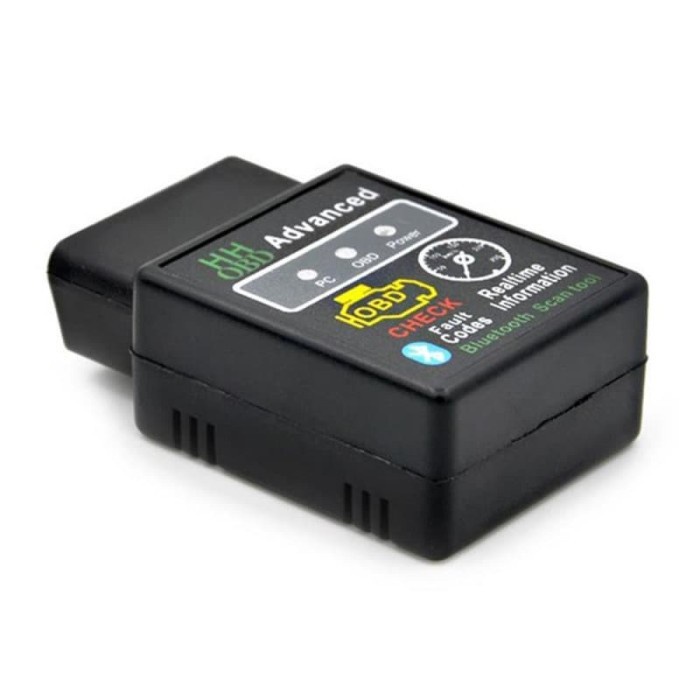

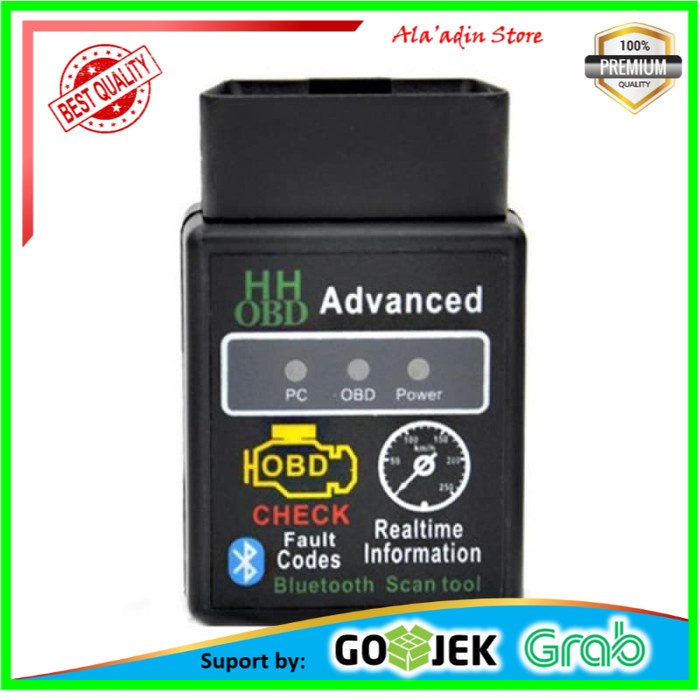

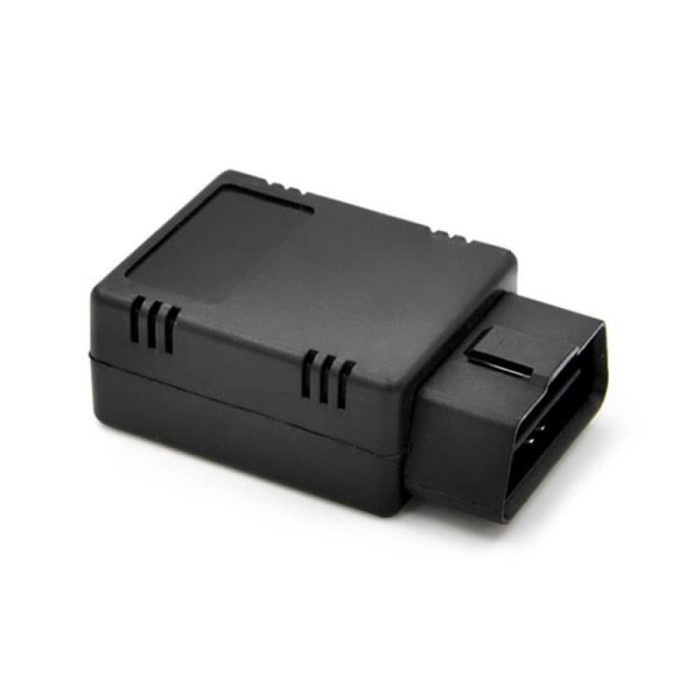

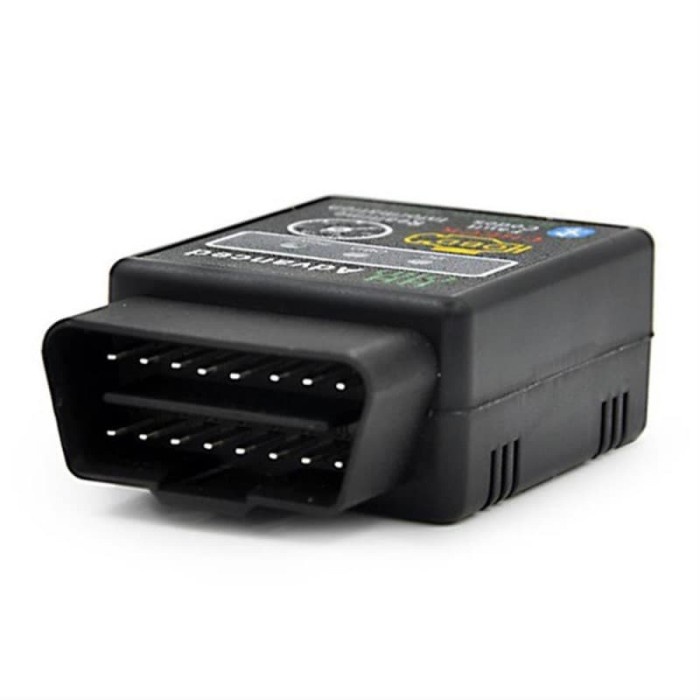

Gambar produk
