Detail CROSSOVER ZETAPRO ZR 204 ZR204 ZR-204 4 WAY PLUS SUBWOOFER FULL MACRO NEW ORIGINAL
KOMPONEN FULL MAKRO (TERBARU)

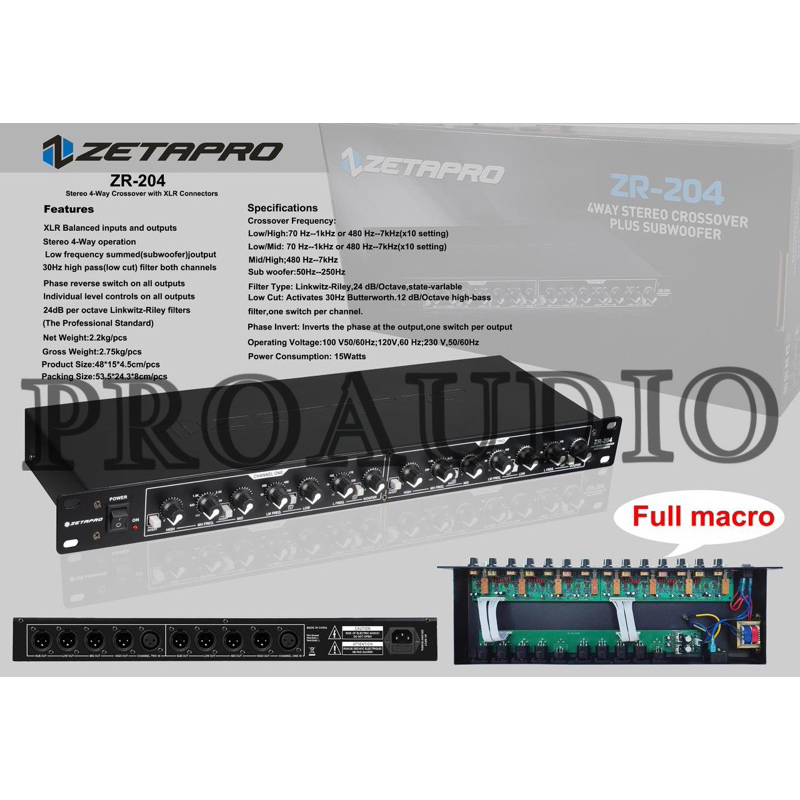

crossover ZETAPRO ZR 204 ORIGINAL ZR 204 stereo 4way PLUS SUBWOOFER
stereo 4way crossover with XLR connetors Features: XLR balanced ins and outs stereo 4-way operation Low fequency summed (subwoofer) outputs 30uz high pass ( low cut ) filter both channels phase reverse switch on all outputs individual level controls on all outputs 24db peroctave Linkwitz-Riley filters (the profesional standard)
Sfefications crossover frefrequencies low/high: 70hz to 1khz or 480 hz to 7khz low/mid: 70hz to 1khz or 480 hz to 7khz Mid/high: 480 hz to 7khz sub woofer : 50 hz to 250 hz Filter type:linkwitz-Riley,24db/octave,state-variable Low cut:activates 3ohz butterworth,12 db/octave high-pass filter,one switch per channel Operating voltage: 100-120 vac 50/60hz 230 vav 50/60hz power consumtion: 15w
