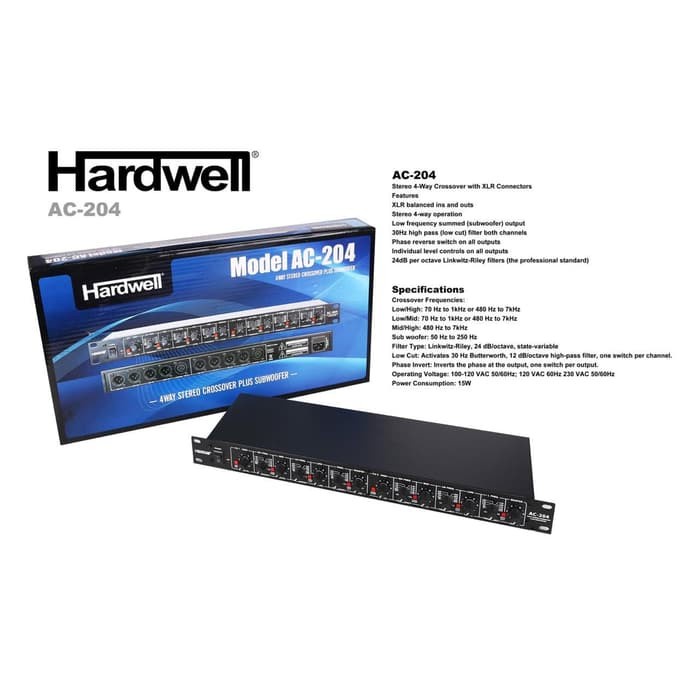

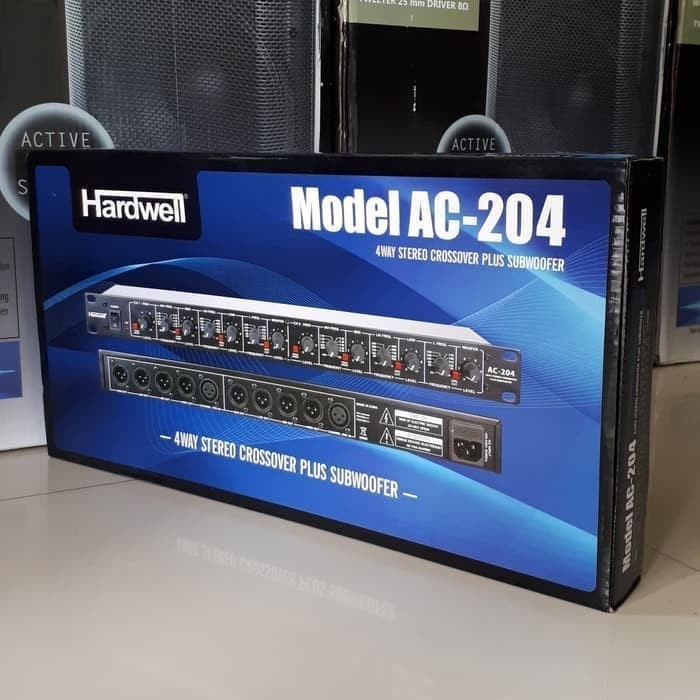

Crossover HARDWELL AC204 ORIGINAL AC-204 STEREO 4 WAY PLUS SUBWOOFER

Detail Crossover HARDWELL AC204 ORIGINAL AC-204 STEREO 4 WAY PLUS SUBWOOFER

crossover hardwell AC204 ORYGINAL ac 204 stereo 4way PLUS SUBWOOFER

stereo 4way crossover with XLR connetors
Features:
XLR balanced ins and outs
stereo 4-way operation
Low fequency summed (subwoofer) outputs
30uz high pass ( low cut ) filter both channels
phase reverse switch on all outputs
individual level controls on all outputs
24db peroctave Linkwitz-Riley filters (the profesional standard)

Sfefications
crossover frefrequencies
low/high: 70hz to 1khz or 480 hz to 7khz
low/mid: 70hz to 1khz or 480 hz to 7khz
Mid/high: 480 hz to 7khz
sub woofer : 50 hz to 250 hz
Filter type:linkwitz-Riley,24db/octave,state-variable
Low cut:activates 3ohz butterworth,12 db/octave high-pass filter,one switch per channel
Operating voltage: 100-120 vac 50/60hz 230 vav 50/60hz
power consumtion: 15w

GARANSI HARDWELL ORYGINAL 1TAHUN
