CROSSOVER DBX 234XL

Detail CROSSOVER DBX 234XL

crossover 234xs stereo 2way/3way/mono 4way aktif crossover... Specifications : Input ConnectorsXLRInput TypeElectronically balanced/unbalanced, RF filteredInput ImpedanceBalanced >50k ohm, unbalanced >25k ohmMax Input>+22dBu balanced or unbalancedCMRR>40dB, typically >55dB at 1kHzOutput ConnectorsXLROutput TypeImpedance-balanaced/unbalanced, RF filteredOutput ImpedanceBalanced 60 ohm, unbalanced 30 ohmMax Output>+21dBu balanced/unbalanced into 2k ohms or greaterBandwidth20Hz to 20kHz, +/-0.5dBFrequency Response< 3 Hz to > 90 kHz, +0/-3 dBSignal to Noise RatioRef: +4 dBu, 22 kHz measurement bandwidthSignal-to-Noise (Stereo Mode)>94dB (Low Output), >93dB (Mid Output), >90dB (High Output)Signal-to-Noise (Mono Mode)>94dB (Low Output, Low/Mid Output); >92dB (High/Mid Output); >88dB (High Output)Dynamic Range> 106 dB, unweighted, any outputTHD+Noise< 0.004% at +4 dBu, 1 kHz; < 0.04% at +20 dBu, 1 kHzInterchannel Crosstalk< -80 dB, 20 Hz to 20 kHzCrossover Frequencies (Stereo Mode)Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting); Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting); Mid/High 450Hz to 9.6kHz (x10 setting)Crossover Frequencies (Mono Mode)Low/Low-Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting); Low-Mid/High-Mid: 450 Hz to 9.6 kHz; High-Mid/High: 450 Hz to 9.6 kHzCrossover Filter TypeLinkwitz-Riley, 24 dB/octave, state-variableLow cut SwitchActivates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per Invert SwitchInverts the phase at the output, one switch per output.x1 / x10 SwitchMultiplies the low-high(mono: low/mid and high/mid) crossover frequency range of the front-panel markings by a factor of 1 or 10, one switch per SwitchSelects stereo/mono and 2/3/4-way operationLF Sum SwitchSelects normal (stereo

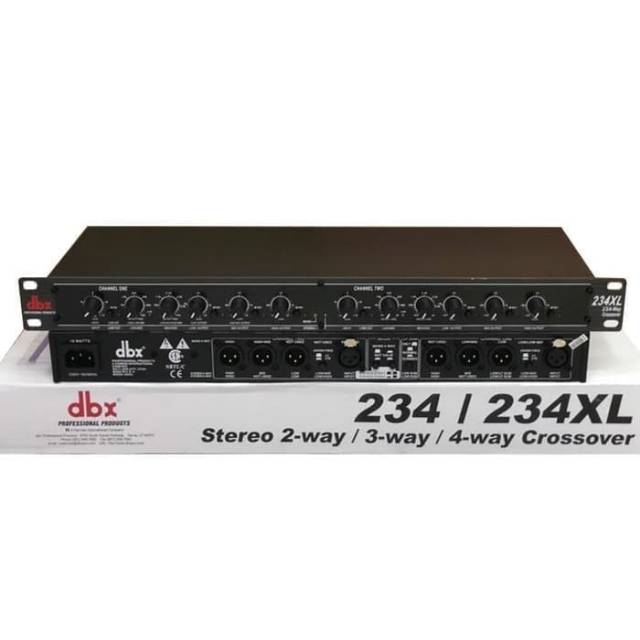

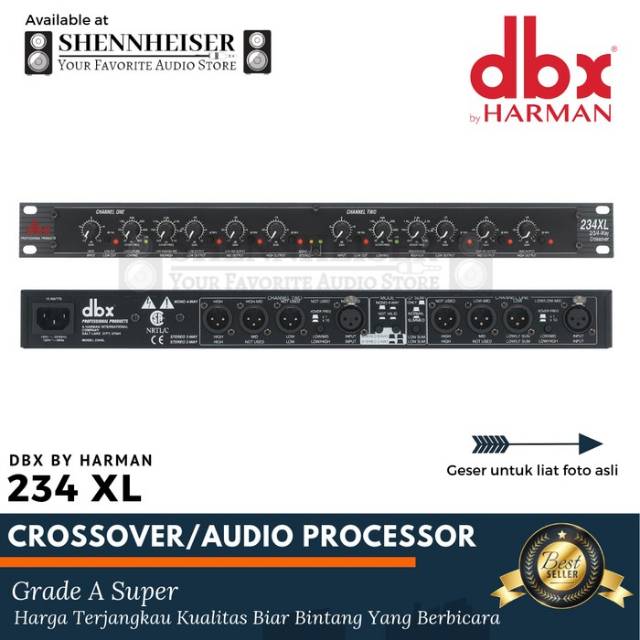

Gambar produk
