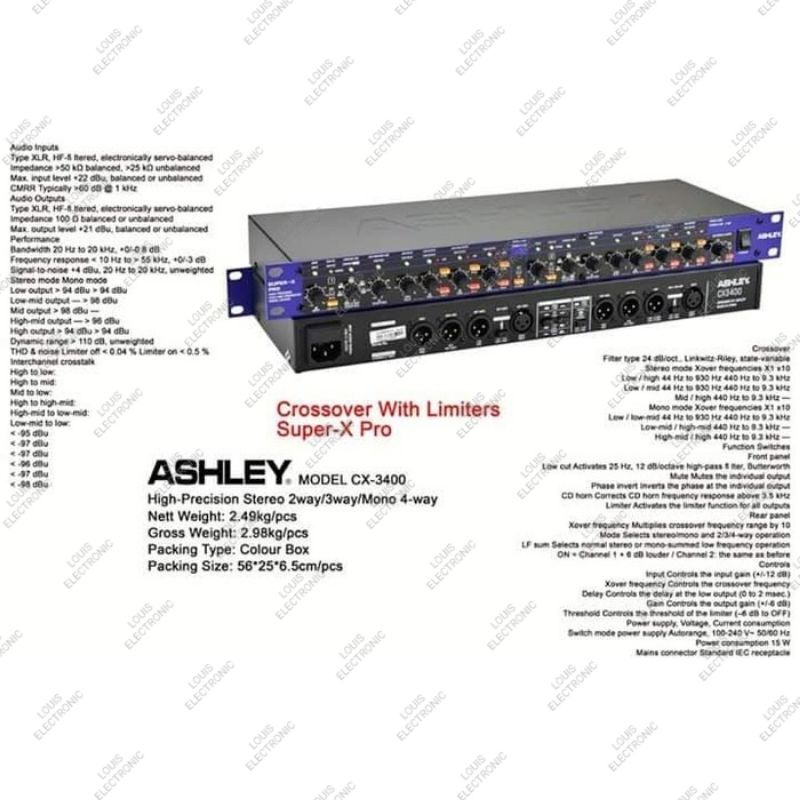

CROSSOVER ASHLEY CX3400/CX 3400 WITH LIMETERS SUPER X PRO ORIGINAL

ASHLEY CK3400 Crossover Filter type 24 dB / oct., Linkwitz-Riley,
state-variable Stereo mode Xover frequencies X1 x10 Low / high 44 Hz to 930 Hz 440 Hz to 9.3 kHz Low / mid 44 Hz to 930 Hz 440 Hz to 9.3 kHz
Mid / high 440 Hz to 9.3 kHz
- Mono mode Xover frequencies X1 x10 Low / low-mid 44 Hz to 930 Hz 440 Hz to 9.3 kHz Low-mid / high-mid 440 Hz to 9.3 kHz
- ZHY C'6 o1 zZH O ybiu / pru-ybIH Function Switches Front panel Low cut Activates 25 Hz, 12 dB / octave high-pass fiter,
Butterworth Mute Mutes the individual output Phase invert lInverts the phase at the individual
output CD horn Corrects CD horn frequency response above 3.5 kHz
Limiter Activates the limiter function for all
outputs Rear panel Xover frequency Multiplies crossover frequency range by 10 Stereo / mono Selects Mode and 2/3/4-way operation LF
sum Selects normal stereo or mono-summed low frequency operation ON = Channel 1 + 6 dB louder / Channel 2: the same as before Controls Input Controls the input gain (+/- 12 dB) Xover frequenc y Controls the crossover
frequency Delay Controls the delay at the low output (0 to 2 msec.)
Gain Controls the output gain (+/- 6 dB)
Threshold Controls the threshold of the limiter (-6 dB to OFF)
Power supply,
Voltage ,
Current consumption Switch mode power supply
Autorange, 100-240 V-50/60 Hz
Power consumption 15 W
Mains connector IEC receptacle
