Detail Crossover Ashly XR 4001 exp 4 way Original

Deskripsi Crossover Ashly XR 4001 exp 4 way XR4001
Crossover Ashly XR 4001 exp 4 way XR4001

Specification :
Inputs
Product Features
24 dB/octave slope using fourth-order state-variable filters.
Controls
Input Level: Full-off to +8dB
Crossover Frequency: 400Hz-8kHz (40Hz-800Hz*) (L-LM, LM-HM); 1.2kHz-24kHz (120Hz-2.4kHz*) (HM-H)
* using divide by 10 range switch
Range Switch: divides crossover freq. by 10
Response: -1.5dB to -12dB at crossover point
Output Level: Full-off to +15dB
Input Impedance
20k Ohms, balanced bridging
Output
Impedance
200 Ohms, quasi-balanced (terminate with >600 Ohms)
Max. Input Level
+23dBu
Max. Output Level
+23dBu
Frequency Response
+/-.5dB 20Hz-20kHz
Total Harmonic Distortion (THD)

Gambar produk

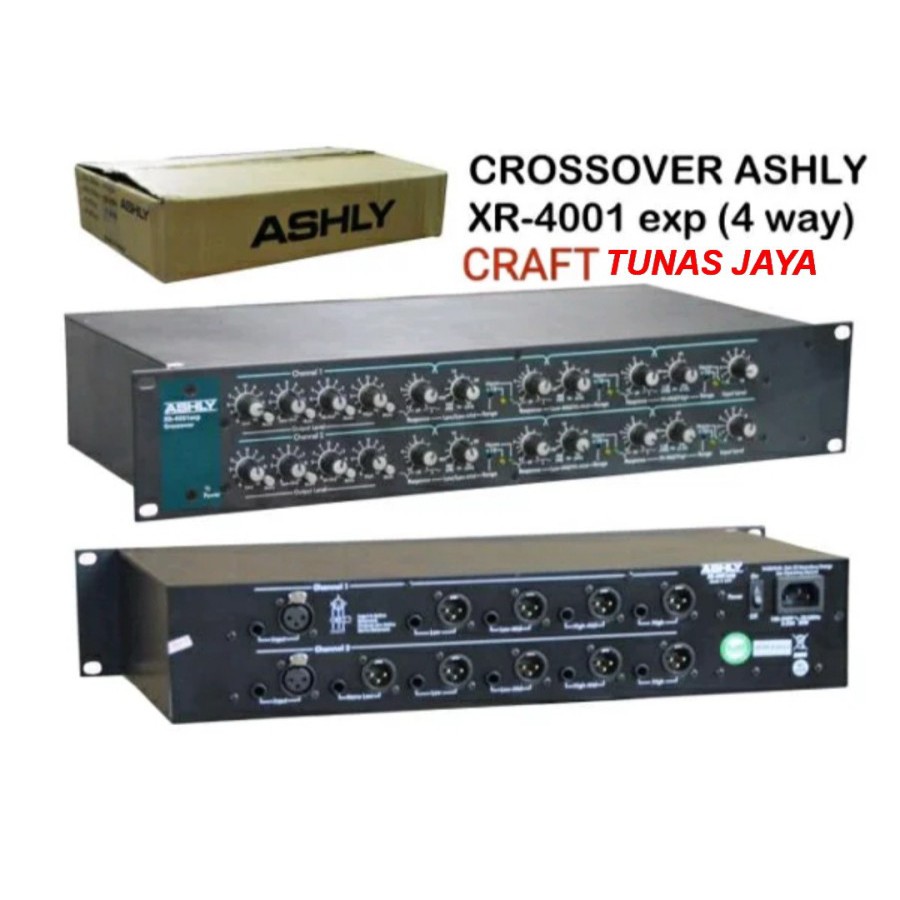

Crossover Ashly XR 4001 exp 4 way Original
