Crossover Ashley CX3400 + Limiter / Crossover Ashley 324XL 4 way (3 way stereo crossover + Subwoofer)

Detail Crossover Ashley CX3400 + Limiter / Crossover Ashley 324XL 4 way (3 way stereo crossover + Subwoofer)

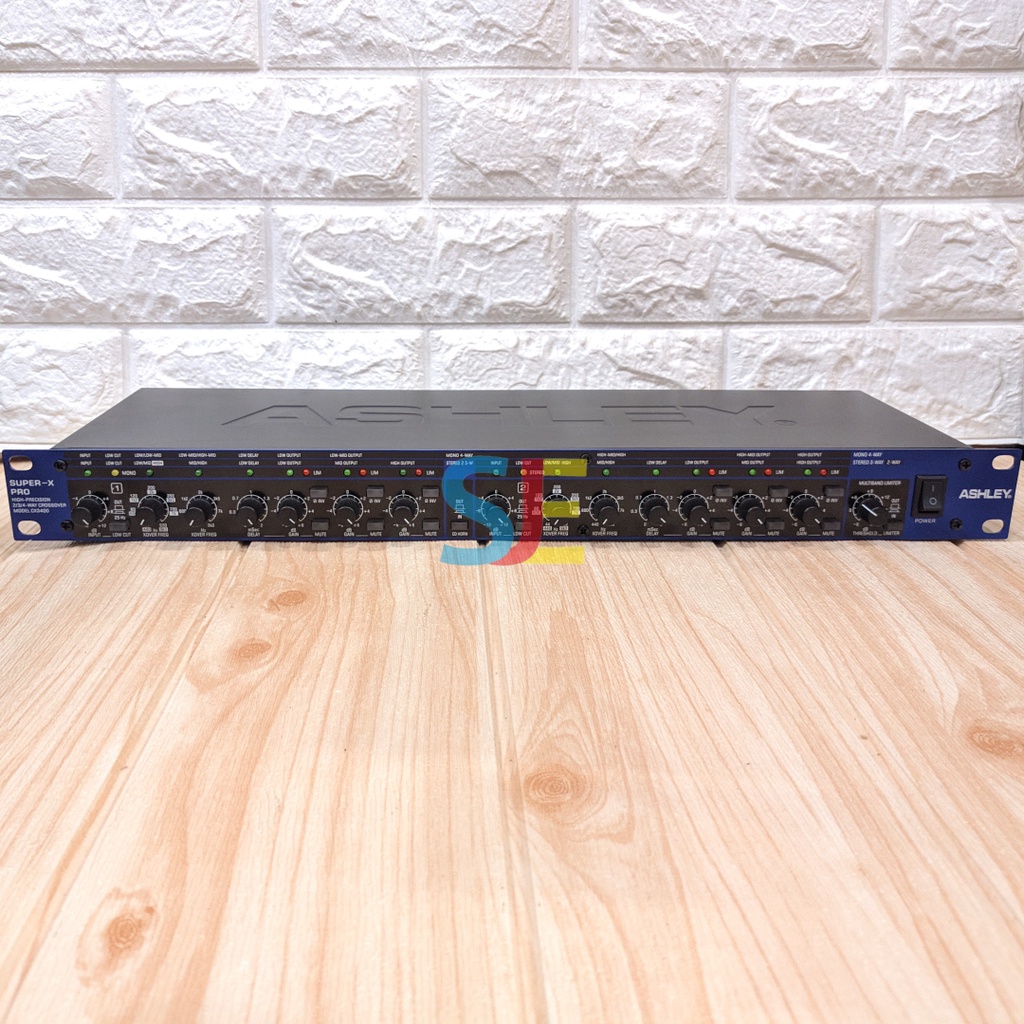

Crossover Ashley CX3400

100% Original

Ashley CX 3400 With Limiters Super X

ProASHLEY CK3400 Crossover Filtertype 24 dB / oct

Linkwitz-Riley, state-variable

Stereo mode Xover frequencies X1 x10

Low / high 44 Hz to 930 Hz 440 Hz to 9.3 kHz Low / mid 44 Hz to 930 Hz 440 Hz to 9.3 kHz Mid / high 440 Hz to 9.3 kHz

Mono mode Xover frequencies X1 x10 Low / low-mid 44 Hz to 930 Hz 440 Hz to 9.3 kHz Low-mid / high-mid 440 Hz to 9.3 kHz - ZHY C'6 o1 zZH O ybiu / pru-ybIH

Function Switches Front panel Low cut Activates 25 Hz, 12 dB / octave high-pass fiter,

Butterworth Mute Mutes the individual output

Phase invert lInverts the phase at the individual output CD horn Corrects CD horn frequency response above 3.5 kHz Limiter

Activates the limiter function for all outputs

Rear panel Xover frequency

Multiplies crossover frequency range by 10 Stereo / mono

Selects Mode and 2/3/4-way operation

LF sum Selects normal stereo or mono-summed low frequency operation ON = Channel 1 + 6 dB louder / Channel 2: the same as before

Controls Input Controls the input gain (+/- 12 dB) Xover frequenc y Controls the crossover frequency Delay Controls the delay at the low output (0 to 2 msec.) Gain

Controls the output gain (+/- 6 dB)

Threshold Controls the threshold of the limiter (-6 dB to OFF)

Power supply, Voltage , Current consumption Switch mode power supply Autorange, 100-240 V-50/60 Hz Power consumption 15 W Mains connector IEC receptacle

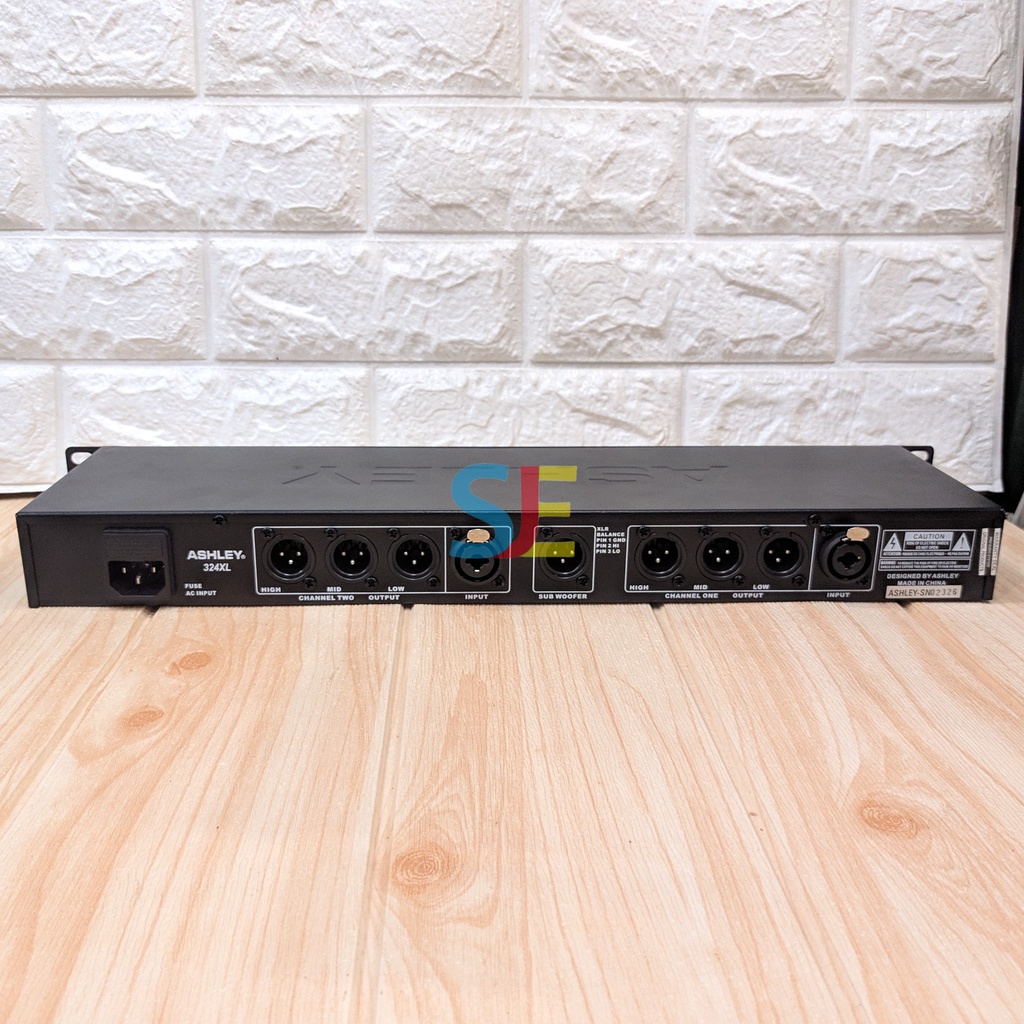

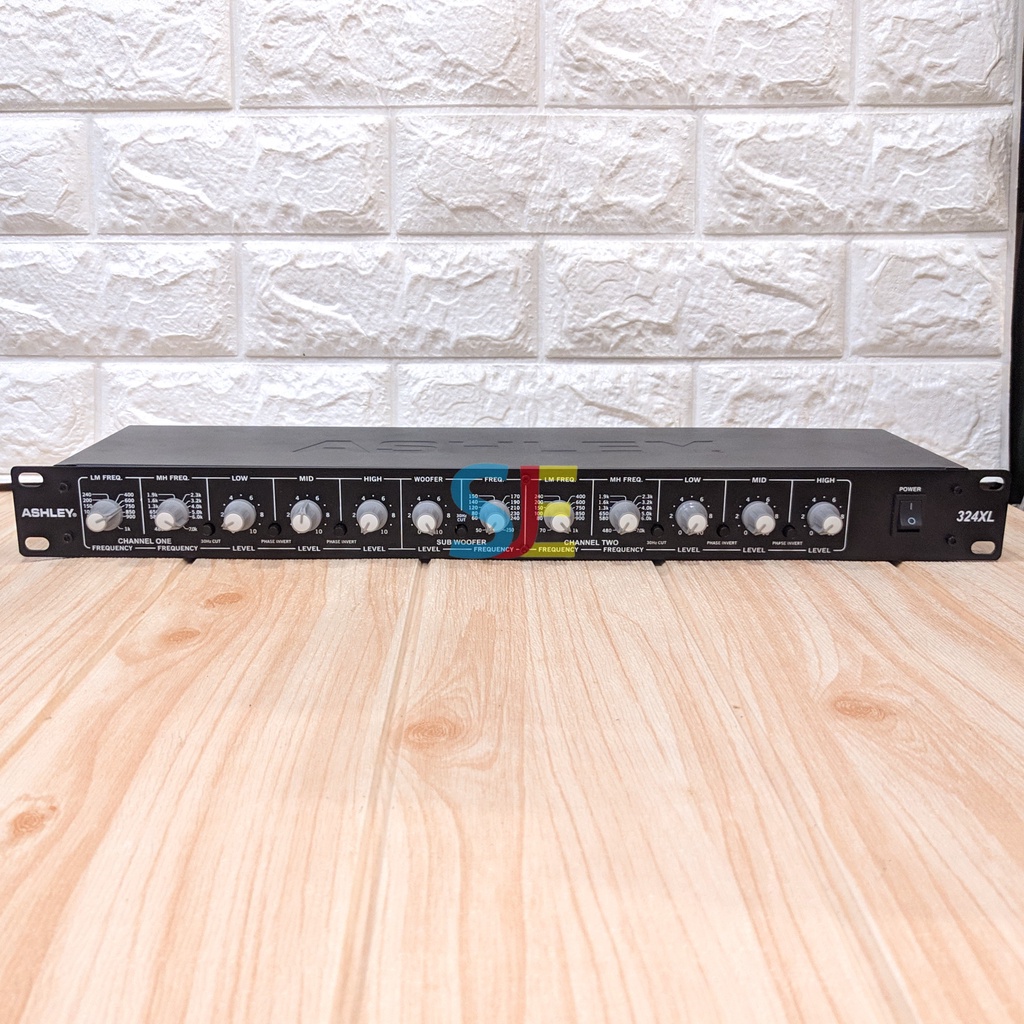

Crossover Ashley 324 XL

100% Origanal

Crossover 4 way ( 3 way stereo crossover = SUB)



Sebelum Pengiriman Barang Selalu Dicek Fungsi dan Fisik, serta kami berikan tambahan packing bubble wrap secara GRATIS.

Gambar produk
