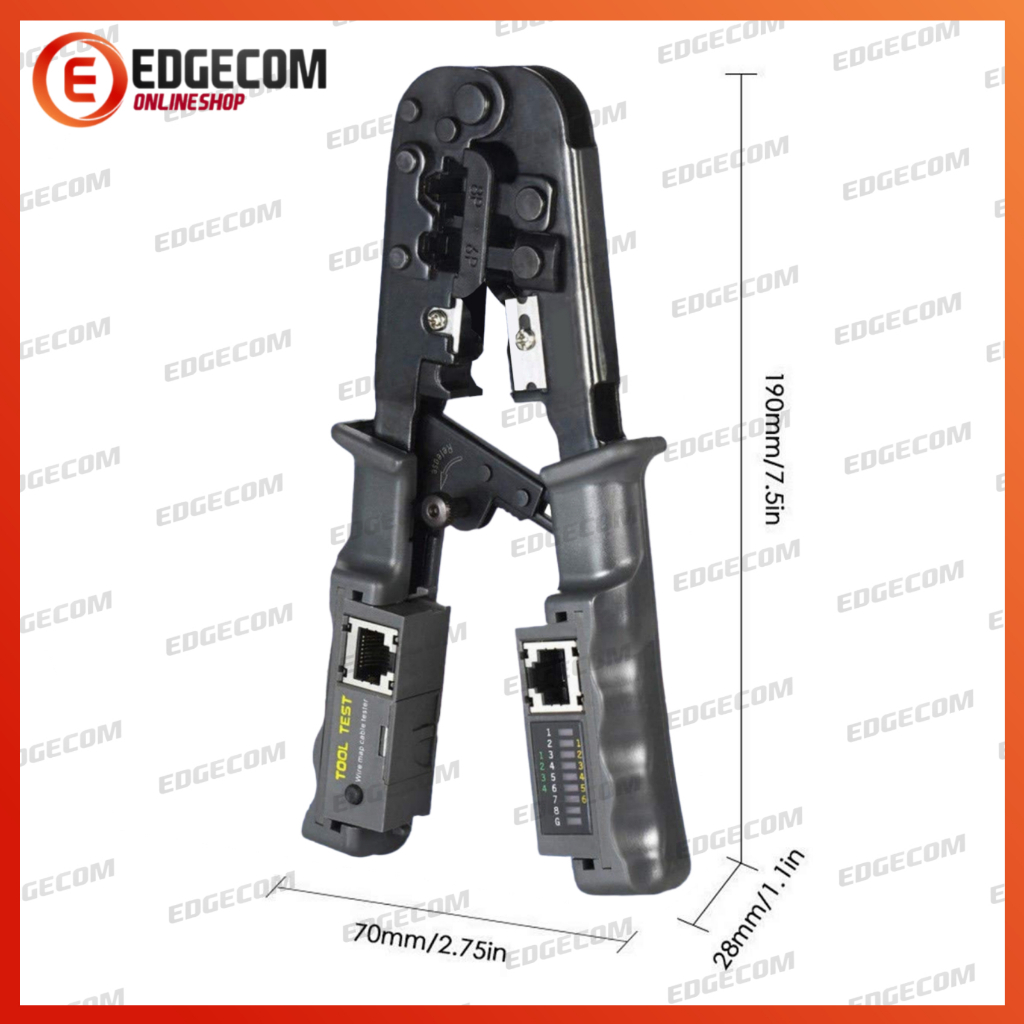

Crimping Tool / Tang kabel LAN tester RJ45 RJ11 all in one TL-N568CR

Detail Crimping Tool / Tang kabel LAN tester RJ45 RJ11 all in one TL-N568CR

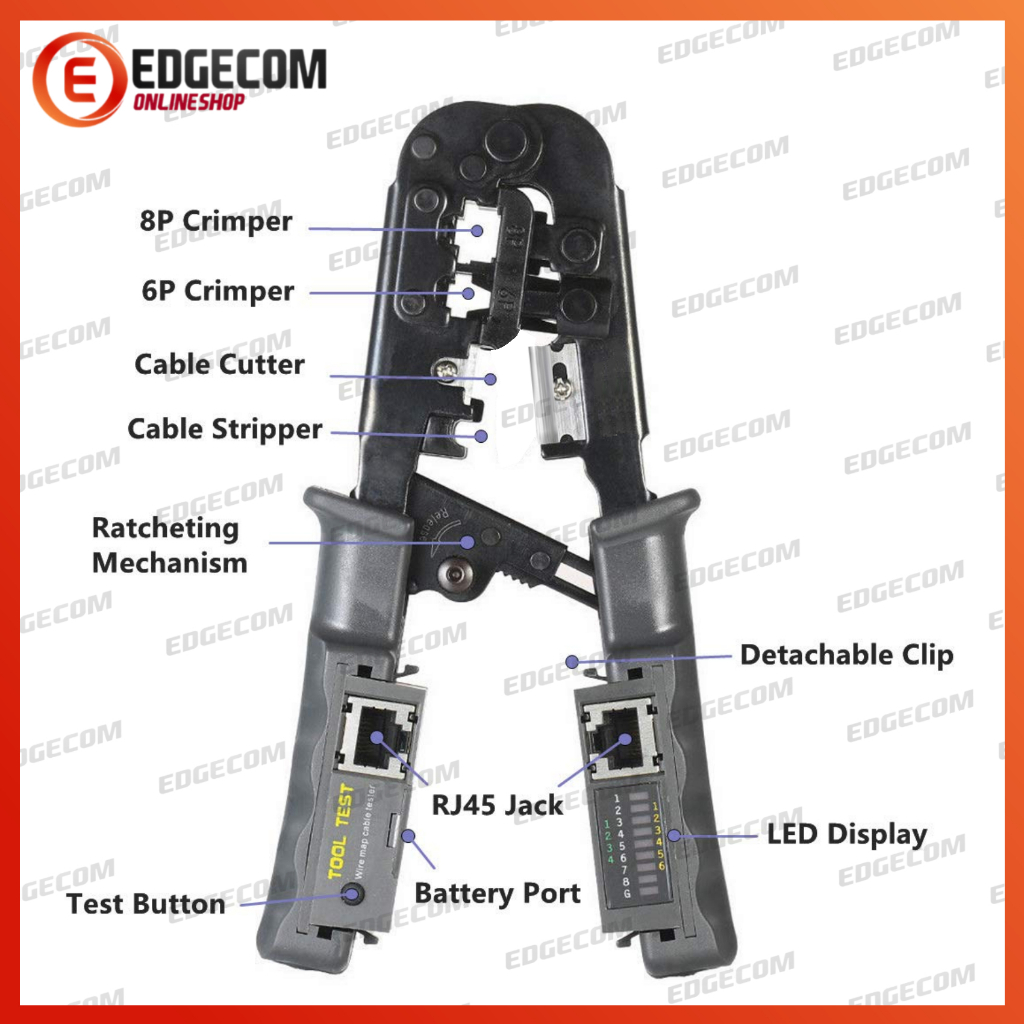

FEATURE


•All-in-one tool cuts, strips and crimps paired-conductor cables (RJ11/RJ12, RJ22, RJ45), Twisted Pair, Ethernet, RJ45 voice and data cables.
•Built-in cable tester testing for both UTP and STP cables (RJ45, RJ12, RJ11), LED #1~#8 shows 8 pin wire configuration.
•Dual-Mode Test Function: Single and Continuous Test
Auto Power Saving
•Low Power Indicator
•Single and Multi-Wired Cable Crimping
•Modular Crimping Plugs:8P8C(RJ45), 6P6C(RJ12),
6P4C(RJ11)
•Integrated cable stripper and cutter

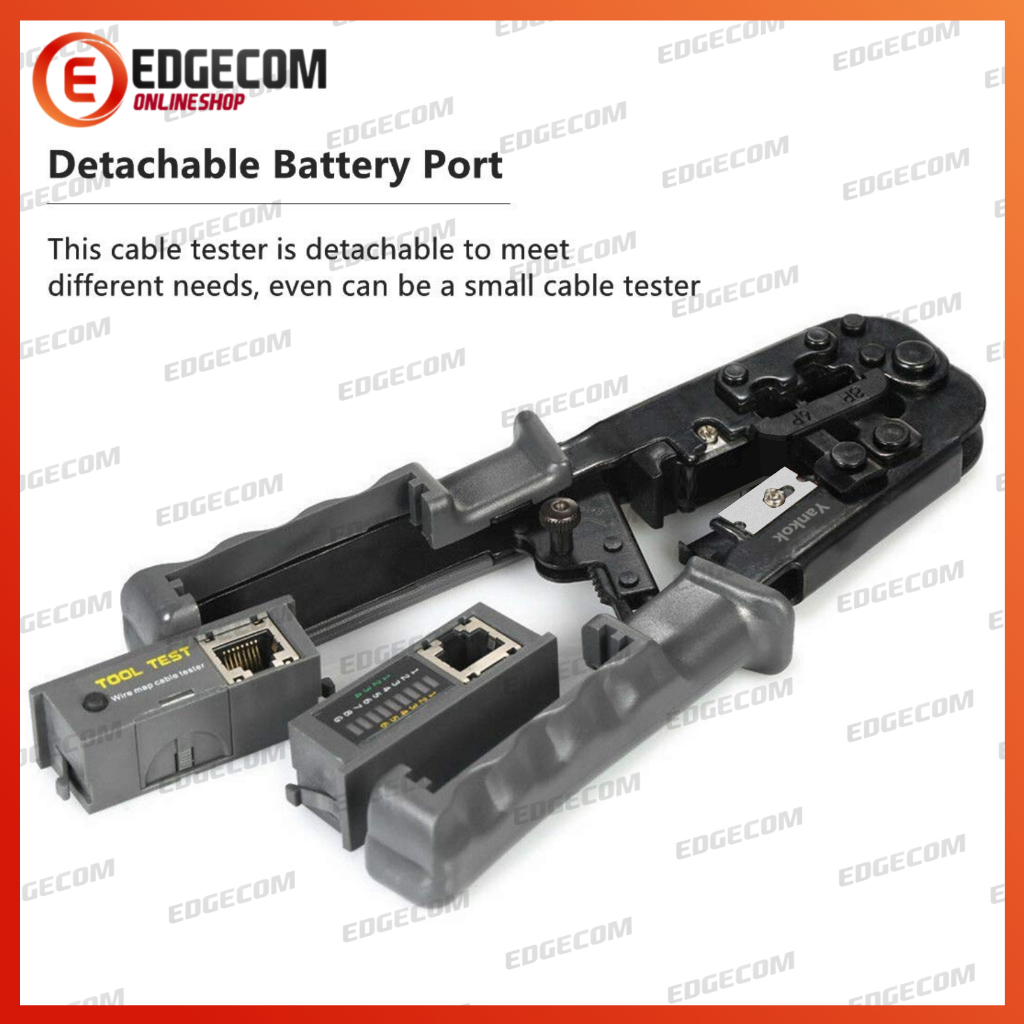

•Crimping Tool and Cable Tester in One Detachable Cable Tester
•Full-cycle ratchet mechanism prevents the release of the connector prior to full compression.
•Ratcheting safety-release and a blade-guard on cutting and stripping knives reduce risk of injury.
•Crimping dies are precision ground from high-carbon steel. Fast, reliable crimp tool with steel body for durability.

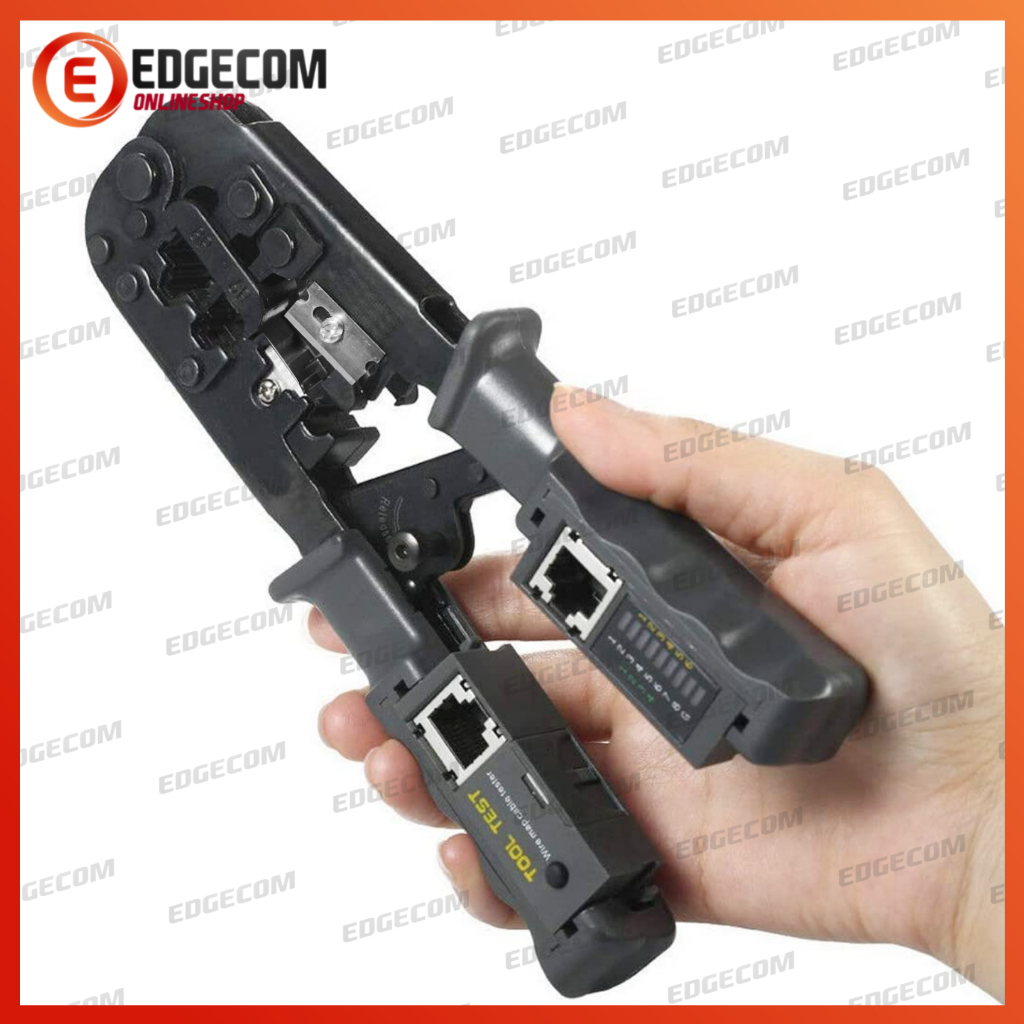

•Ergonomic comfort grips enhance comfort, visibility, and allow quick identification.
•Weight 450 gram

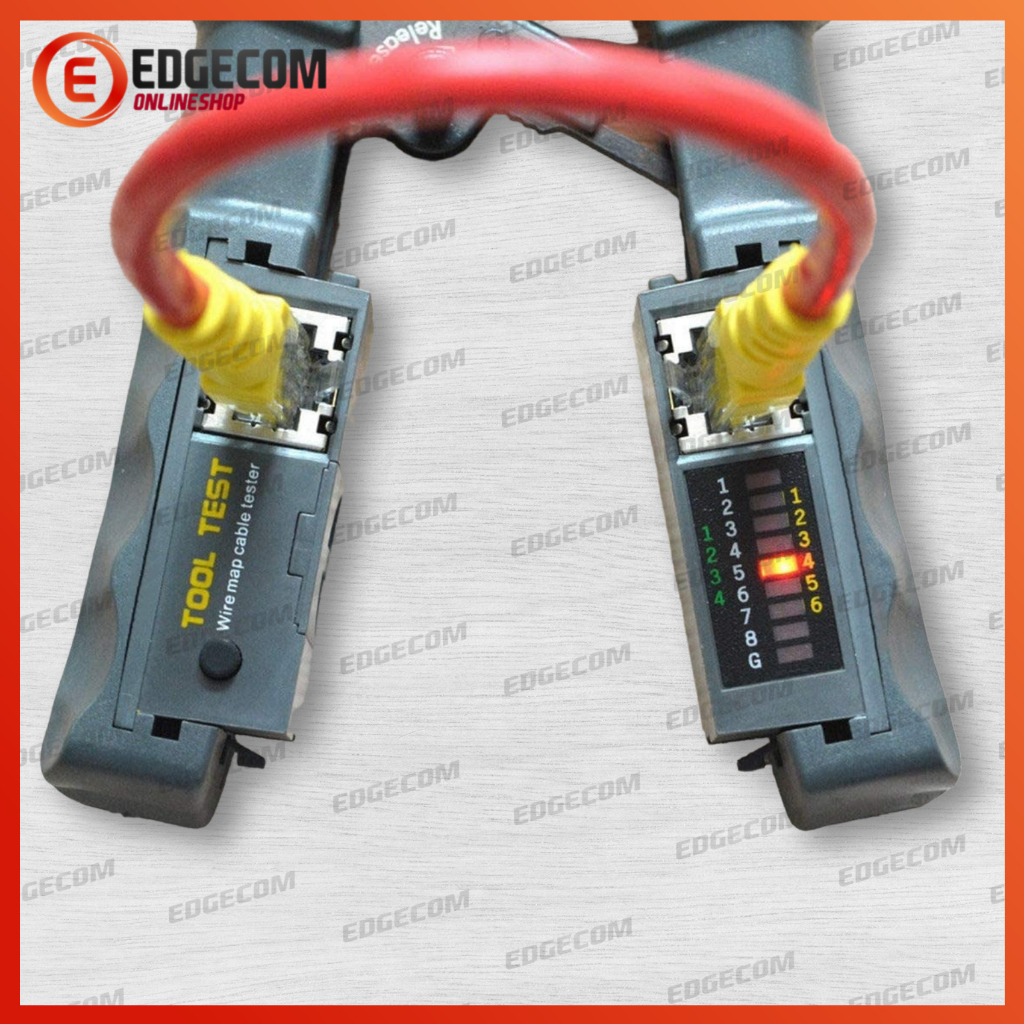

LED DISPLAY DESCRIPTIONS

•LED #1~#8:8 Pin wire configuration

•LED#1: Low Battery Indicator: LED flashes repeatedly to
indicate the unit is low in battery before each testing
LED G:Shield/Ground

•RJ11(Color-Green): PIN1-PIN4, RJ12(Color-Yellow):
PIN1-PIN6, RJ45(Color-White)


POWER SUPPLYS

Main unit: DC 4.5V ( 3 x LR.44 type batteries )
