Detail Cre Rg316 Kabel Coaxial Rf 50ohm Panjang 10m
10m RG316 RF Coax Coaxial Cable Connector 50ohm Shielded Pigtail Extension Lead Description: RG316 coax cable can be used in direct burial, radio frequency and telecommunications applications. Often used for the transmission of radio frequency signals, RG316 cable can also be used in wireless communication, broadcast and military equipment. RG316 coax may also be used for high frequency interconnections between PCB in telecommunications equipment. RG-316 cable is a good choice for applications like these which require good performance and stability in high temperature environments and superior phase stability, or for applications in demanding environments or with minimal installation space. RG316 is a high performance coaxial cable that is in accordance with MIL-DTL-17 specifications. The M17 part associated with coax RG316 is M17/113-RG316.
Specifications: Physical Properties: Material Diameter(mm)
Electrical Properties: Nom. Capacitance Conductor to Shield(pF/m): 96.5 Nom. Characteristic Impedance(ohm): 50 Nom. Velocity of Propagation(%): 70 Min. Bend Radius(Install)(mm): 13 Voltage Rating(VMS): 1200 Max. Operating Frequency(MHz): 3000 Operating Temperature Rating(℃): -55~+200
Nom. Attenuation: Frequency(MHz) Nom. Attenuation(≯dB/m) 100 0.262 400 0.531 1000 0.856 3000 1.532 Length: 10m/32.8ft Quantity: 1 Roll Note: Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
No Retail Package Package Contents: 1 Roll x RF Coax Cable

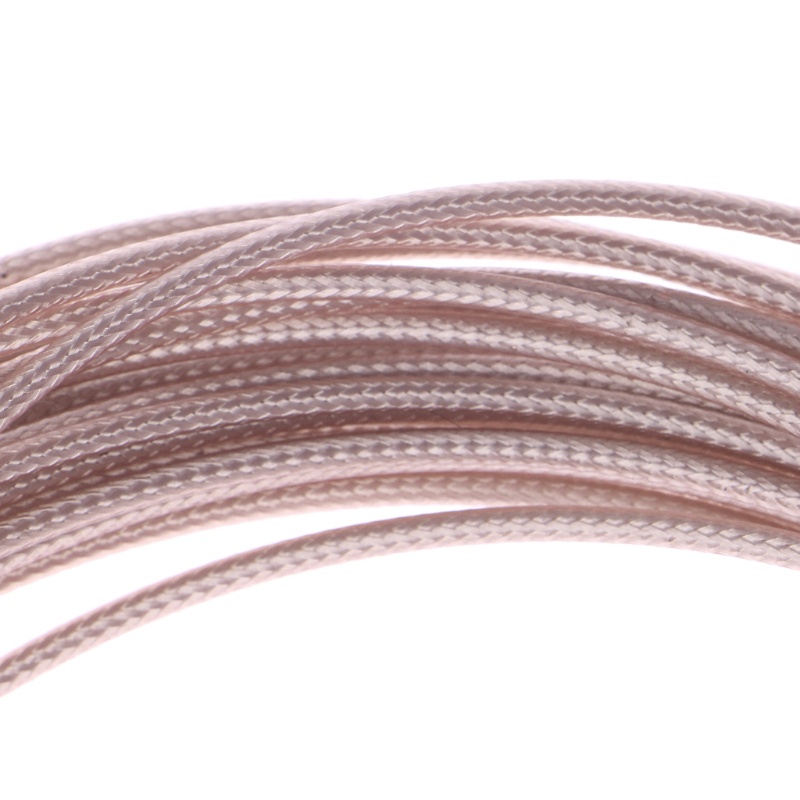

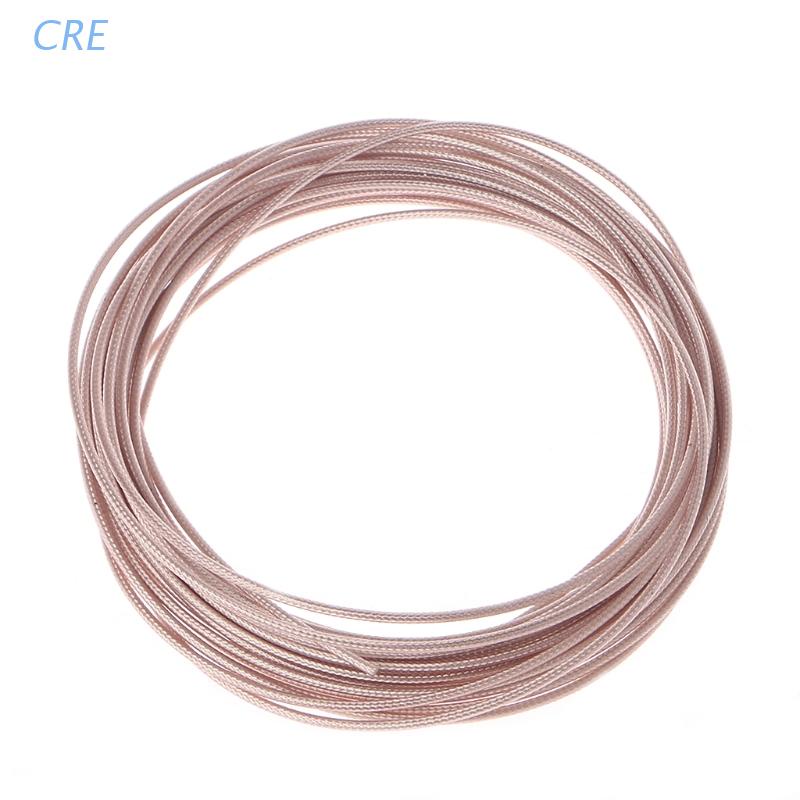

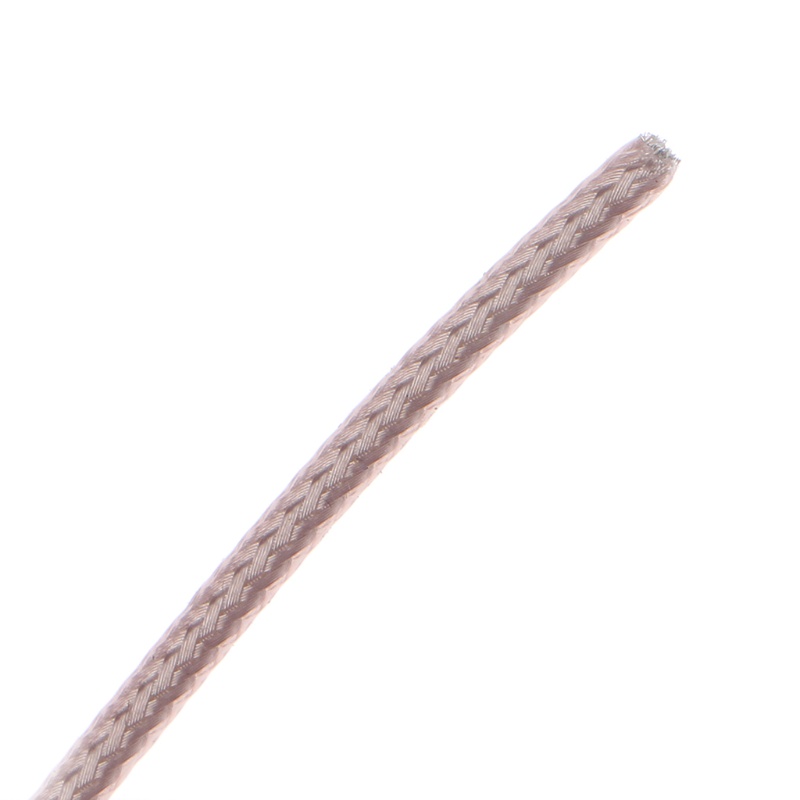

Gambar produk
