CRE 44mm Lens + 50mm Reflector Collimator+ Fixed Bracket For 20W-100W LED Light Lamp

Detail CRE 44mm Lens + 50mm Reflector Collimator+ Fixed Bracket For 20W-100W LED Light Lamp

#44mm #Lens #+ #50mm #Reflector #Collimator+ #Fixed #Bracket #For #20W-100W #LED #Light #Lamp
44mm Lens + 50mm Reflector Collimator+ Fixed Bracket For 20W-100W LED Light Lamp
Features:
Suitable for 20-100W high power LED, compatible with 44mm diameter lens! Is a widespread use of reflective glass class DIY boutique

Specifications:
Angle: 60°/120°
Material: Aspherical glasses
Lens diameter: 44mm
Lens Height: 19mm
Edge thickness: 3mm
Edge width: 2mm
Light transmittance: 98%
Temperature: -30-120°C

Bracket Size
Outer Diameter: 49.5mm
Inner Diameter: 40.1mm
Mounting Hole DIstance: 46.5mm

Collimator Size
Side Length: 26.3mm
Mounting Hole Distance: 32.5mm/6mm

Quantity: 1 Set
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

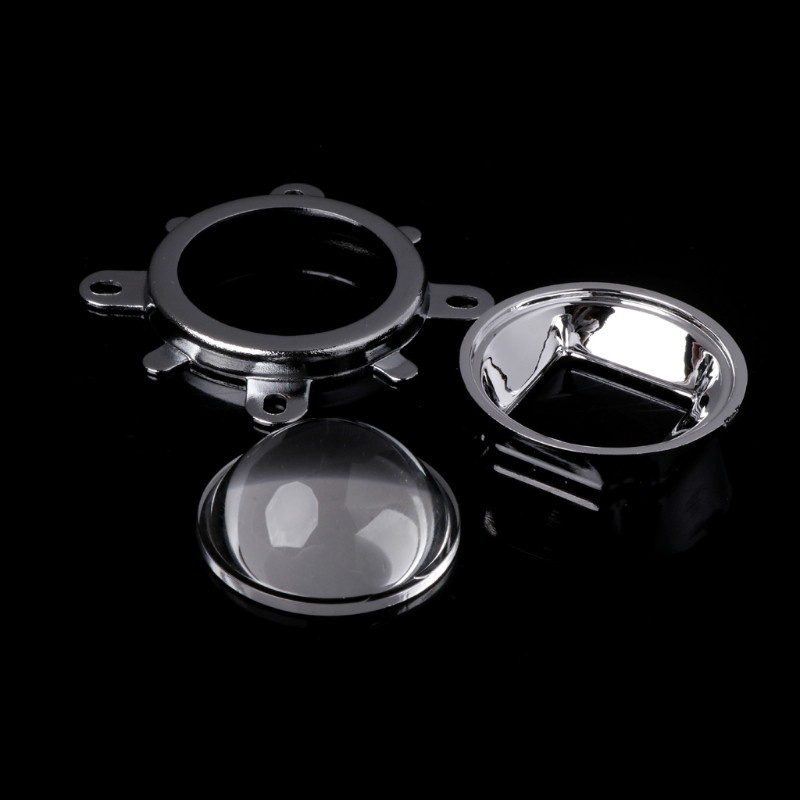

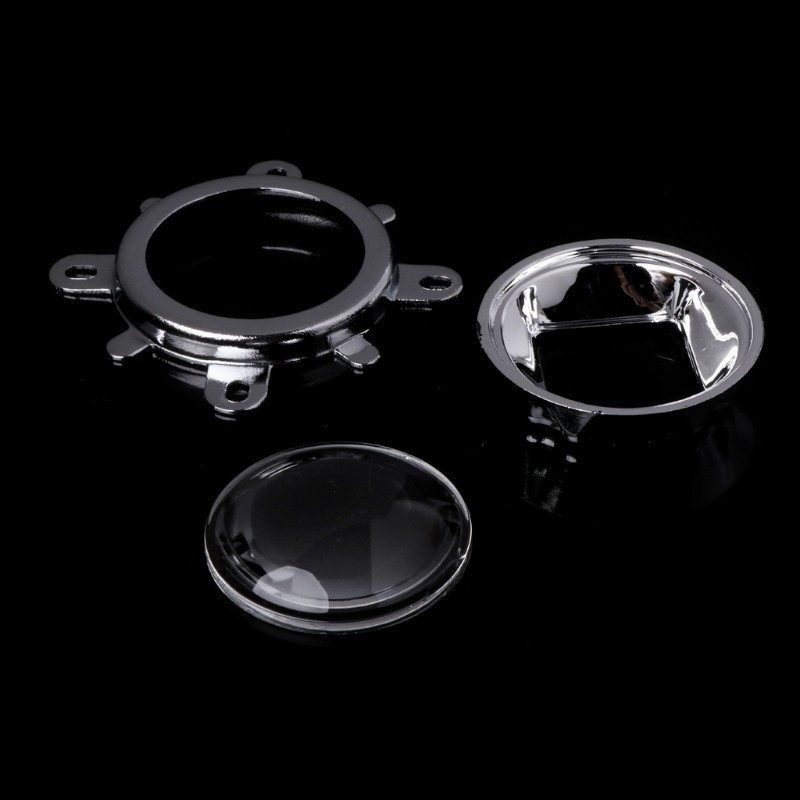

Package Contents:

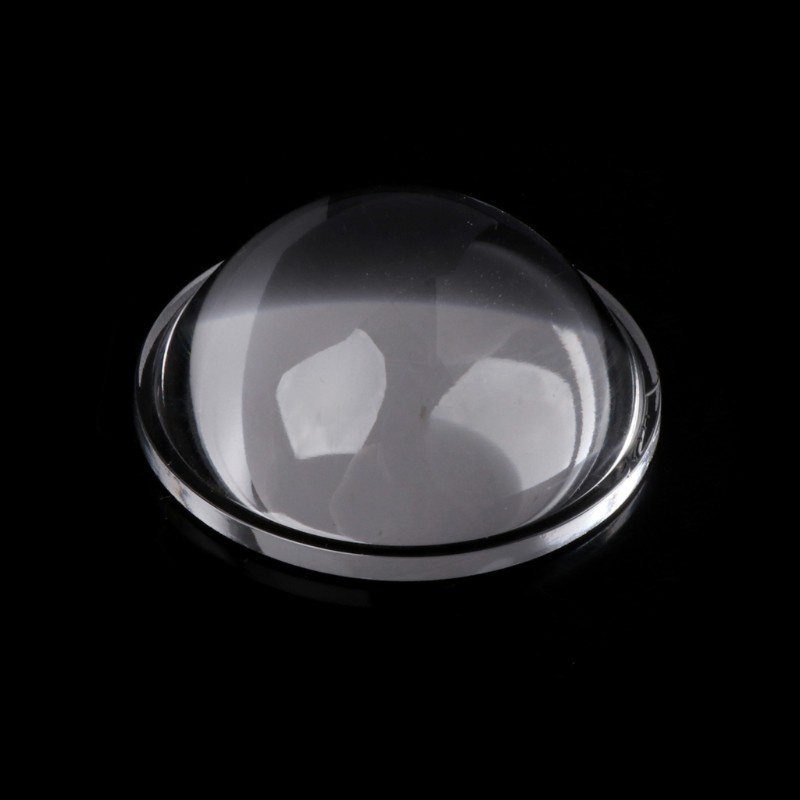

1 Pc x Glass Lens

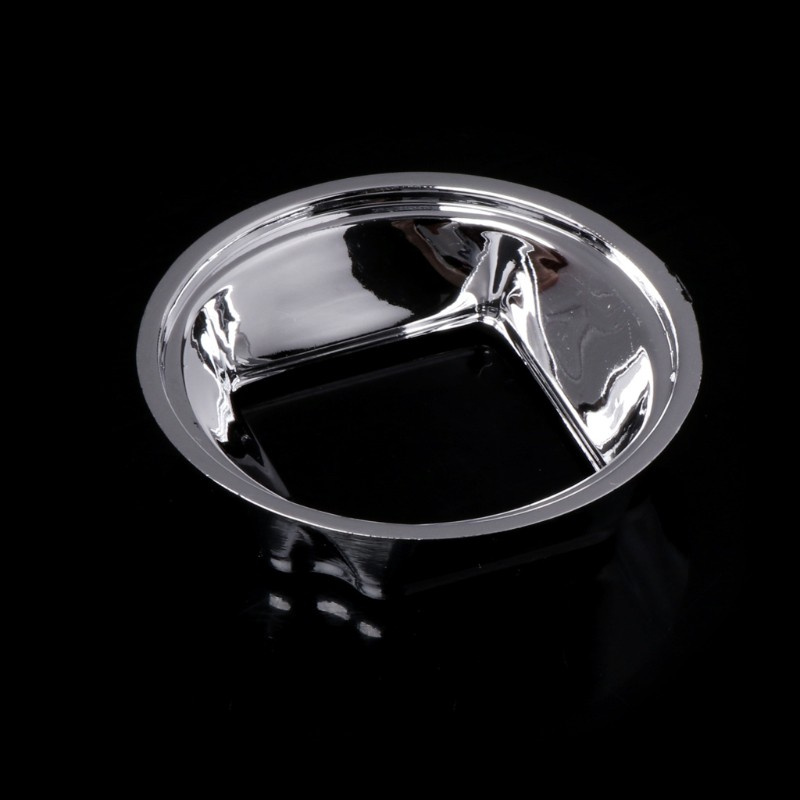

1 Pc x Reflector
1 Pc x Fixed bracket
