Detail CP2112 Debug Board USB to SMBus I2C Communication Module

Hi #RekanEasyWare ...
EasyWare Part#: EP000842

The CP2112’s highly integrated USB-to-SMBus bridge controller integrates a USB 2.0 full-speed function controller, USB transceiver oscillator and eight GPIO pins. All customization and configuration options can be selected through a simple GUI-based configurator. Standard HID class devices do not require the development of complex firmware and drivers. The CP2112 device enables fast USB connectivity with minimal development effort.

Fitur:
- On-chip power-on reset circuit, on-chip voltage regulator: 3.45 V output
- Compliant with USB specification 2.0 standard; full speed (12Mbps)
- USB suspend status via SUSPEND and /SUSPEND pins
- Integrated 194-byte one-time programmable ROM for storing customizable product information
- 512-byte SMBus data buffer, configurable clock speed device address 7-bit value is the slave address of CP2112
- Windows, Mac, and Linux HID to SMBus libraries API for rapid application development, open-access interface specifications.
- 8 GPIOs can be configured as input/output and open-drain/push-pull, configurable clock output for external devices 48MHz to 94kHz, switching LEDs during read/write SMBus

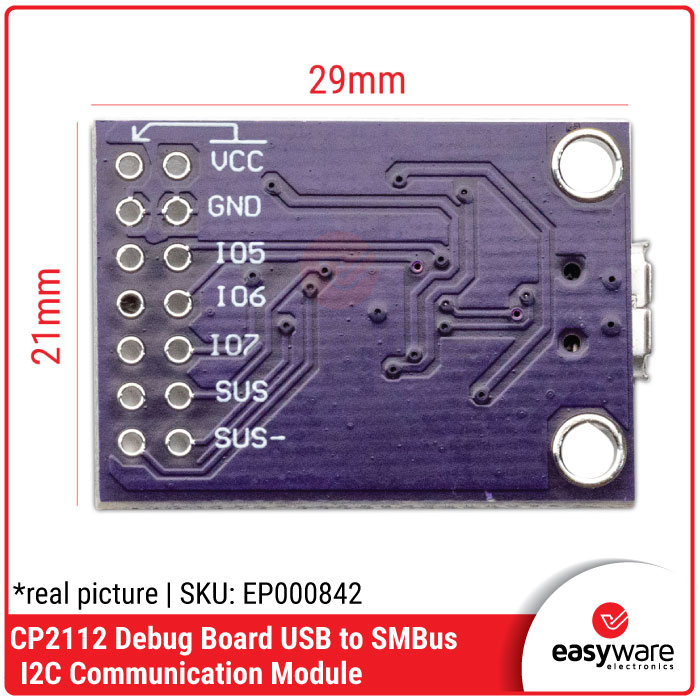

- Module size: 29.5mm*21.3mm, with two M3 mounting holes, one MicroUSB female port
- Application areas: Portable controllers, USB dongle, data logging

Kelengkapan:
- 1x CP2112 debug board USB to an I2C communication module

Gambar produk

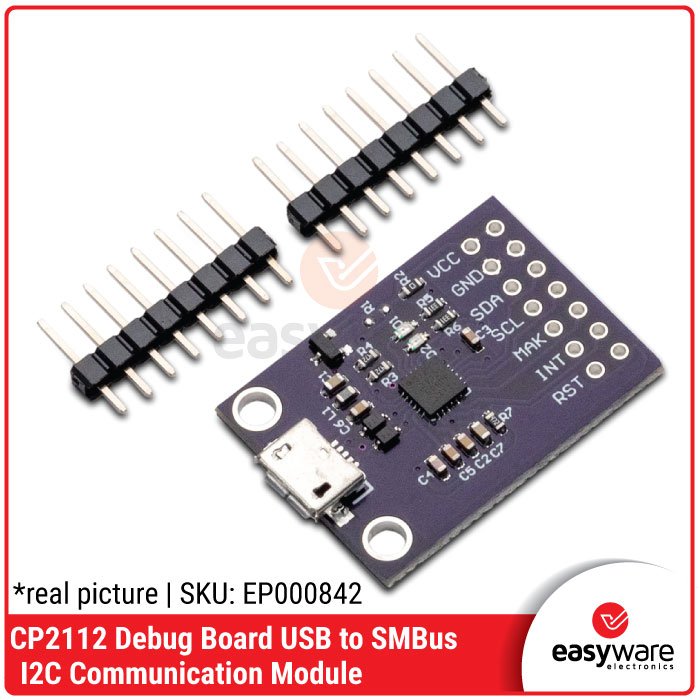

CP2112 Debug Board USB to SMBus I2C Communication Module
