Detail CP2102 USB 2.0 to TTL UART 5-pin Serial Converter

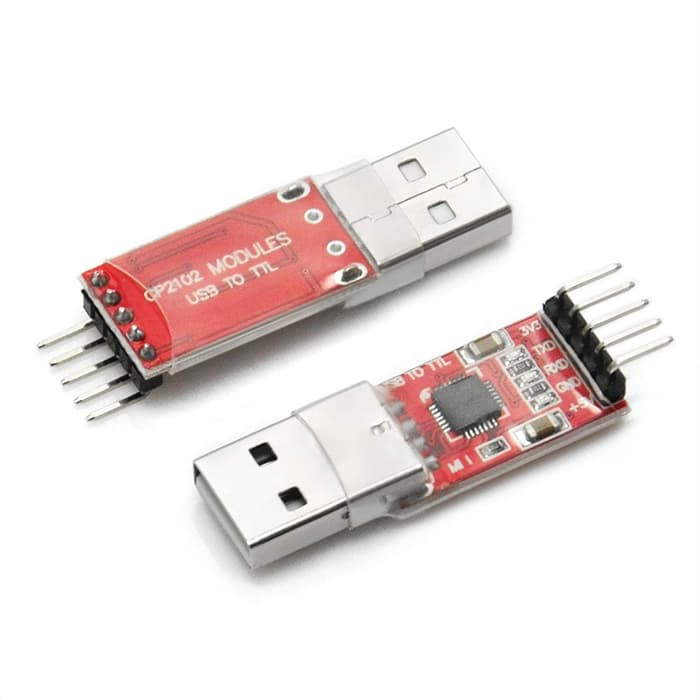

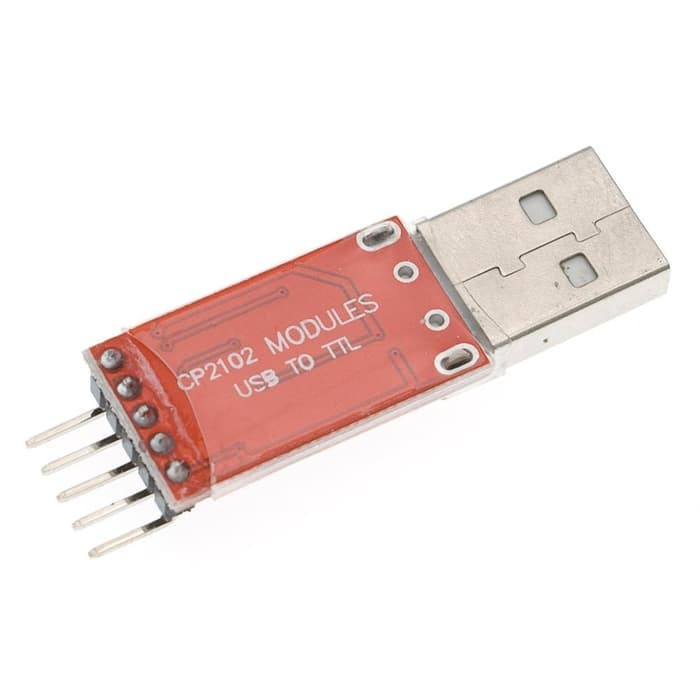

CP2102 USB 2.0 to TTL UART 5-pin Serial Converter
Stable and reliable chipset CP2102
USB specification 2.0 compliant with full-speed 12Mbps.
Standard USB type A male and TTL 5pin connector. 5pins for 3.3V,TXD,RXD,GND & 5V
All handshaking and modem interface signals
Baud rates: 300 bps to 1.5 Mbps.
Byte receive buffer; 640 byte transmit buffer.
Hardware or X-On/X-Off handshaking supported.
Event character support Line break transmission.
USB suspend states supported via SUSPEND pins.
Temperature Range: -40to +85
Supports Windows 98SE, 2003, XP, Vista, Window7, Mac OSX , Linux 2.6.x and 2.4.36
main colorRed

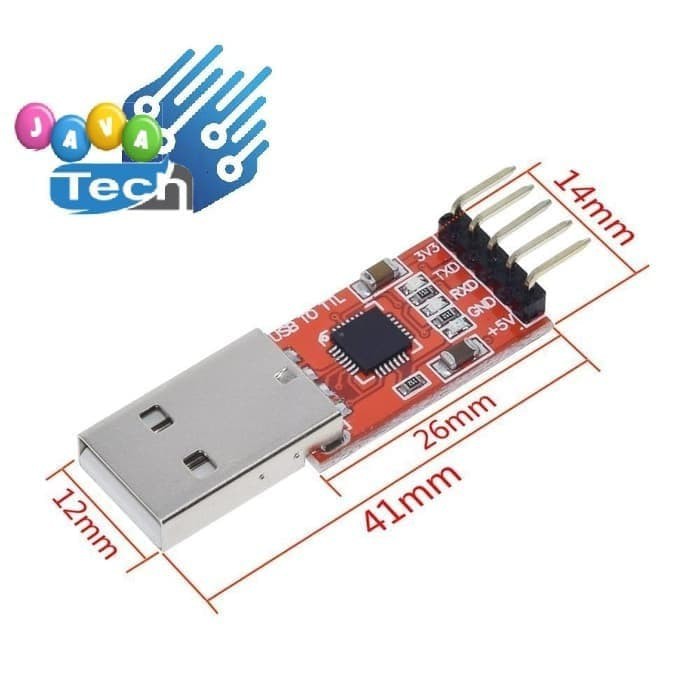

size about 45*14*8mm
