Cordless 2D Wireles Bluetooth 2.4G Panda Barcode Scanner With Display

Detail Cordless 2D Wireles Bluetooth 2.4G Panda Barcode Scanner With Display

Panda PRJ-BT528 RCS

● Read 1D and 2D code on screen and paper.
● Easy and fast to pairing and uploaded data via cradle.
● Ergonomics unique design, comfortable operating sense.
● Support charge in Cradle or type B cable.
● Super battery capacity is up to 2200mAh.
● Charge time is 4 hours and continuous scanning time is 24hours.
● Support double fifirmware upgrade online: wireless and decoder.
● Communication model: 2.4G, bluetooth and type B cable.
● Support offlfline storage mode, storage capacity up to 380000 characters.
● Communication distance(open air) : 2.4G:100meters,Blutooth: 40meters.
● Three LED indicator : Green(decoder light) Red(charge light), Blue(Connection success).

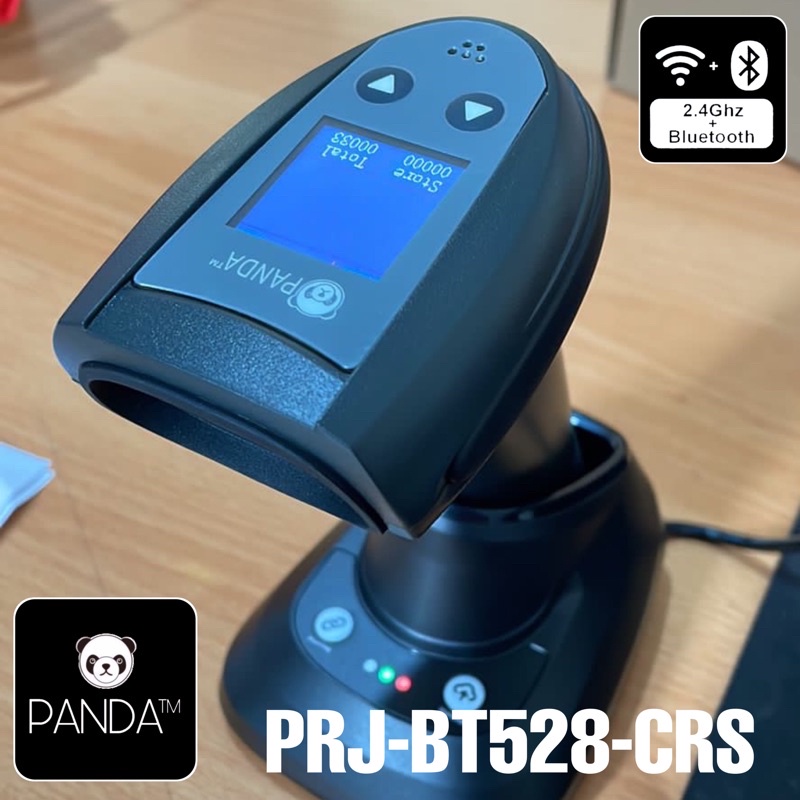

● Support screen display (1.44 inch color screen), real-time observation of battery power, communication status and each batch of bar code data. (optional)

Operation Parameter
Image Sensor : CMOS
Image (pixels) : 1280 pixels (h) * 800 pixels (V)
Light Source : Aiming ; 617 nm LED : Illumination:4000K LED
Frame Rate : 90 FPS
Depth of Field : 4mil code39 4 butes :30-120mm
13mil EAN-13 13 Bytes : 25-300mm
10mil PDF417 8 bytes: 5-280mm
10mil QR 8bytes : 15-180mm
Scan Angle : Elevation angle 65°/Tilt angle 30°/Declination 55°
Field Of View : 34° horizontal, 28° vertical
Scan Mode : Handhand (Manual) /Handfree (Automatic )
Firmware : Decoder update online
Minumin Resolution : ≥ 3mil (code39)
Print Contrast : ≥ 20%
Visual Indikator : Three LED indicator : Green(decoder light) Red(charge light), Blue(Connection
success).Buzzer , Motor vibration.
Interfaces : USB-TypeB, RS-232, 2.4G, blue BLE4.0(Optional) , Virtual serial Port
Transmision Range : 2.4G: 100meters, Bluetooth HID,BLE、SPP：:40meters (On open air)
Transmiisn Mode : USB-typeB Wired, 2.4G, Blue BLE4.0(Optional)
Memory Capacity : Up to 512000 bits (38000 EAN 13 code) or customize memory
Price Checker Function with display
