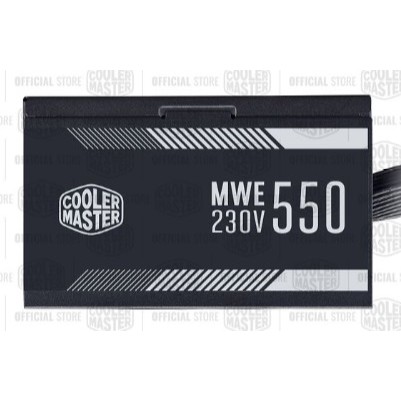

Cooler Master PSU MWE 550 White 230V - V2 [MPE-5501-ACABW-EU]

Detail Cooler Master PSU MWE 550 White 230V - V2 [MPE-5501-ACABW-EU]

Deskripsi Cooler Master PSU MWE 550 White 230V - V2 [MPE-5501-ACABW-EU]
Specification :
MODEL MPE-5501-ACABW
ATX VERSION ATX 12V Ver. 2.52
PFC Active PFC
INPUT VOLTAGE 200-240Vac
INPUT CURRENT 5A
INPUT FREQUENCY 50-60Hz
DIMENSIONS (L X W X H) 140 x 150 x 86 mm
FAN SIZE 120mm
FAN BEARING HDB
FAN SPEED 1500 RPM
NOISE LEVEL @ 20% 13.8 dBA
NOISE LEVEL @ 50% 18.4 dBA
NOISE LEVEL @ 100% 31.2 dBA
EFFICIENCY
85% Typically
80 PLUS RATING
80 PLUS Standard 230V EU
ERP 2014 LOT 3 Yes
OPERATING TEMPERATURE 40°C
POWER GOOD SIGNAL 100-500ms
HOLD UP TIME >14ms at 100% full load@230Vac
MTBF >100,000 Hours
PROTECTIONS OVP, OPP, SCP, UVP, OTP
REGULATORY CCC, CE, TUV-RH, EAC, RCM, cTUVus, FCC, BSMI, KC, CB
ATX 24-PIN CONNECTORS 1
EPS 4+4 PIN CONNECTORS 1
SATA CONNECTORS 6
PERIPHERAL 4-PIN CONNECTORS 3
PCI-E 6+2 PIN CONNECTORS 2
80 PLUS Standard
MODULAR Non Modular
WATTAGE 500 to 750W
SERIE MWE White Series

Gambar produk
