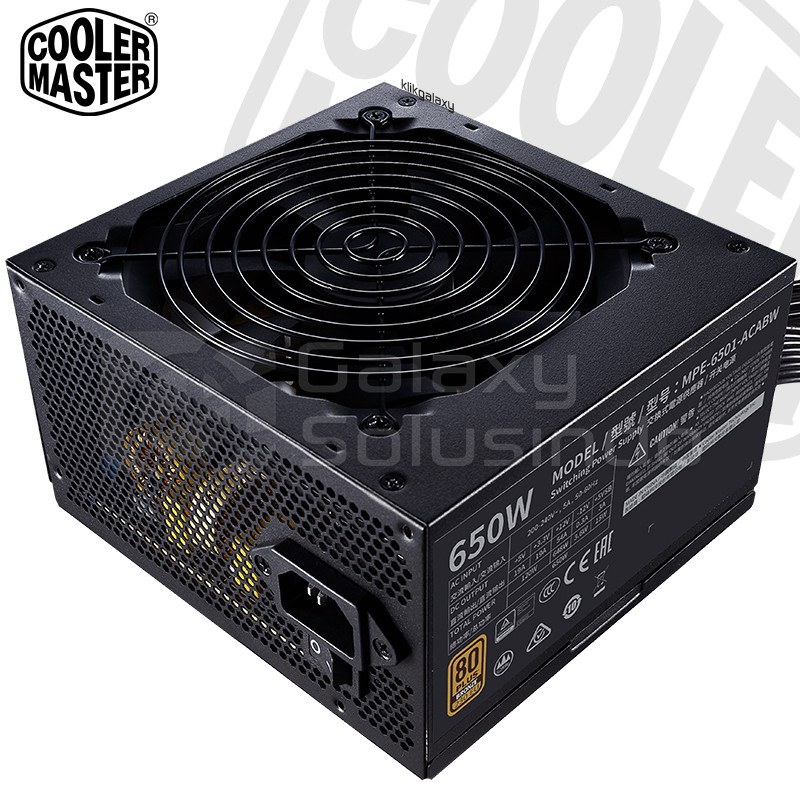

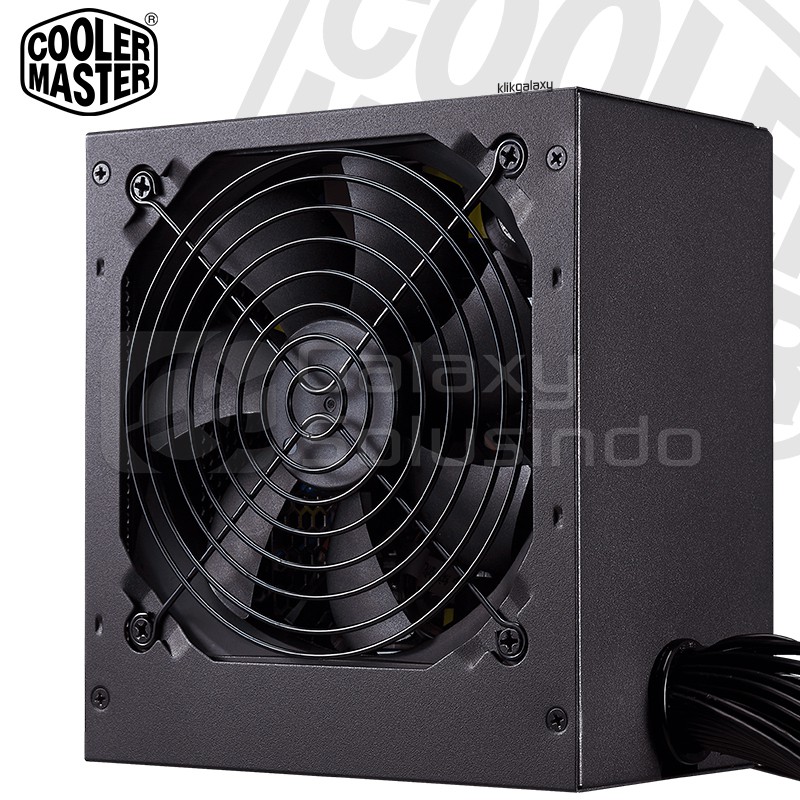

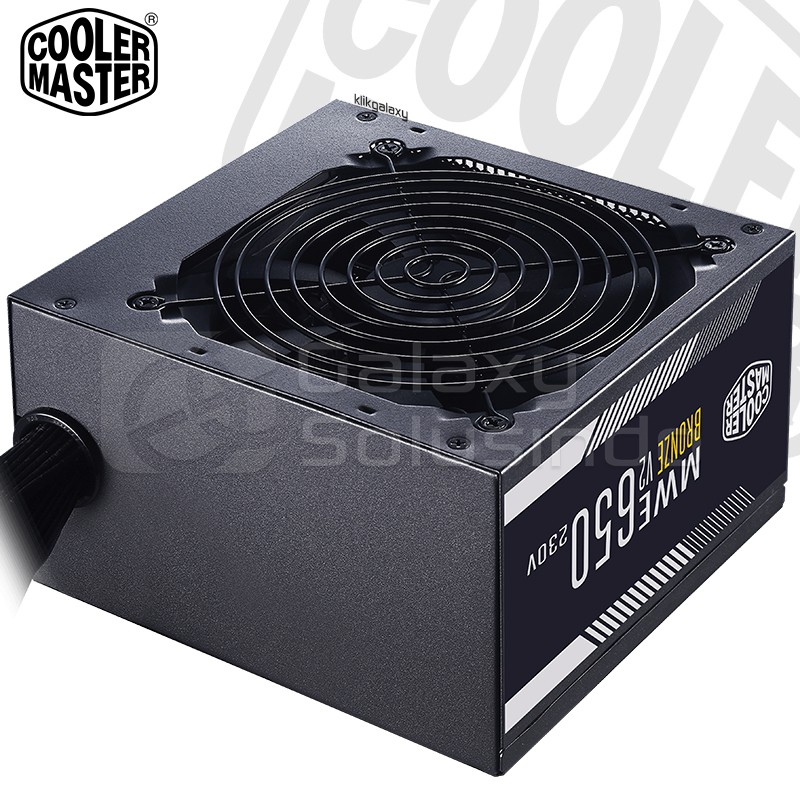

Cooler Master MWE 650 650Watt V2 230V 80+ 80 PLUS Bronze

Detail Cooler Master MWE 650 650Watt V2 230V 80+ 80 PLUS Bronze

MWE 650 Bronze - V2 230V
80 Plus Bronze Certified 230V Power Supply Unit

DC-to-DC + LLC Circuit Design
High Temperature Resistance
Peak Power Tolerance
80 PLUS Bronze 230V EU Certified
Durable, Reliable, and Safe
5 Year Warranty

Specification :

Model
MPE-6501-ACABW-B
ATX Version
ATX 12V V2.52
PFC
Active PFC
Input Voltage
200-240Vac
Input Current
10-5A
Input Frequency
50-60Hz
Dimensions (L x W x H)
140 x 150 x 86 mm
Fan Size
120mm
Fan Bearing
HDB
Fan Speed
2400 RPM
Noise Level @ 20%
16.54 dBA
Noise Level @ 50%
26.5 dBA
Noise Level @ 100%
42.5 dBA
Efficiency
88% Typically
80 PLUS Rating
80 PLUS Bronze EU 230V
ErP 2014 Lot 3
Yes
Power Good Signal
100 - 500 ms
Hold Up Time
>18ms at 100% Full Load@230Vac
MTBF
>100,000 Hours
Protections
OVP, OPP, SCP, UVP, OTP
Regulatory
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
ATX 24-Pin Connectors
1
EPS 4+4 Pin Connectors
1
EPS 8 Pin Connector
1
SATA Connectors
6
Peripheral 4-Pin Connectors
3
PCI-e 6+2 Pin Connectors
4
Series
MWE Bronze Series
80 Plus
Bronze
Modular
Non Modular
Wattage
500 to 750W
