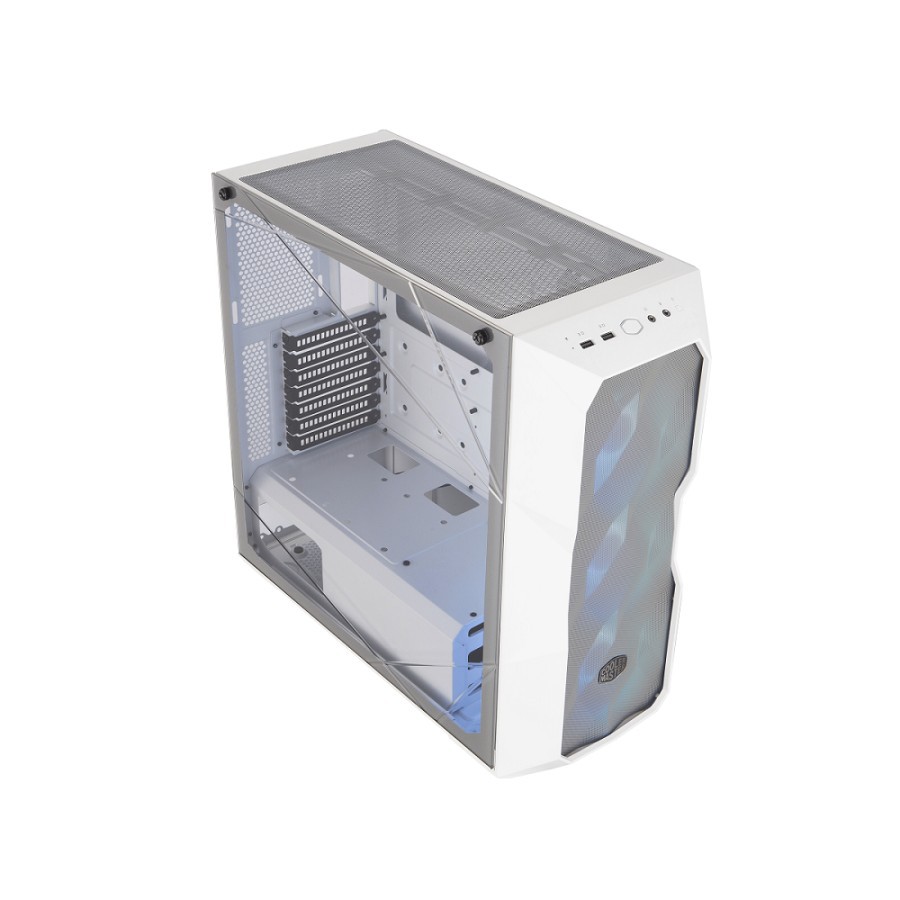

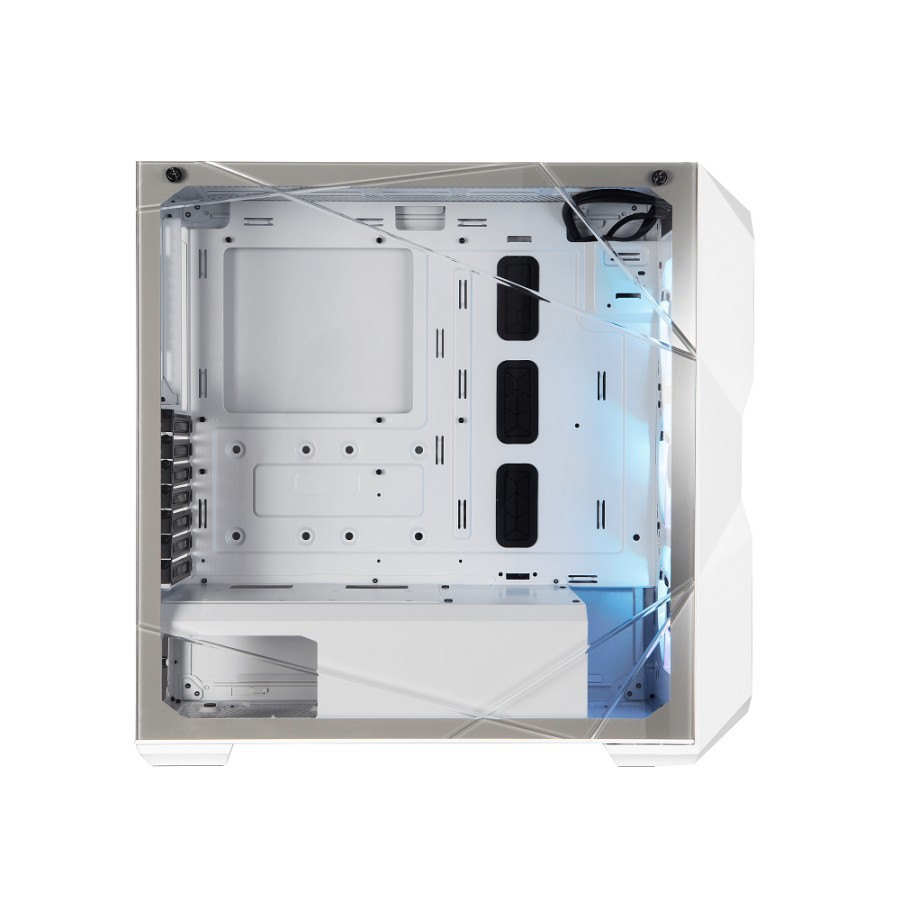

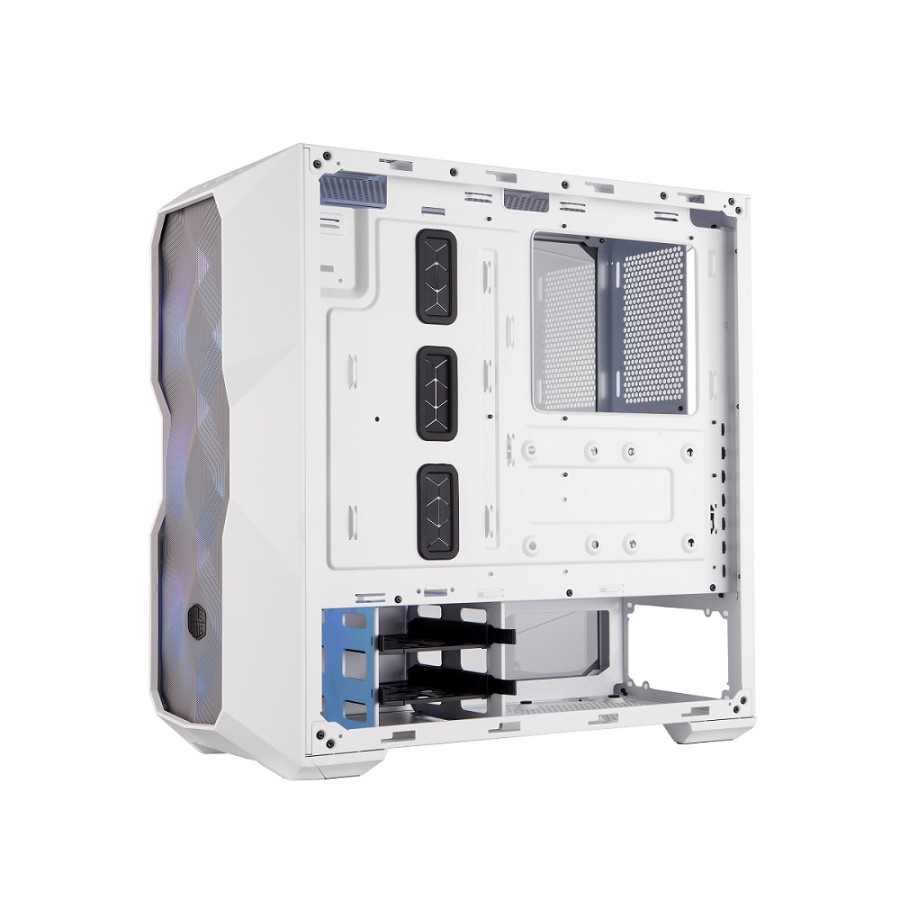

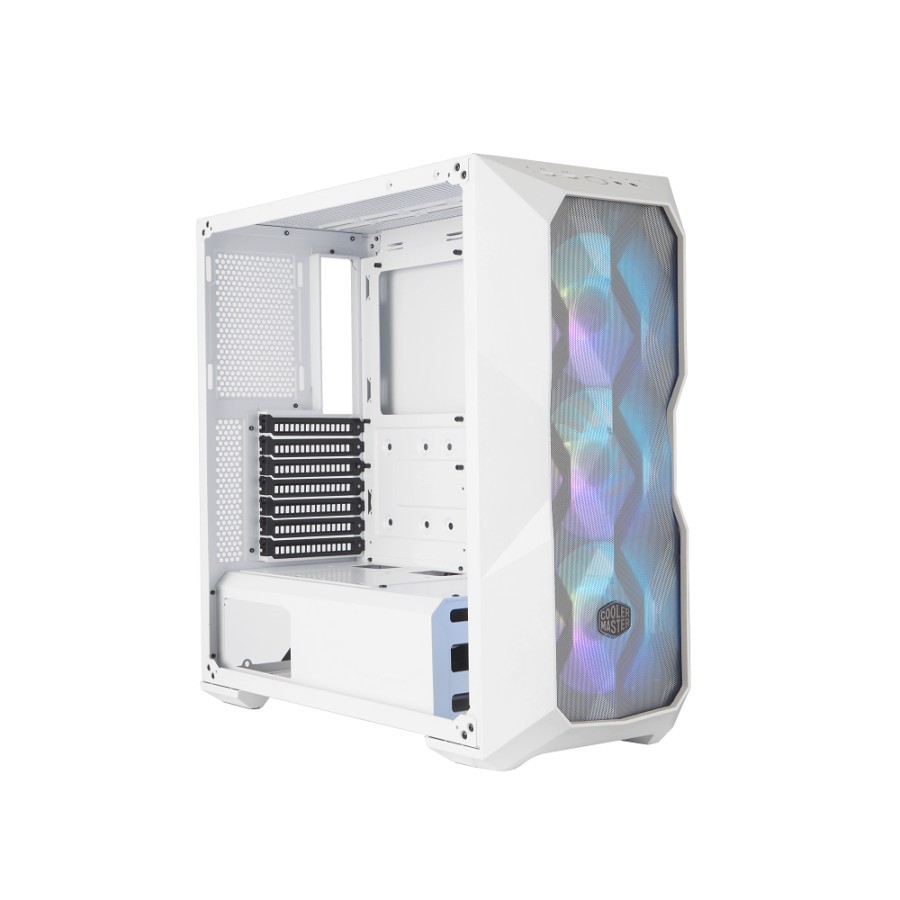

Cooler Master MasterBox TD500 Mesh White [MCB-D500D-WGNN-S01]

Detail Cooler Master MasterBox TD500 Mesh White [MCB-D500D-WGNN-S01]

MODEL NUMBER MCB-D500D-WGNN-S01
SERIES MasterBox Series
SIZE Mid Tower
AVAILABLE COLOR(S) Black, White
MATERIALS Steel, Plastic, Tempered Glass, Mesh
DIMENSIONS (L X W X H) 493 x 217 x 469mm (incl. Protrusions), 429.5 x 205x 447mm (excl. Protrusions)
WEIGHT 6.95 kg
MOTHERBOARD SUPPORT Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12" x 10.7", will limit cable management features)
EXPANSION SLOTS 7
5.25" DRIVE BAYS N/A
2.5" / 3.5" DRIVE BAYS (COMBO) 2
2.5" DRIVE BAYS 4 (2+2 combo)
I/O PANEL 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller (only for the S01 versions), 1x ARGB 2-to-3 splitter
PRE-INSTALLED FANS - TOP N/A
PRE-INSTALLED FANS - FRONT 3x 120mm ARGB Fans
PRE-INSTALLED FANS - REAR N/A
FAN SUPPORT - TOP 3x 120mm, 2x 140mm
FAN SUPPORT - FRONT 3x 120mm, 2x 140mm
FAN SUPPORT - REAR 1x 120mm
RADIATOR SUPPORT - TOP 120mm, 240mm, 360mm, (44mm max motherboard component height)
RADIATOR SUPPORT - FRONT 120mm, 140mm, 240mm, 280mm, 360mm
RADIATOR SUPPORT - REAR 120mm
CLEARANCE - CPU COOLER 165mm/6.49"
CLEARANCE - PSU 180mm/7.08", 295mm/11.61" (w/ HDD cage removed)
CLEARANCE - GFX 410mm/16.1"
CABLE ROUTING 19mm/0.74"
DUST FILTERS Top, Bottom, Front
POWER SUPPLY SUPPORT Bottom mount, ATX
WARRANTY 2 years
